4.3.1 DRV_1
Quick jog/slow jog driving profile
Preset 1 for traction and lifting drives

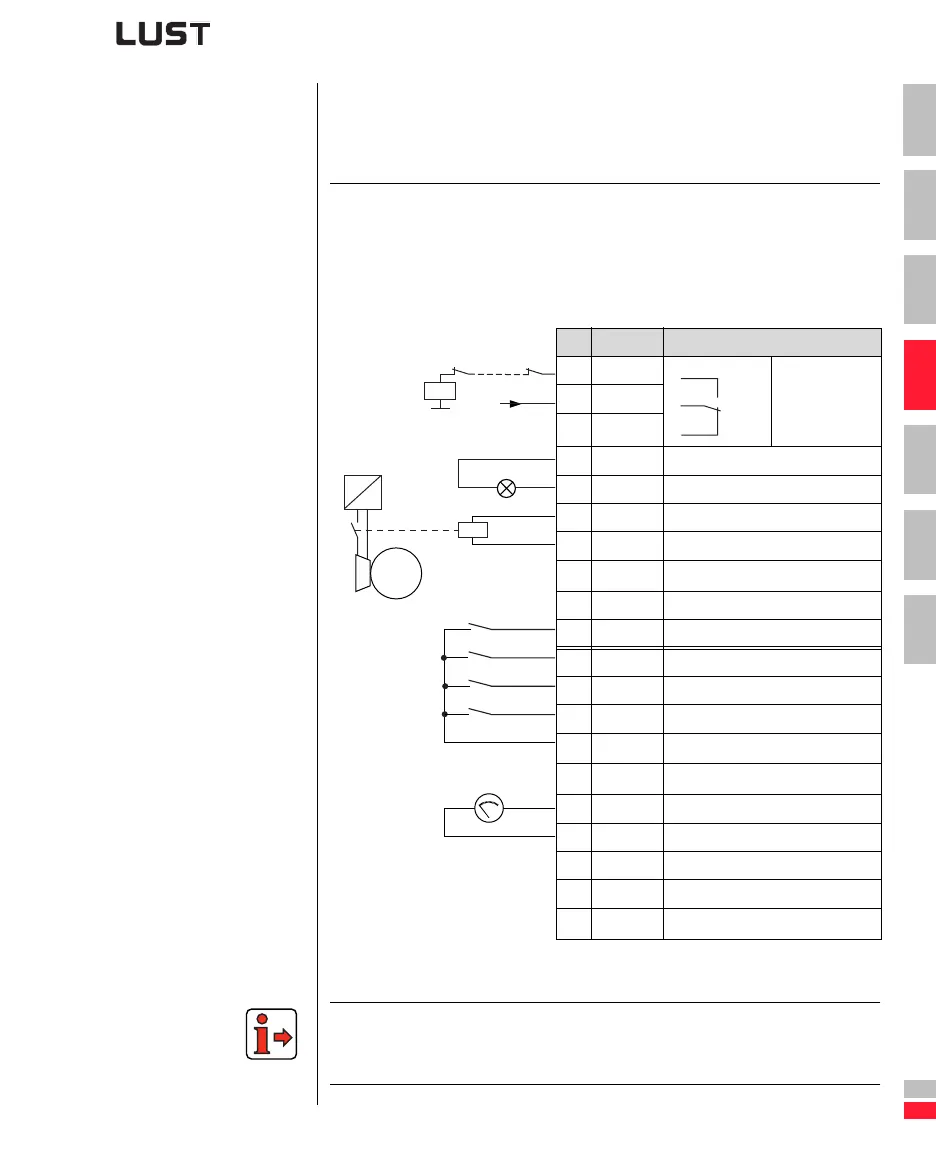

Figure 4.2 Control terminal assignment with ASTER = DRV_1
The parameter presets for application data sets DRV_x are located as
parameter comparison references in section 4.3.6 “Comparison of para-
meters, traction and lifting drive”.
Function Application
• Clock drive with time-optimized
quick jog driving profile or
• Quick jog/slow jog driving profile
• Conveyor belt
• Trolley drive
• Rack drive
• Spindle drive etc.
X2 Des. Function
20 OSD02/14
Relay contact
for “Ready”
message
19 OSD02/11
18 OSD02/12
17 DGND Digital ground
16 OSD01 “Reference reached” message
15 OSD00 Output for motor holding brake
14 DGND Digital ground
13
U
V
Auxiliary voltage 24 V
12 ISD03 Not assigned
11 ISD02 Selection of slow jog
10 ISD01 Start/Stop quick jog anti-clockwise
9 ISD00 Start/Stop quick jog clockwise
8 ENPO Power stage hardware enable
7
U
V
Auxiliary voltage 24 V
6
U
V
Auxiliary voltage 24 V
5 OSA00 Actual frequency 0 ... FMAX
4 AGND Analog ground
3 ISA01 Not assigned
2 ISA00 Not assigned
1
U
R
Reference voltage 10V, 10mA
M
3~
~
-
K1
H1
ENPO
S1
STL
STR
N1
-
+
