Application Manual CDA3000
5-85
5 Software functions
1
2
3
4
5
6
A
DE
EN
FR
5.3.10_51ER-Error
messages

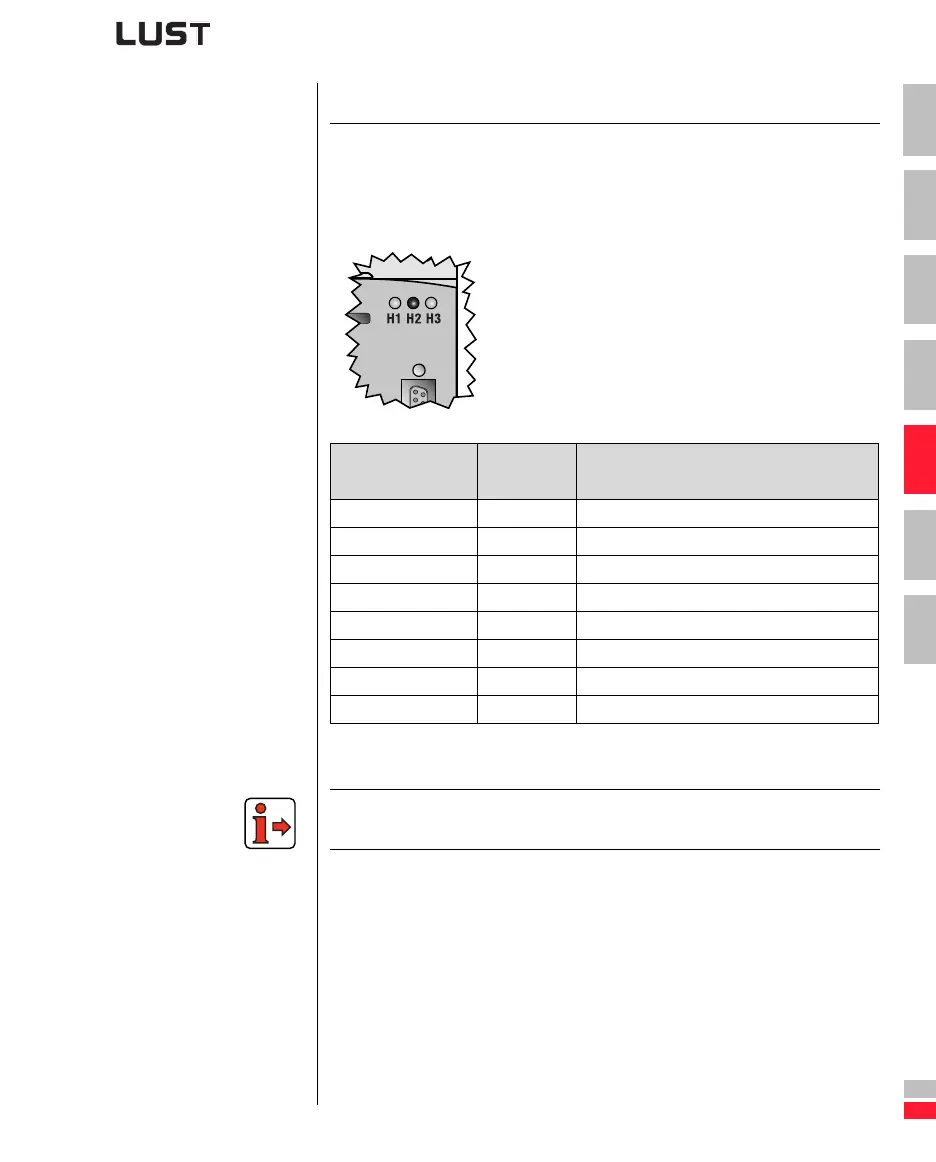

Error messages can be detected and evaluated by
way of the status LEDs of the inverter module. If
theredLEDH1isflashinganerrorhasoccurred.
Theresponsetoanerrorcanbeparameterized
accordingtothecauseoftheerror.
Note: For more error numbers and possible causes refer to the
appendix.
Function Effect
• Display of faults in the drive
system
• Quick location of the cause
of the error and definition of
the response of the drive to
an error
Flash code of
red LED (H1)
KEYPAD
display
Error cause
1x E-CPU CPU errors and other rare errors
2x E-OFF Undervoltage shut-off
3x E-OC Current overload shut-off
4x E-OV Voltage overload shut-off
5x E-OLM Motor overloaded
6x E_OLI Device overloaded
7x E-OTM Motor temperature too high
8x E-OTI Heat sink/device temperature too high
Table 5.49 Error messages
