4-26
Application Manual CDA3000
4 Application data sets
4.4 Rotational drive Loading one of the application data sets ROT_1 to ROT_3 into the RAM
by setting parameter 152-ASTER causes the inverter module automati-
cally to adopt the preset of the software functions as well as all inputs and
outputs for the “rotational drive” application.
Active functions in the preset
Function
152-Aster =
ROT_1
ROT_2
ROT_3
Table sets with fixed
frequencies and ramps
Speed input
-10 to +10 V
Speed correction
0 to 10 V
Speed change via
button
(MOP function)
User data set
switchover
Encoder evaluation
(necessary for control
mode FOR)

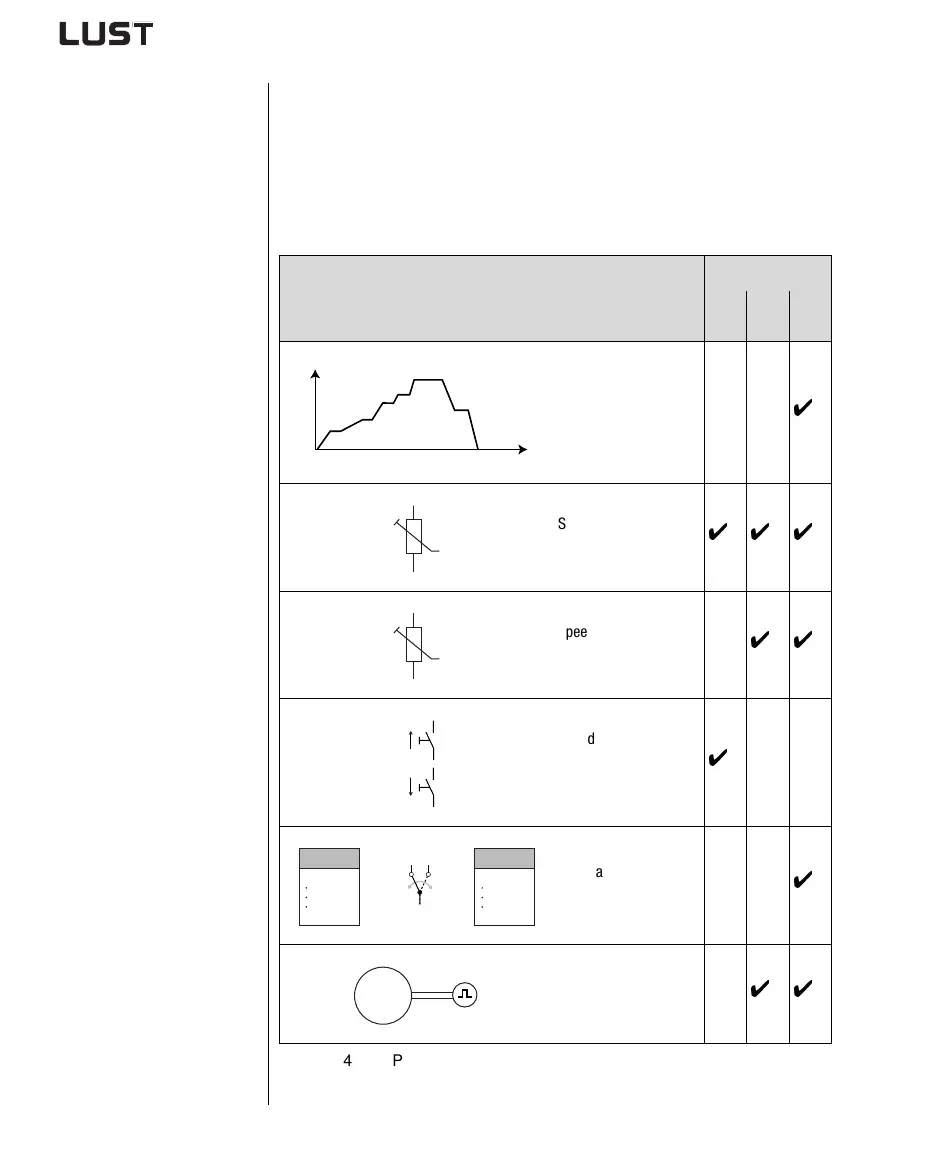

Table 4.14 Presets: Rotational drives
v
t
n
n
001 MODE
999 xyz
1
001 MODE
999 xyz
2
M
3~
