Application Manual CDA3000
6 Control modes

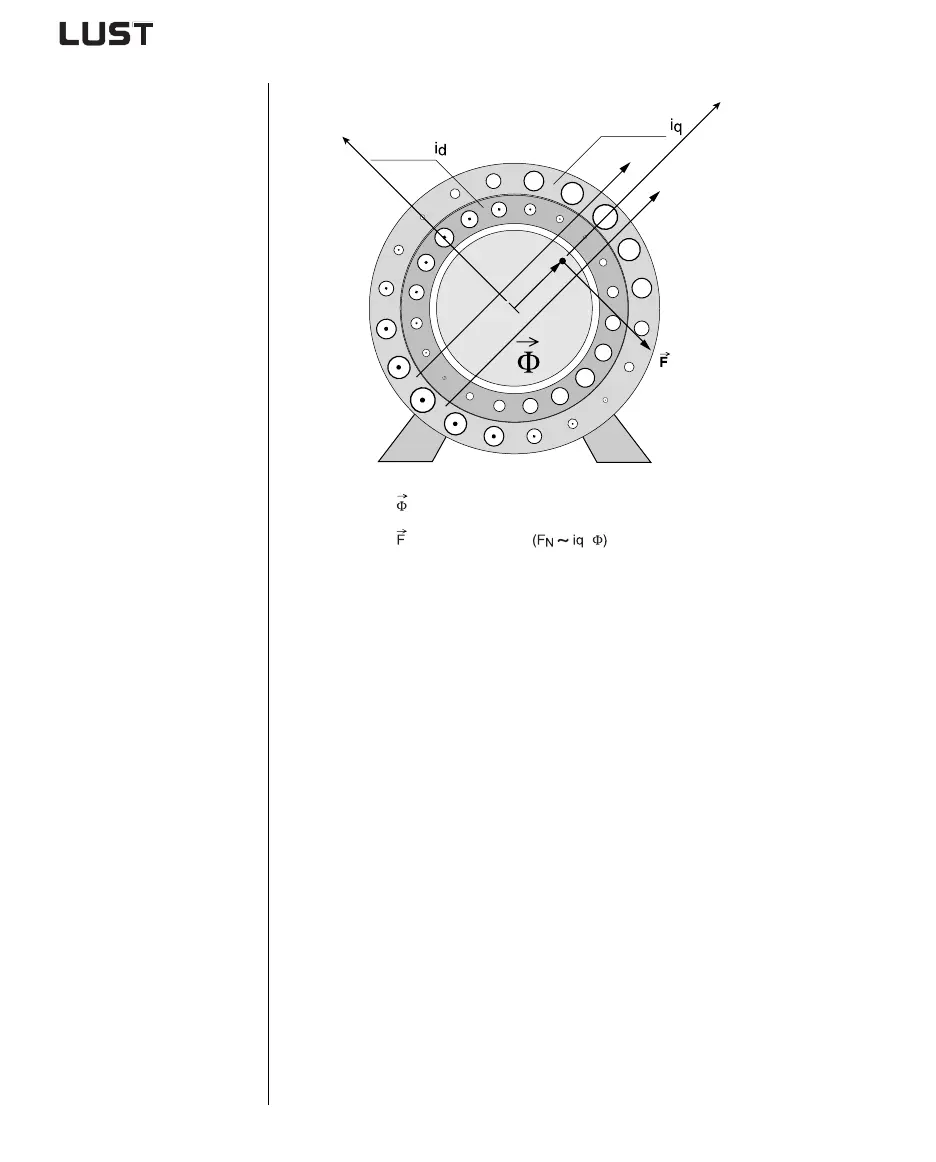

Figure 6.15 Principle of function of the asynchronous motor
Software functions
In Sensorless Flux Control mode (SFC) not all functions of the inverter
module are required. The following functions can be selected, but they do
not activate.
Inactive functions in SFC
• Current injection
• IxR load compensation
• Slip compensation
r
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
.
d-current
q-current
q-axis
d-axis
Magnetic flux as vector
Force as vector
