Lynx NGT-9000 Pilot's Guide

Lynx
®
NGT-9000
Pilot’s Guide1-2
Description
FUNCTIONAL DESCRIPTION
The panel mount versions of the Lynx NGT-9000 can display and
control the following information:
• Built-In Test and Operational Status
• Transponder Functions
• Trafc and Weather Output Interfaces
• Diversity (optional, model specic)
• ADS-B System
• Trafc Display
• TAS (optional, model specic)
• ATAS (Release 2.0 and greater, optional)
• Weather Displays (enable/disable)
• Graphical Weather
• Winds and Temps Aloft
• Textual Weather Reports
• TAWS, Class B (Release 2.0 and greater, optional)
• Terrain Awareness without Alerting (Release 2.1 and greater,
optional)
• Lightning Detection (Release 2.1 and greater, optional. Panel
mount version only)
The remote mount versions of the Lynx NGT-9000 provides the
same functionality as the panel mount, but is controlled using a CP-
2500 Control Panel (or compatible control panel) and cannot control
lightning detection or display TAWS information (callouts and lights
only). Display information is shown on a optional compatible display
or PED. See Figure 1-2.
The unit has multiple transmit/receive ARINC429, RS-422 and RS-232
data ports used to transmit data to trafc, weather, and PED displays.
The unit provides the transponder code, reply symbol, and mode of
operation to the display.

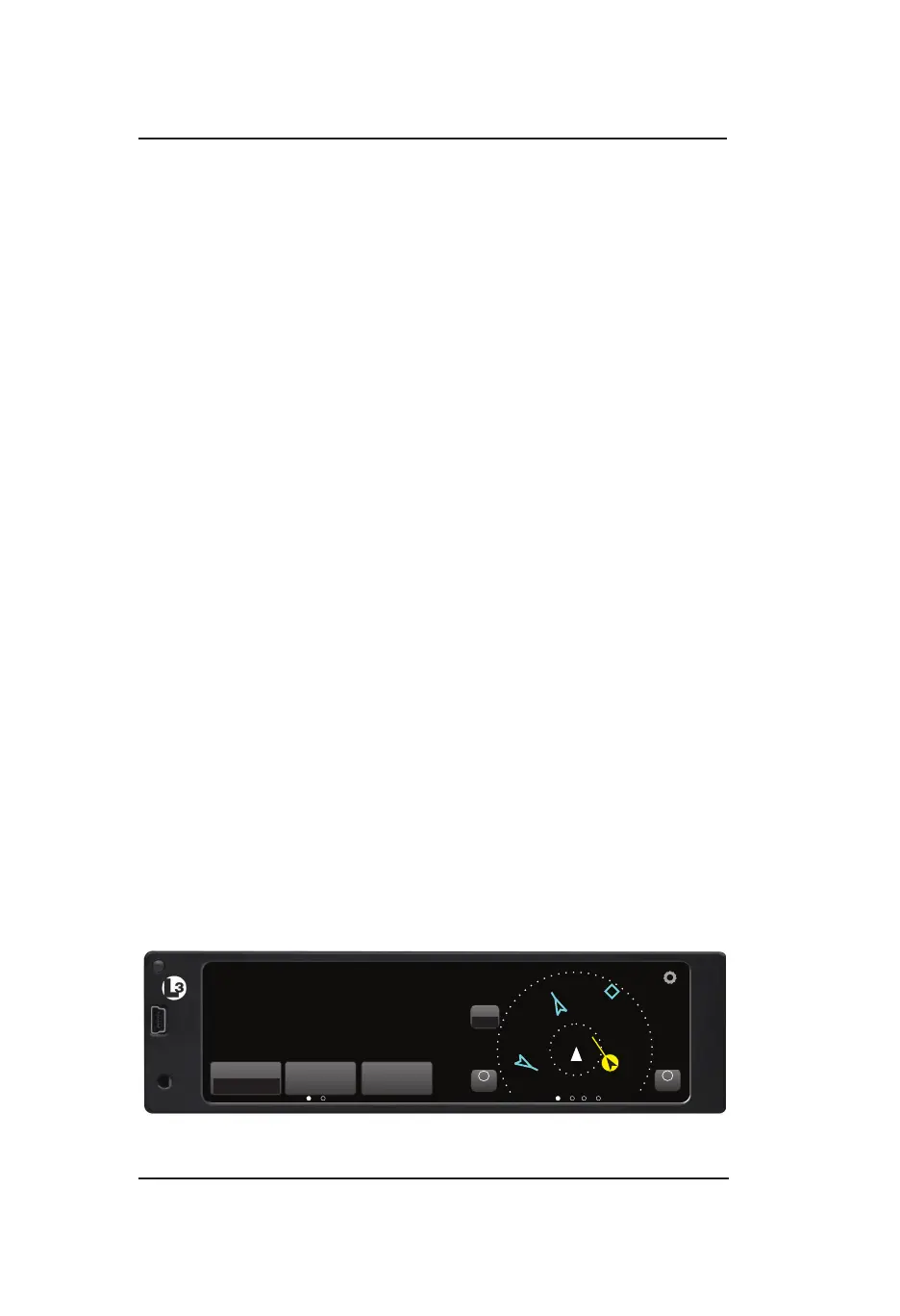

Figure 1-1: Example of Panel Mount Lynx NGT-9000
1200
PA LT
120 00ft
ID
IDENT
Mode
ALT
N333TL
-
6
ALT
NRM
-01
-08
OUT
+
IN
00
00
Squawk
VFR
