Operation - Panel Mount
Traffic Information Window
The window is shown over the trafc screen and provides the following
data and functionality:
• Flight ID of the selected aircraft.
• Emitter Category or “type” of aircraft.
• An aircraft Icon is located on the right side of the window showing
a representation of the aircraft being tracked. If there is no aircraft
icon available then:
• Release 2.0 or earlier: A “?” is shown.
• Release 2.1 or greater: A text indication of the source of the
trafc is shown (TIS-B, TAS, ADS-R, or ADS-B).
• Calculated ground speed of the selected aircraft.
• A Display GS Latch button is used to activate the selected Trafc
GS on the trafc screen.
• Tap the Done button to close the window. The window is also
removed from the screen if a Trafc Advisory or TAWS Alert is
detected.
• See Figure 2-11 for an example of the Trafc Information Window.

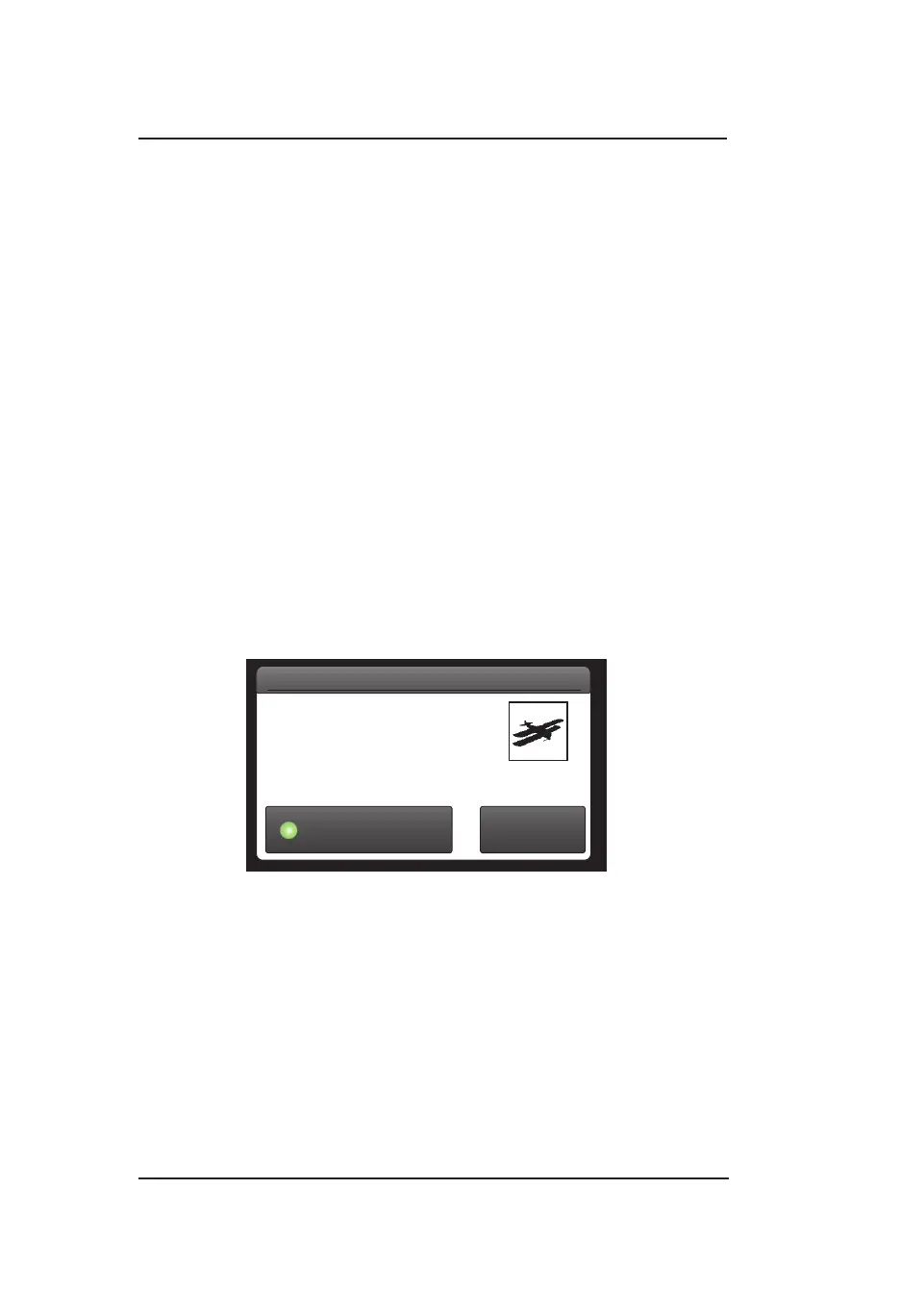

Figure 2-11: Example of Traffic Information Window
Display GS
Done
Information
FLT ID: N123CD
Type: Small
GS: 105kts
Selected Traffic ID
The Selected Trafc ID is located along the right side of the trafc
screens after a trafc symbol is pressed. The Trafc ID is removed
when the selected trafc symbol is tapped, a Trafc Advisory (TA)
occurs, or if the selected trafc is no longer being tracked. The Trafc
ID is restored to the screen if the Trafc Advisory is no longer present
and if no other user action (i.e., selecting a different trafc symbol,
tapping a button, or changing the zoom range) has occurred since the
Trafc Advisory occurred. See Figure 2-8.
