Lynx NGT-9000 Pilot's Guide

Lynx
®
NGT-9000
Pilot’s Guide 2-67
Operation - Panel Mount

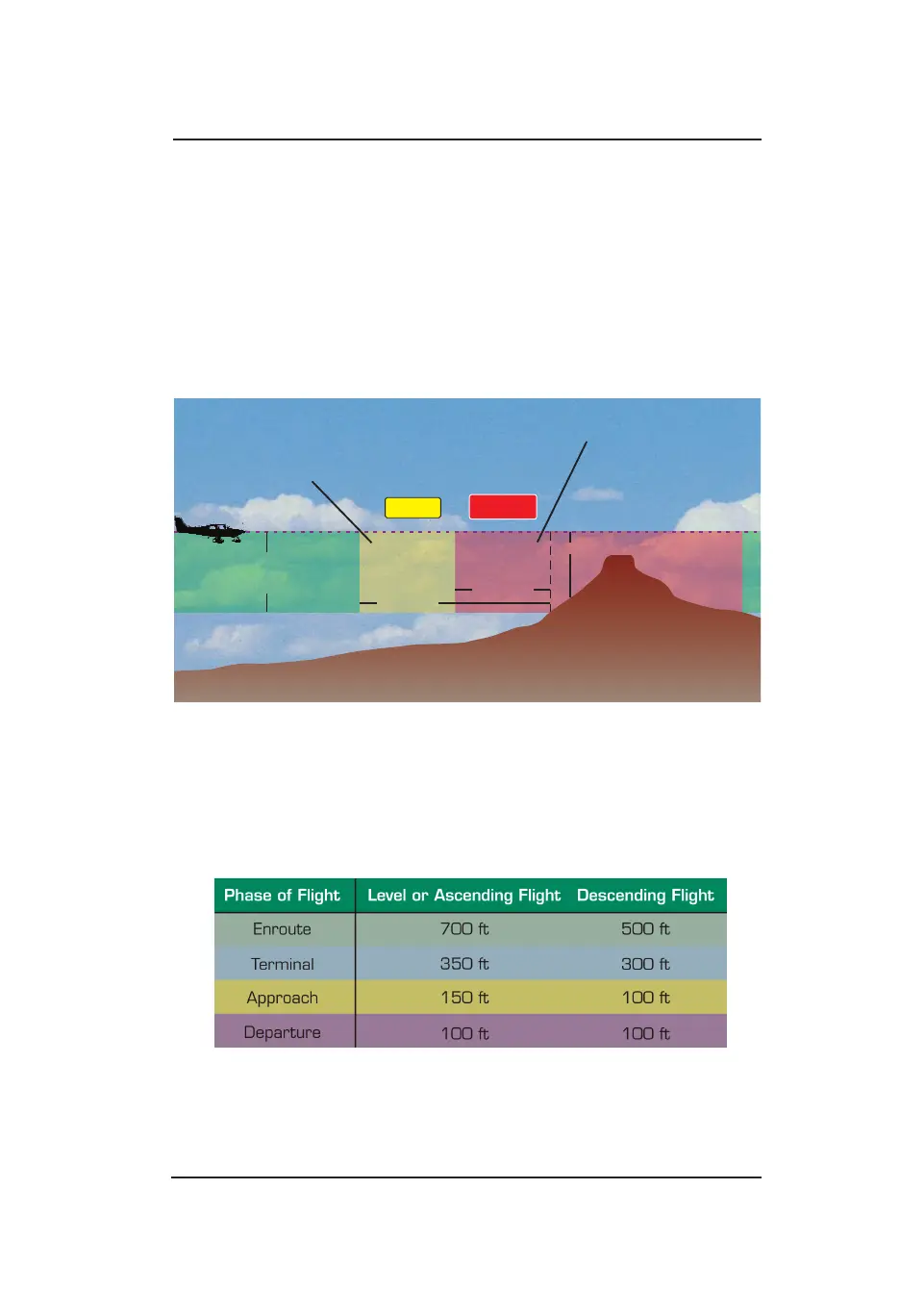

Figure 2-32: Reduced RTC Alert Condition
Table 2-9: Required Terrain Clearances for the
Reduced RTC Alert Condition
Reduced Required Terrain Clearance (RTC)
The reduced RTC alert condition (Figure 2-32) occurs when the
aircraft is currently above the altitude of the upcoming terrain along
the projected ight path, but the projected terrain clearance is less
than the required terrain clearance (Table 2-9).
The TAWS function issues a caution alert 60 seconds before the
offending terrain and a warning alert 30 seconds before the offending
terrain.
Caution
Alert
“Caution, terrain; caution, terrain!”*
“Terrain, terrain; pull up, pull up!”*
60 sec
30 sec
Warning
Alert
Required Terrain
Clearance
Projected Terrain Clearance
TERRAIN
PULL UP
