Lynx NGT-9000 - FIS-B Graphic Winds & Temp Application; Figure 2-20: Product Pick List Window; Figure 2-21: Aloft Map Screen; Traffic Button

Lynx
®
NGT-9000
Pilot’s Guide 2-49
Operation - Panel Mount
Figure 2-20: Product Pick List Window
FIS-B Graphic Winds & Temp Application
The Graphical Winds and Temperature Application is available on the
right screen and is located in the third screen position (4th screen
position when TAWS installed, Release 2.0 or greater) as indicated
by the Application Indicator. This application screen displays graphical
wind and temperature aloft information obtained from FIS-B products.
The aloft map orientation is shown as north up. See Figure 2-21.
Trafc Button
This button is located on the far left side of the screen and is labeled
“TFC” with a left facing triangle. Tap the button to return to the Trafc
Application screen.

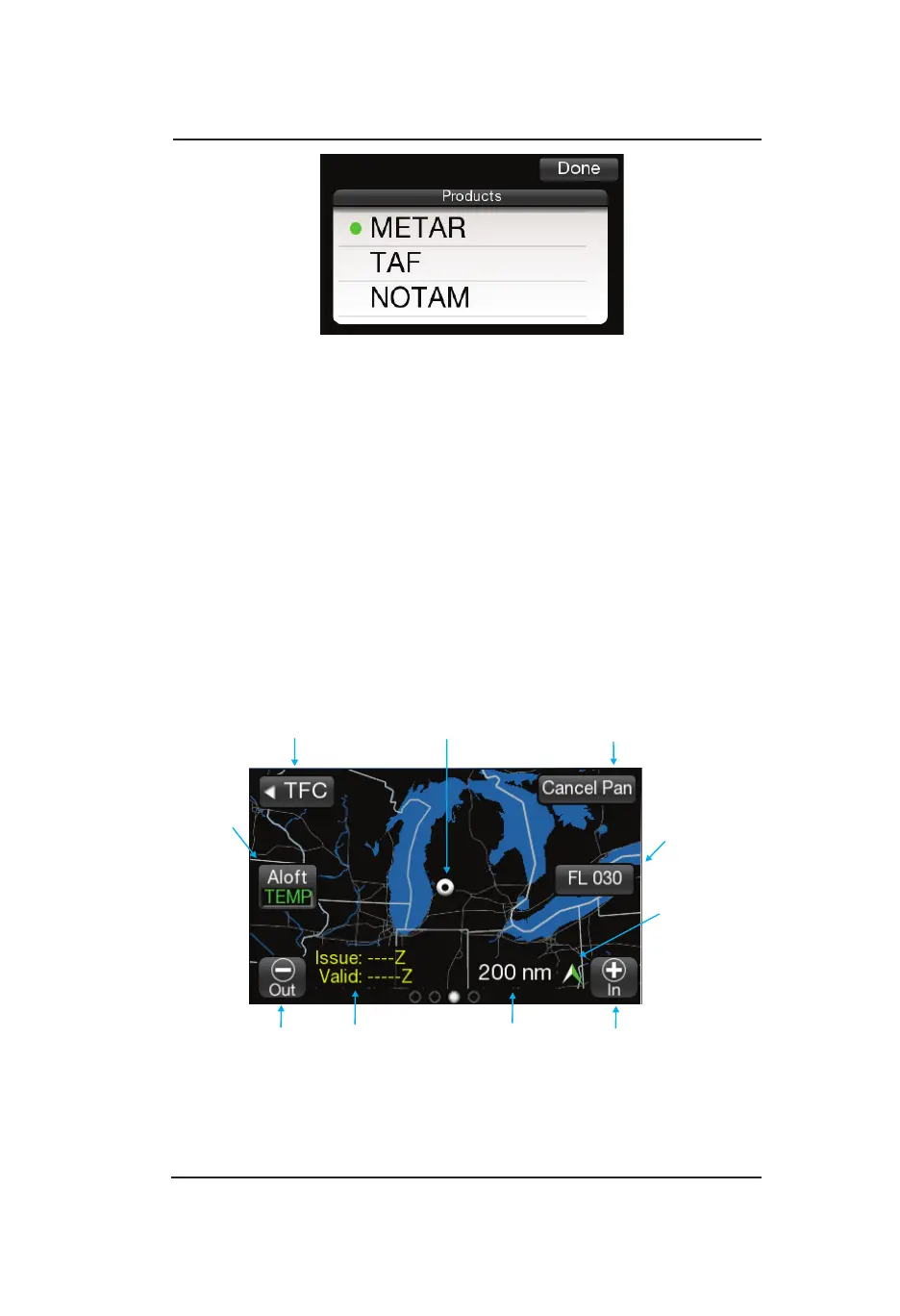

Figure 2-21: Aloft Map Screen
Ownship Symbol
Traffic Button
Zoom
In
Cancel Pan Button
Zoom
Out
Display Range
Indicator
Flight Level
Selection
North
Indicator
Time
Stamp
Aloft
Button
