Lynx NGT-9000 Pilot's Guide

Lynx
®
NGT-9000
Pilot’s Guide 2-17
Operation - Panel Mount

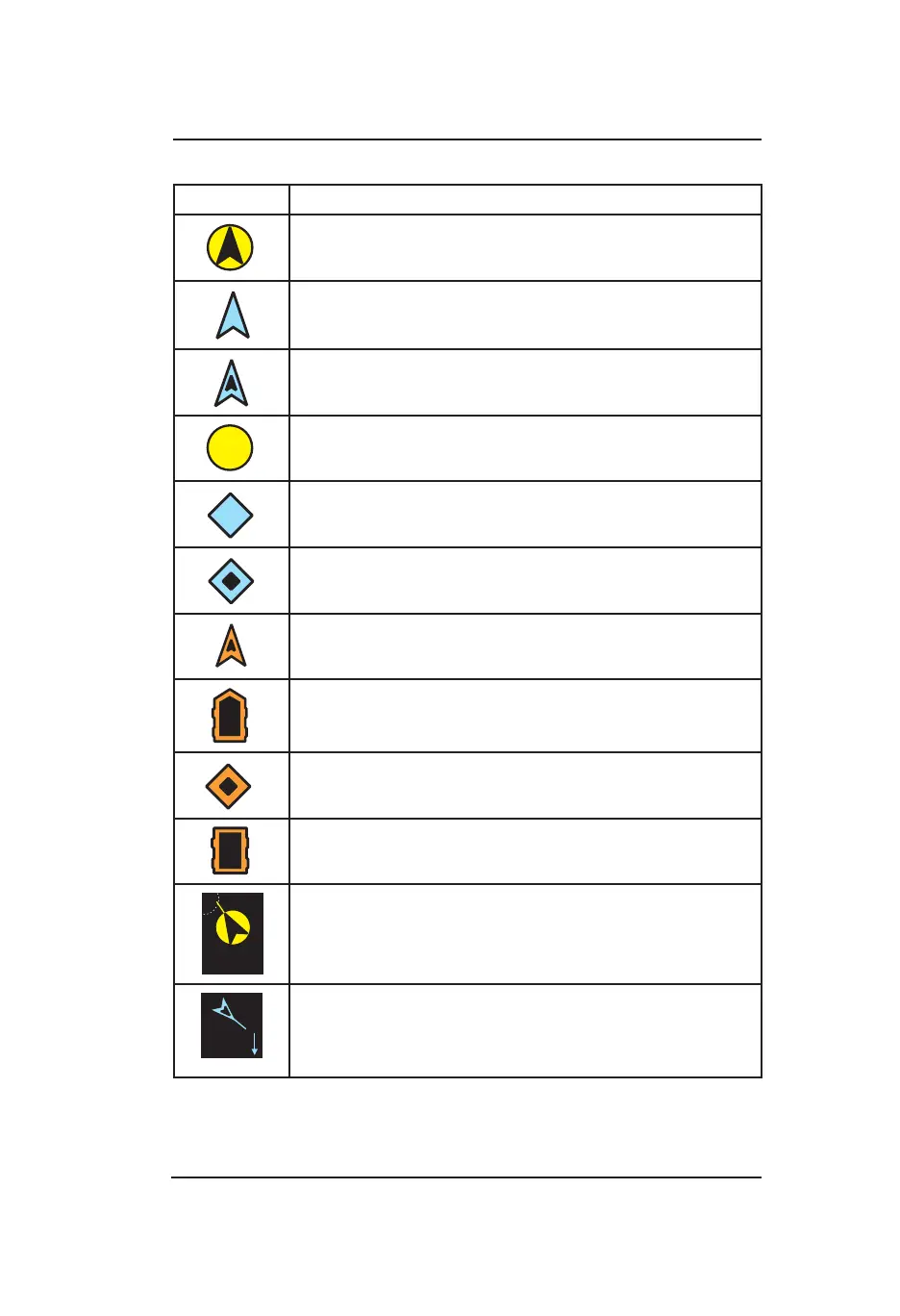

Table 2-2: Traffic Symbols
SYMBOL DESCRIPTION - EXAMPLE
Airborne Directional Trafc Advisory (TA)
(TAS or ATAS option only)
Airborne Directional Proximity Advisory (PA) *
Airborne Directional Other Trafc (OT) *
(Panel mount only)
Airborne Non-directional (TA)
(TAS or ATAS option only)
Airborne Non-directional (PA) *
Airborne Non-directional (OT) *
On Ground Directional (OT)
Ground Vehicle Directional
On Ground Non-directional (OT)
Ground Vehicle Non-directional
-01
Airborne Directional TA Trafc symbol with a data
tag indicating a relative altitude of 100ft below with a
horizontal velocity vector. (Panel mount only)
-08
Airborne Directional Other Trafc symbol with a data
tag indicating a relative altitude of 800ft below own
aircraft descending with a horizontal velocity vector.
(Panel mount only)
* To promote cockpit commonality, installation conguration options
are available to set the airborne PA & OT trafc color to either cyan
or white.
