Description

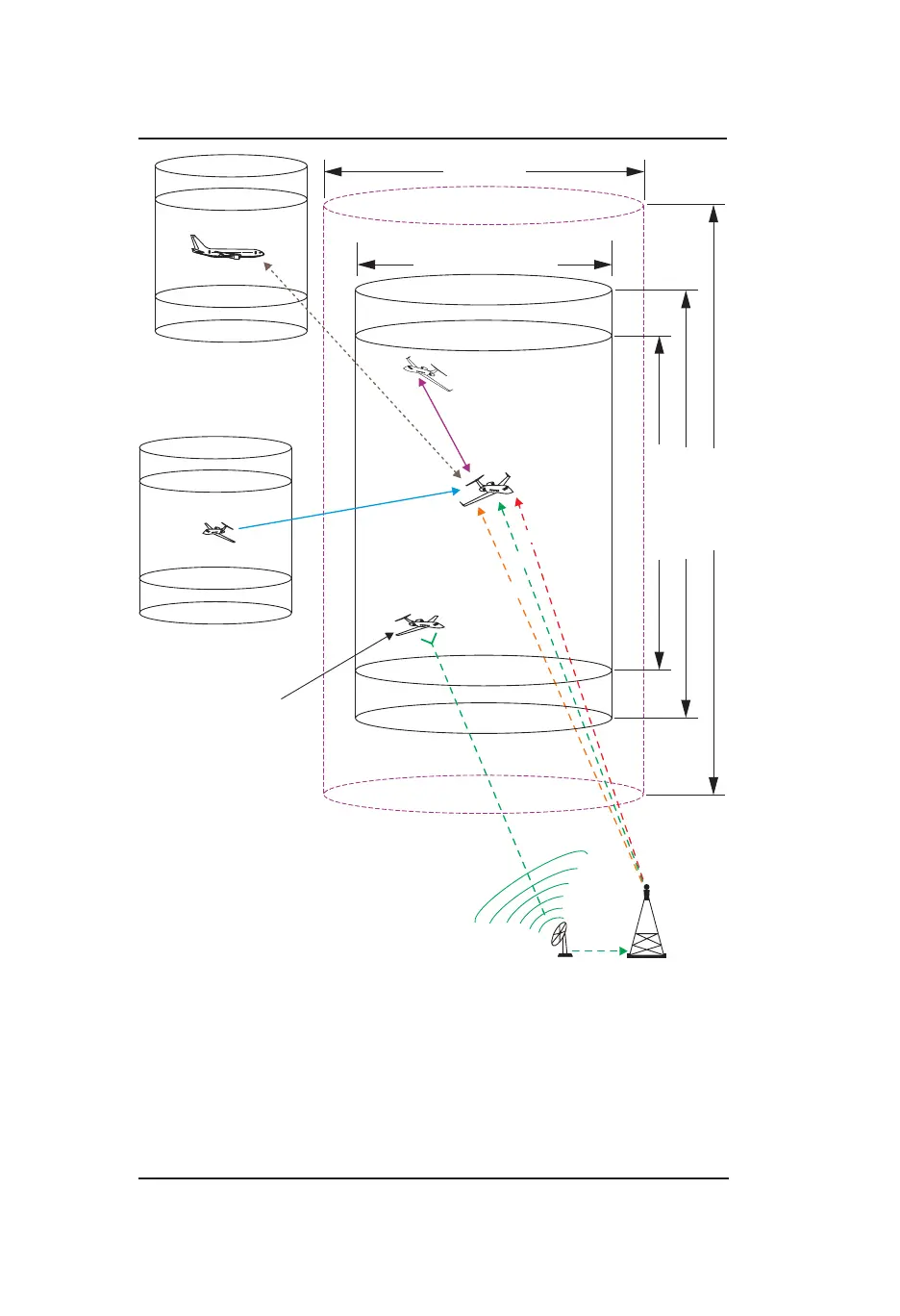

Figure 1-3:
Example of Own Aircraft U
A
T
, 1090ES, and
T
AS
T
raffic
70 nm
()
TA
S
+/- 10000 (T
AS)
+/- 3500 ft (TIS-B)
Own
Aircraft
UA
T
/
1090ES
TA
S
(model
option)
+/- 5000 (ADS-R)
30 nm
(/
)
TIS-B
ADS-R
AT
C-
Ground
Station
Other
Aircraft
UA
T
Non-Equipped
Mode
A/C
Equipped
TIS-B
Other
Aircraft
UA
T
FIS-B
TIS-B
Other
Aircraft
TA
S
Other
Aircraft
1090ES
ADS-R
19
21
Table of Contents
Default Chapter
5
Table of Contents
5
Chapter 1: Description
15
Introduction
15
Table 1-1: Model Options
15
Functional Description
16
Figure 1-1: Example of Panel Mount Lynx NGT-9000
16
ADS-B System
17
Figure 1-2: Example of Remote Mount Lynx NGT-9000
17
Transponder
17
Transponder Diversity Options
17
ADS-B Traffic Advisory System (ATAS)
18
Traffic Advisory System (TAS)
18
Traffic Display
18
Built-In Test and Operational Status
19
Terrain Awareness and Warning System (TAWS)
19
Traffic and Weather Output Interfaces
19
Weather Display
19
Figure 1-3: Example of Own Aircraft UAT, 1090ES, and TAS Traffic
20
Equipment Description
21
Required Equipment
21
Optional Equipment
21
GPS Antenna and Internal GPS Receiver
21
L-Band Antenna
21
Detachable Configuration Module (DCM)
21
Directional Antenna
22
Alternate Displays
22
Personal Electronic Device (PED)
22
Wifi Serial Adapter
22
CP-2500 Control Panel
22
Chapter 2: Operation - Panel Mount
23
Introduction
23
Pilot Advisory
23
Power on
24
Splash Screen
24
Figure 2-1: Example of Splash Screen
24
System Status / Versions Screen
25
Flight ID Screen (Optional)
26
Normal Operation
26
Figure 2-3: Example of Flight ID Screen
26
Figure 2-4: Example of Normal Operation
26
Basic Operation
27
Screen Buttons
27
Table 2-1: Button Functions
27
Application Screens
29
Transponder Operation
31
Squawk Code
31
Figure 2-5 Transponder Application Screen
31
Current Pressure Altitude
32
Flight ID / Call Sign
32
Mode Control
32
Transponder Reply
32
IDENT Button
32
Squawk VFR Button
33
MSG Button
33
ON-GND Indicator
33
System Test Button
33
Figure 2-6: Squawk Code Edit Screen
33
Figure 2-7: Example of System Test Screen
34
Traffic Operation
35
Limitations
35
Traffic Advisory
35
Traffic Screen
36
Figure 2-8: Traffic Applications Screen
36
Ownship Symbol
37
Traffic Symbols
37
Table 2-2: Traffic Symbols
39
Traffic Display Priority
40
Traffic Altitude Mode
40
Zoom Buttons
41
Range Rings
41
TFC Button
41
Transponder Banner
42
Traffic Mode Indicator
42
MSG Button
42
Traffic Options Button
42
Figure 2-9: Traffic Options Screen - Status
43
Options - Status
43
Traffic Options Screen
43
Options - Settings
44
Acknowledge Button
45
Selected Traffic Info Button (I)
45
TIS-B no Coverage Indicator
45
Figure 2-10: Traffic Options Screen - Settings
45
Traffic Information Window
46
Selected Traffic ID
46
Figure 2-11: Example of Traffic Information Window
46
Selected Traffic GS
47
True Track (TRK)
47
Aural Announcements
47
Extended Audio Callouts
48
Audio Inhibit
48
Details on Traffic Operation
49
Automatic Dependent Surveillance - Broadcast (ADS-B)
49
Automatic Dependent Surveillance - Re-Broadcast (ADS-R)
50
Traffic Information Service - Broadcast (TIS-B)
51
Traffic Advisory Systems
52
ADS-B Traffic Advisory System (ATAS)
52
Traffic Advisory System (TAS)
53
Sensitivity Level a
54
Sensitivity Level B
54
TAS Sensitivity Levels
54
Table 2-3: TAS Traffic Advisory Situations
55
Figure 2-12: Traffic Display Mode and TAS Traffic Zone Graphic
56
Interference Limiting
57
Other Aircraft Ground Filtering
57
Weather Operation
58
Details on Flight Information Service - Broadcast (FIS-B)
58
Table 2-4: Description of FIS-B Available Information
59
FIS-B no Coverage Indicator
61
Figure 2-13: FIS Button
61
FIS-B Graphical Weather Application
62
Figure 2-14: Weather Map
62
Map Elements
62
AIRMET and SIGMET Map Elements
63
Information Button (I)
63
TFR Map Elements
63
Table 2-5: Airport Symbols
64
CONUS Map Elements
65
Figure 2-15: Example of NEXRAD Weather Map
65
Metar
65
NEXRAD Map Elements
65
Airport ID Indicator
66
Display Range Indicator
66
North Indicator
66
Orientation Button
66
Panning
66
Traffic Button
66
Zoom Buttons
66
Banner
67
Figure 2-16: On/Off Options Screen
67
Map Options Button
67
On/Off Option Screen
67
Weather Map Legend Screen
67
Figure 2-17: Weather Map Legend Screen
68
Declutter Option Screen
69
Display Area
69
Figure 2-18: Declutter Option Screen
69
Weather Map Text Screen
69
Banner
70
Display Area
70
Figure 2-19: Weather Map Text Screen
70
Product Select List Window
70
FIS-B Graphic Winds & Temp Application
71
Figure 2-20: Product Pick List Window
71
Figure 2-21: Aloft Map Screen
71
Traffic Button
71
Figure 2-22: Winds Aloft Map Elements
72
Aloft Button
73
Flight Level Selection
73
Issue Valid Time Indication
73
North Indicator
73
Ownship Symbol
73
Panning
73
Zoom Buttons
73
FIS-B Textual Application
74
Display Area
74
Banner
74
Figure 2-23: FIS-B Textual Application
74
Traffic Button
74
Airport Button
75
Edit Airport ID Window
75
Figure 2-24 Example of Edit Airport ID Window
75
Favorites Button
76
Favorites Pick List Window
76
Figure 2-25: Example of Favorites Window
76
Figure 2-26 Example of Product Pick List Window
77
Product Button
77
Product Pick List Window
77
TAWS Operation
78
Figure 2-27: TAWS Screen
78
Defining Terrain Alerts
79
Limitations
79
Traffic Button
79
Zoom Buttons
79
AGL Altitude Readout
80
Aural Acknowledge Button
80
Display Orientation Indicator
80
Display Range Indicator
80
Obstacle Symbols
81
Ownship Symbol
81
Airport Symbols
82
Airport Symbol Operation
82
Table 2-6 Terrain Color Scheme
83
TAWS Terrain Color Legend
83
Information Button (I)
84
Figure 2-28: TAWS Airport Text Screen
84
TAWS Airport Text Screen
84
Figure 2-29: TAWS Options Screen
85
TAWS Display Alerts
85
TAWS Options Button
85
TAWS Options Screen
85
TAWS Audio Alerts
86
500 Ft Altitude Callout
86
Table 2-7: TAWS Display Alerts
86
Conditions to Trigger Alerts or Callouts
87
Table 2-8: Caution & Warning Alert Phrases
87
Figure 2-30: Forward Looking Terrain Avoidance (FLTA)
88
Figure 2-31: Phase of Flight Definitions
88
Forward Looking Terrain Avoidance (FLTA)
88
Figure 2-32: Reduced RTC Alert Condition
89
Reduced Required Terrain Clearance (RTC)
89
Table 2-9: Required Terrain Clearances for the Reduced RTC Alert Condition
89
Figure 2-33: ITI Alert Condition
90
Imminent Terrain Impact (ITI)
90
Table 2-10: Required Terrain Clearances for the ITI Alert Condition
90
Figure 2-34: Premature Descent Alert Condition
91
Premature Descent
91
Excessive Descent Rate
92
Figure 2-35: Excessive Descent Rate Alert Condition
92
Figure 2-36: Excessive Descent Rate Graph
92
Ground Proximity Warning System (GPWS) Alerting
92
Figure 2-37: Negative Climb Rate or
93
Negative Climb Rate or Altitude Loss after Takeoff
93
Altitude Loss after Takeoff Alert Condition
93
Figure 2-38 Negative Climb Rate Graph
94
Figure 2-39: Altitude Loss after Takeoff Graph
94
Altitude of 500 Ft
95
Figure 2-40: Altitude of 500 Feet Callout Condition
95
Lightning Operation
96
Traffic Button
96
Figure 2-41: Lightning Screen 360 View
96
Ownship Symbol
97
Zoom Buttons
97
360 View
97
Figure 2-42: Lightning Screen 120 View
97
Mode Button
98
Clear Button
98
Table 2-11: Lightning Symbols
98
Lightning Option Button
99
Figure 2-43: Lightning Setting Page
99
Lightning Settings (View Mode, Stabilization, Status)
99
Heading Stabilization
100
Strike Rate Indicator
100
Strike Rate Trend Arrow
100
Heading Indicator
100
Application Indicator / Nearby Strike
100
Maintenance Mode
101
Chapter 3: Operation - Remote Mount
103
Introduction
103
Power on
103
CP-2500 Control Panel
104
Power off
105
Enter the Squawk Code
105
Set Operational Mode
105
Figure 3-1: Example of CP-2500
105
View Pressure Altitude
106
Set Flight ID
106
IDENT Activation
106
VFR Code Select
106
Set VFR Code
107
View Info
107
Traffic Advisory Aural Acknowledge and Reply
107
Enable on Ground TAS Operation
108
TAWS Alert Aural Acknowledge
108
Inhibit TAWS Alert Message
108
Inhibit TAWS Obstacles
109
Messages
109
Display Messages
110
Chapter 4: Controls and Indicators
113
Introduction
113
Cockpit Switches
113
Ident
113
Audio Acknowledge
113
Indicator Lamps
114
Traffic Advisory
114
TAWS Caution
114
TAWS Warning
114
ADS-B out Fail
114
Alternate Displays
115
Traffic Display
115
Indicators
116
Off-Scale Traffic Advisory (TA)
116
Other Traffic Symbol
116
Ownship Symbol
116
Proximity Advisory Symbol
116
Weather Display
117
Wifi Interface
117
Compatible Control Panel
117
Chapter 5: Troubleshooting
119
Introduction
119
General Display Conditions
119
Table 5-1: General Display Conditions for the Panel Mount Lynx NGT-9000
119
Troubleshooting
120
System Status Messages
122
Appendix A
123
Record of Important Information
123
