Lynx
®
NGT-9000
Pilot’s Guide 2-77
Operation - Panel Mount
Lightning Options Button
The gear shaped Options Button is located in the upper right corner
of the right application screen. Tap the button to open the Lighting
Setting page. Refer to Figure 2-43.
Lightning Settings (View Mode, Stabilization, Status)
The Settings page is active when “Settings” label is green. The page
shows the WX-500 software information, WX-500 Status information,
current display View and Stab (stabilization) status.
• The View Mode toggle button can be set for either 120 or 360
degrees.
• The Stab Mode toggle button can be set for either On or Off.
When set to “On” the position of the electrical discharge points
on the display are automatically adjusted as the aircraft changes
heading. Stab should always be “On” except for system without a
heading source or if heading is invalid.
It is recommended that Stabilization be set to “Off” if heading is
invalid and remain off until heading input is corrected. When set
to Off the heading indicator is not displayed and a “STAB OFF”
message is shown on the screen.
• Along with the software information the status of the WX-500
is indicated as “OK”in white text, “Degraded” in amber text, or
“Failed” in red text. If degraded or failed is shown a fault code
and description is shown. Multiple codes will rotate one at a
time for 3 second periods. A list of error messages and fault
information is provided in the WX-500 User’s Guide (009-11501-
001).
Press the Done button to return to the lightning application screen.
Note - The Tests page is used for installation of the WX-500 and
should be ignored.

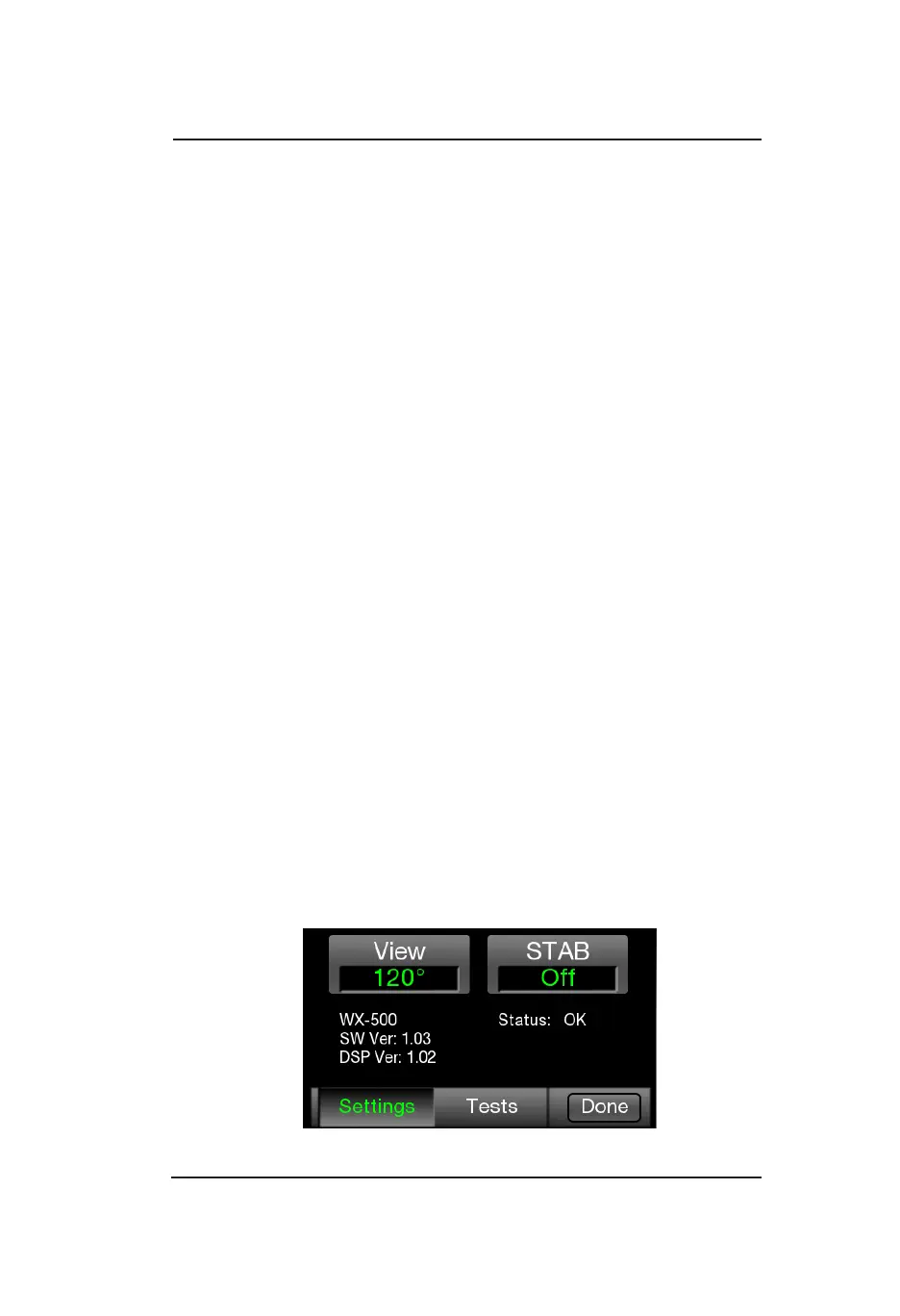

Figure 2-43: Lightning Setting Page
