Pilot’s Guide2-40
Operation - Panel Mount

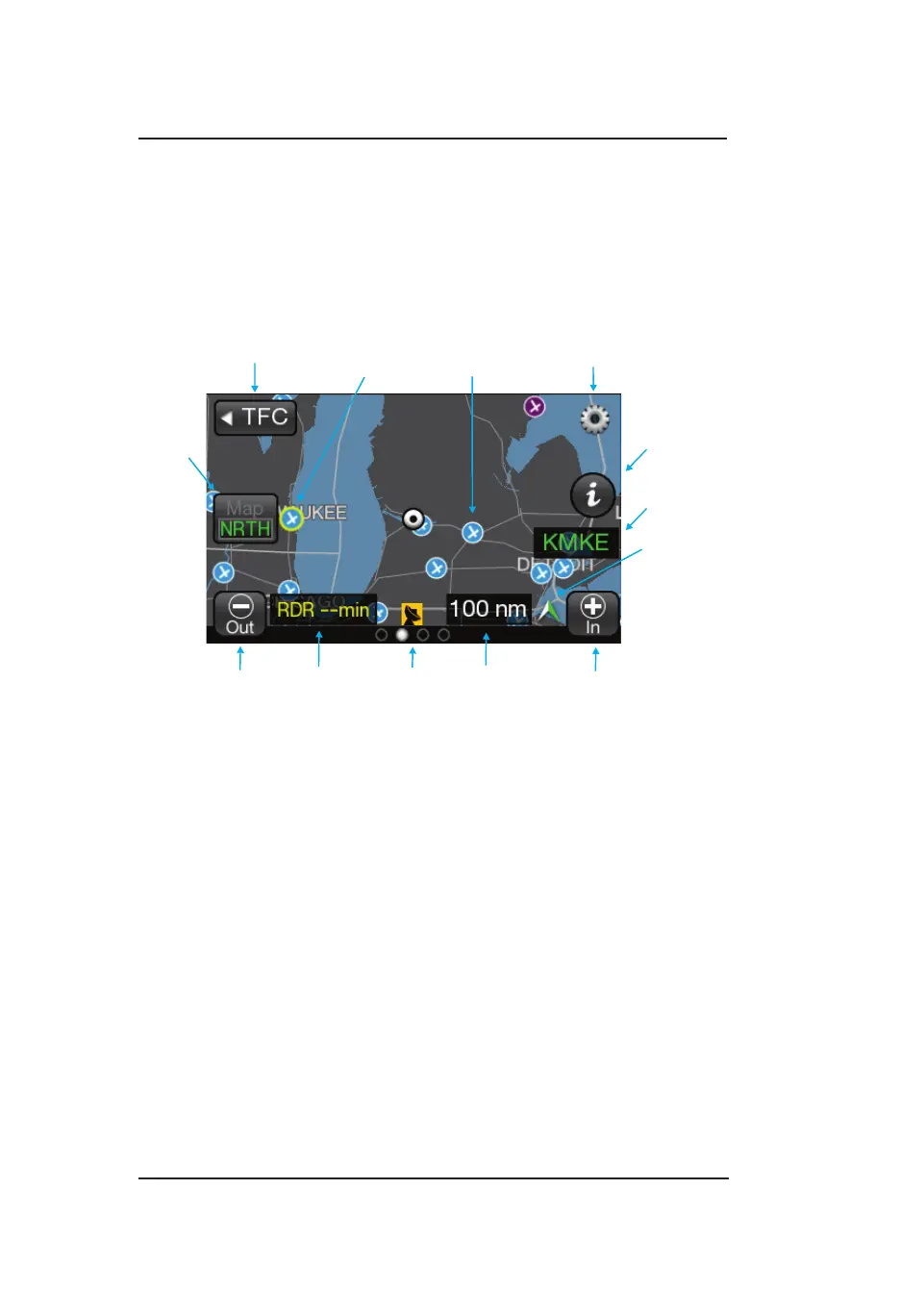

Figure 2-14: Weather Map
FIS-B Graphical Weather Application
The Graphical Weather Application is located in the second screen
position (or third screen position when TAWS is enabled, Release
2.0 or greater) as indicated by the Application Indicator. The Graphic
Application is a simplied moving map with depiction of ownship and
the ability to selectively overlay graphical FIS-B products such as,
NEXRAD, METAR, and SIGMET. See Figure 2-14.
Traffic Button
Zoom
In
Options Button
Zoom
Out
Information
Button
Display Range
Indicator
Selected Airport
ID Indicator
North
Indicator
Time
Stamp
Airport
Symbol
Selected
Symbol
Orientation
Button
No Coverage
Indicator
Map Elements
FIS-B weather products are overlaid on the map. The viewing of
weather products is controlled by the declutter range selected on the
Options Screen.
• Tap to select Product overlaid map elements.
• The selected map elements are highlighted in a yellow outline.
• A tap of an empty area of the map de-selects the map element.
• Only one map element can be selected at a time and may be
selected when panning is active or not.
• The map is normally centered on the ownship symbol when
panning is not activated. When panning is active the viewing area
is repositioned to that selected by the pilot.
• The directional ownship symbol is a white triangle that is a reference
point that corresponds to the ownship position.
• The ownship symbol is a white circle if direction data is not
known.
