Pilot’s Guide2-6

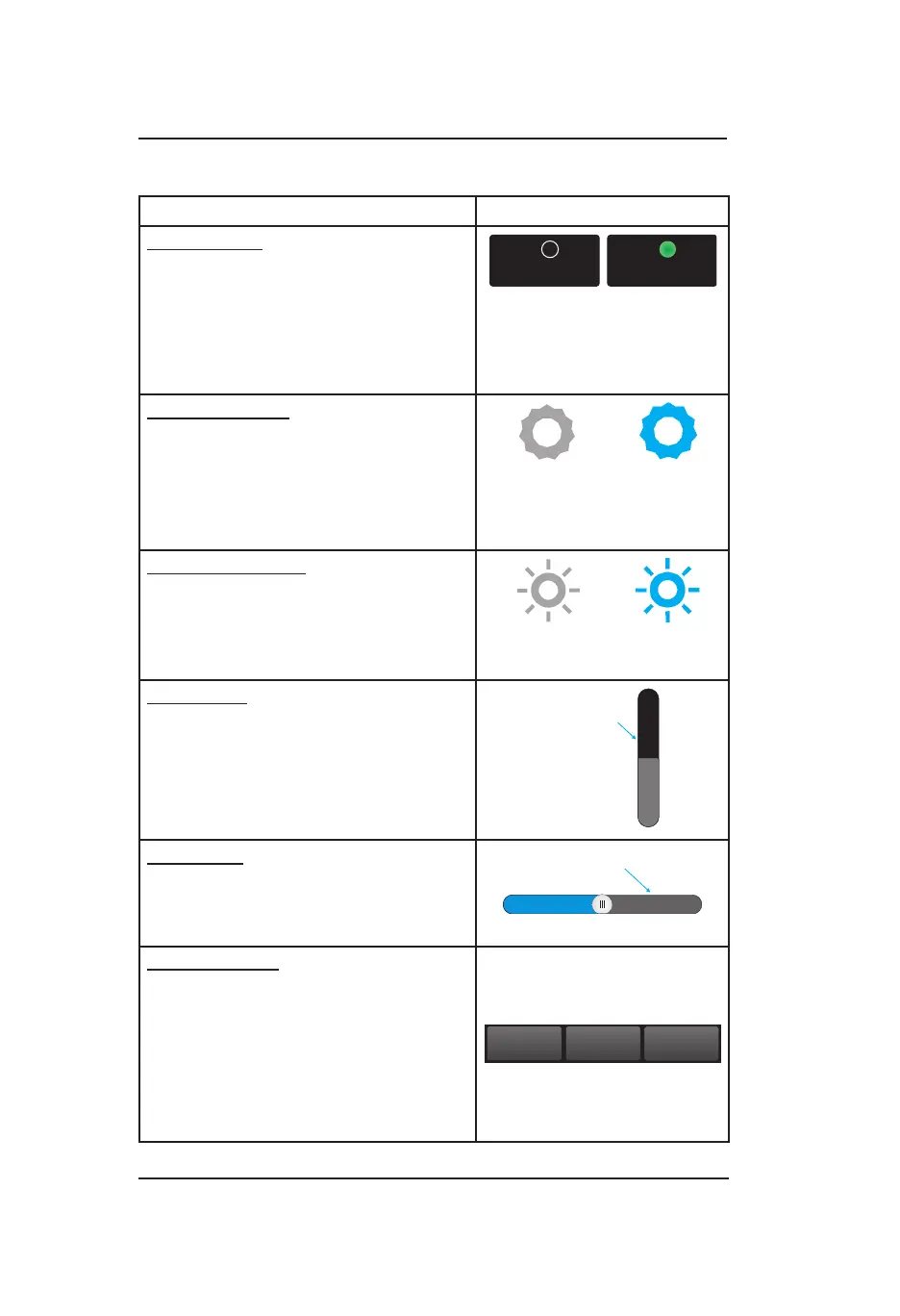

Operation - Panel Mount
NAME - FUNCTION EXAMPLE
Radio Button: The radio button is used
to control related functions of which
only one may be active. The circular
button indicator is bright green when
the button function is active and is
dark when not active.
Above Above
Not Selected - Selected
Options Button: The gear shaped
options button is used to access
options available for the application
screen. Tap the button to open the list
of options. The gear is blue only while
pressed.
Not Selected - Selected
Brightness Button: Used to increase
or decrease the display brightness
level. Tap the button to open a slide
bar. The button is blue only while
pressed.
Not Selected - Selected
Scroll Bar: The scroll bar is used to
navigate vertically through a list or
block of text. Use a drag or swipe
action to move the scroll bar.
Scroll Bar
Position Indicator
Slider Bar: A slider bar is used to
increase or reduce a value. Use a drag
or swipe action to move the slider bar.
Slide Bar
Position Indicator
Options Tab: The Options Tab is
comprised of at least two latch buttons
and a “Done” momentary button. It is
used on the application option screens
to select between two “pages” of
information by tapping on the desired
page name on the tab.
Done
Settings
Status
Table 2-1: Button Functions (continued)
