MacDon A40D - Lubrication Points - Drivelines

262335 93 Revision A
4.5 Lubrication Points – Drivelines
NOTE:
Use high temperature extreme pressure (EP2) performance with 1% max molybdenum disulphide (NLGI Grade 2)
lithium base.

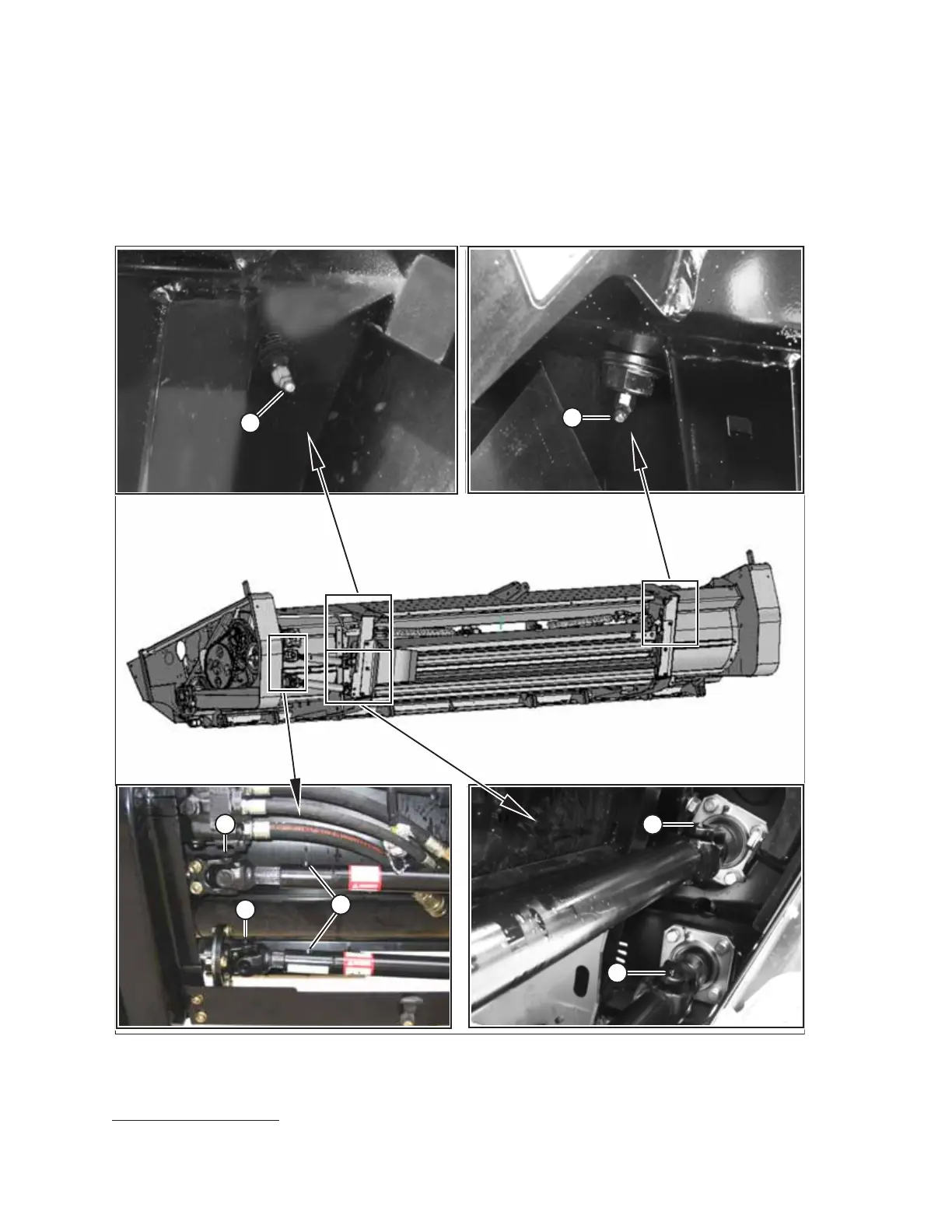

Figure 4.5: Drivelines
1022227
A
B
B
D
D
C
C
A - Driveline Shafts (2 Places)
3
B - Cross Shafts (2 Places) C - Driveline Universals (2 Places)
D - Driveline Universals (2 Places)
LUBRICATING THE MACHINE
3. 10% moly grease is recommended for driveline shaft slip joints ONLY.
