MacDon A40D - Assembling Forming Shield

262335 28 Revision A
3.10 Assembling Forming Shield
1022367
A
A
B

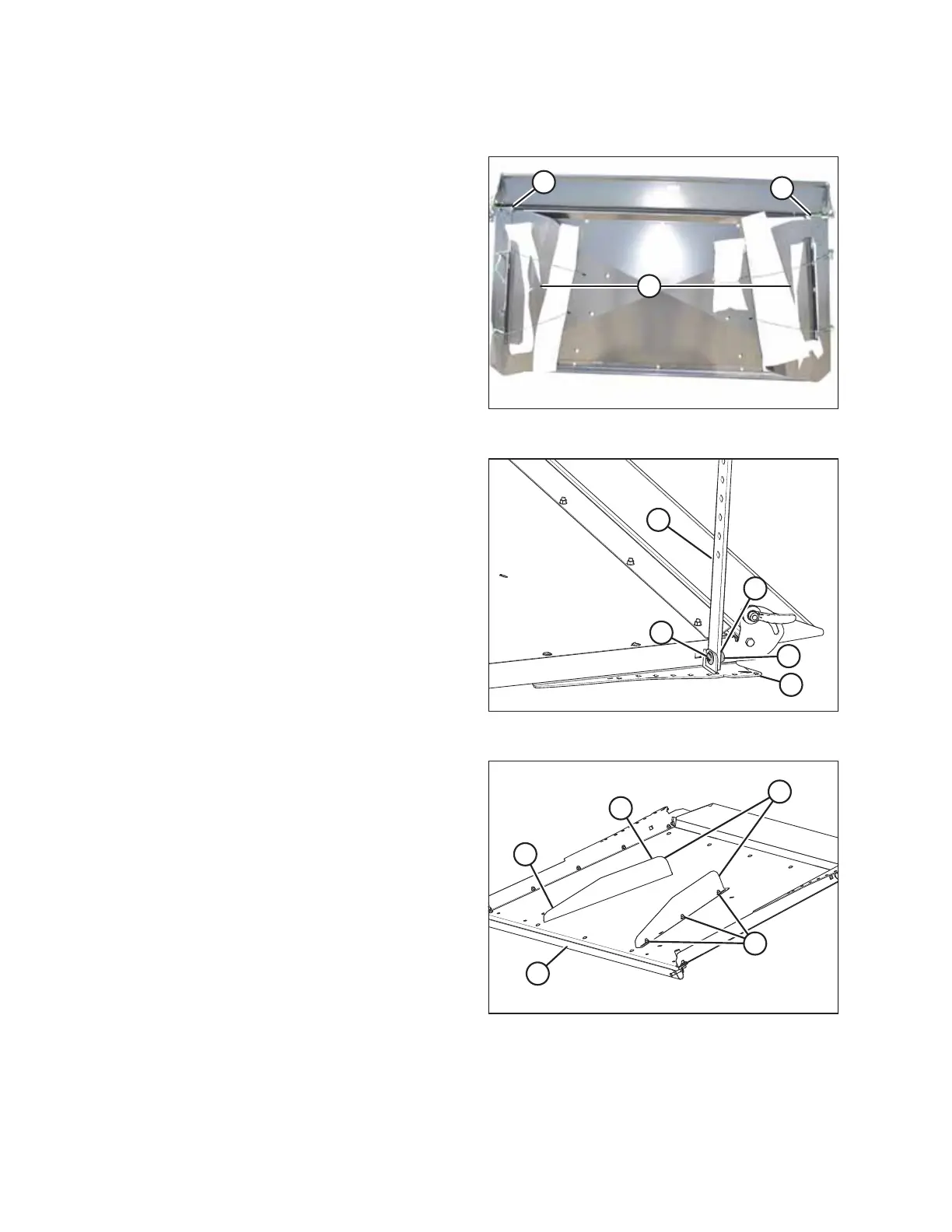

Figure 3.32: Forming Shield in Shipping Configuration
1. Unpack and remove the shipping material.
2. Remove bolts (A) from side deflectors (B).
1013771
A
B
C
D
E
Figure 3.33: Rubber Strap
3. Install rubber strap (A) to side bracket (B) using bolt (C),
washer (D), and nut (E).
4. Repeat for the other side.
1004487
A
B
C
D
E
Figure 3.34: Center Deflectors
5. Lay cover (A) upside down on a flat surface.
6. Install center deflectors (B) using three bolts (C) on
each side.
NOTE:
Arrange deflectors (B) so that narrow end (D) is toward the
front of cover (A) and deep end (E) is toward the rear as
shown in the illustration at right.
ASSEMBLING THE MACHINE
