MacDon A40D - Lubrication Points - Right Side of Header

262335 91 Revision A
4.3 Lubrication Points – Right Side of Header
NOTE:
Use high temperature extreme pressure (EP2) performance with 1% max molybdenum disulphide (NLGI Grade 2) lithium
base. To prevent binding and/or excessive wear caused by knife pressing on guards, do NOT over-grease. If more than 6 to
8 pumps of grease gun are required to fill the cavity, replace the seal in the knifehead.

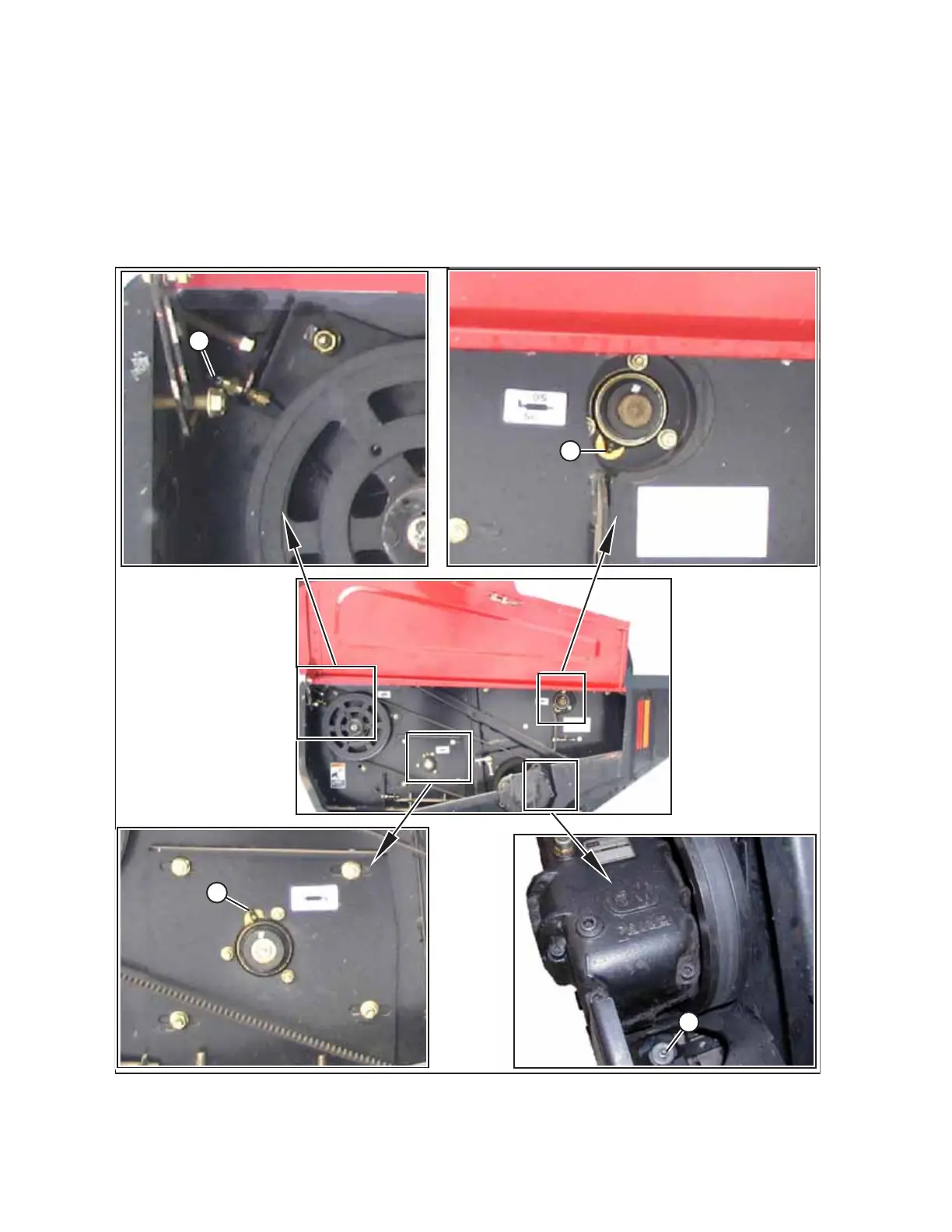

Figure 4.3: Header Right Side
1022213
A
B
C
D
A - Knife Drive Bearing (1 Place) B - Reel Shaft Bearing (1 Place)
C - Auger Shaft Bearing (1 Place) D - Knifehead Bearing (1 Place)
LUBRICATING THE MACHINE
