MacDon A40D - Modifying Hydraulics - M200 Windrower Without Reverser Manifold

262335 62 Revision A
1013783
C
D
A
B
E

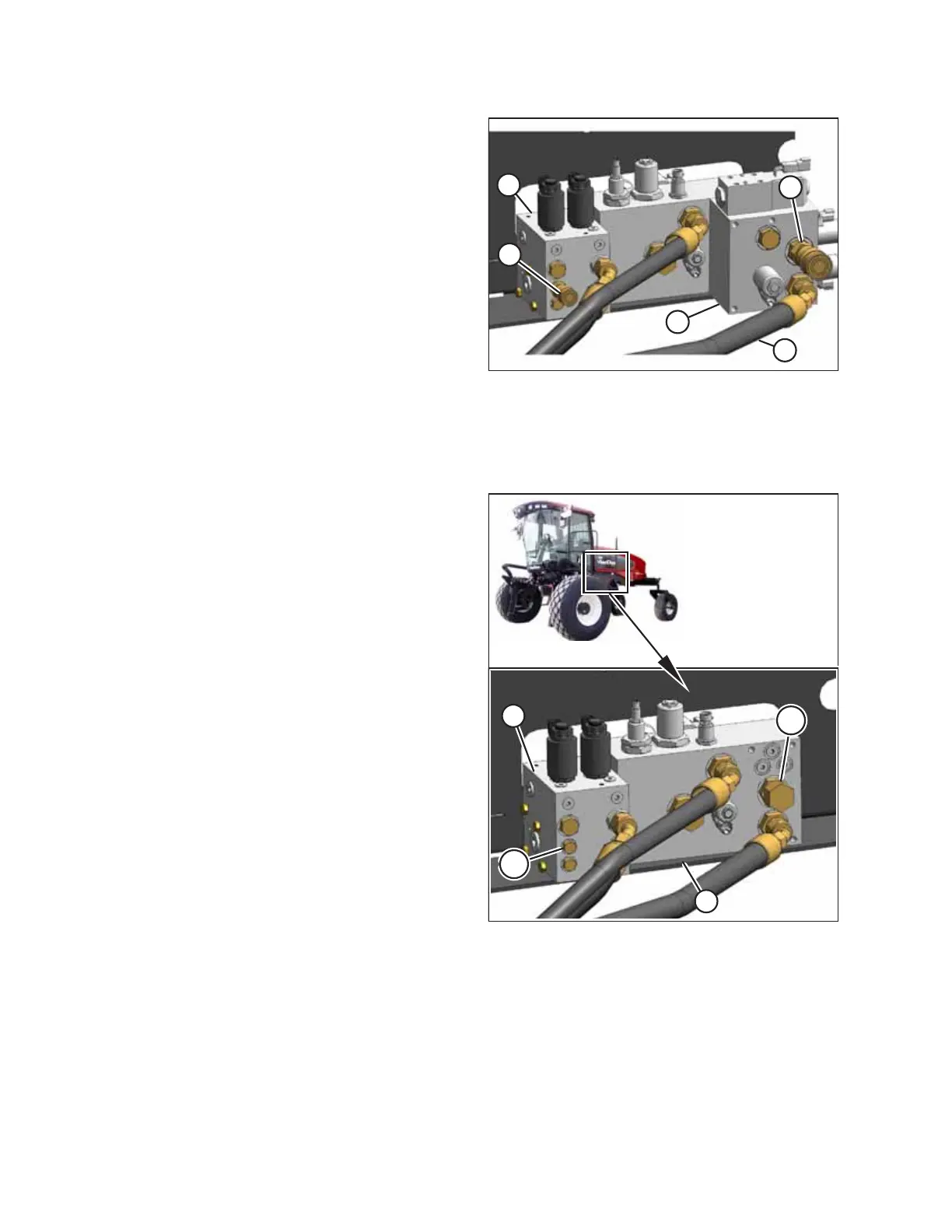

Figure 3.115: Manifolds with Reverser Manifold
Configured for Auger Header
4. Install smaller coupler assembly (C) in port R2 on
manifold (A) and the larger coupler assembly (D) in port R2
on manifold (B).
NOTE:
Position of adjacent hoses may require slight adjustment to
allow access for new hoses. Align larger coupler
assembly (D) with R1 hose (E).
5. Return to Step 18, page 51.
3.13.4 Modifying Hydraulics – M200 Windrower without Reverser Manifold
1009240
A
B
R2
R2
Figure 3.116: Manifolds without Reverser Manifold in
Factory Configuration
1. Open left maintenance platform on windrower.
2. Remove the plug from port R2 (R2) on manifold (A) and the
cap from fitting in port R2 (R2) on manifold (B). Ports may
not be labelled.
