3.18 Attaching A40DX Auger Header
The windrower’s lift linkage and center-link will need to be connected to the header.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine and
remove the key before leaving the operator’s seat, and always engage the safety props before going under the
machine for any reason.
DANGER
Ensure that all bystanders have cleared the area.
1. Shut down the engine, and remove the key from the ignition.

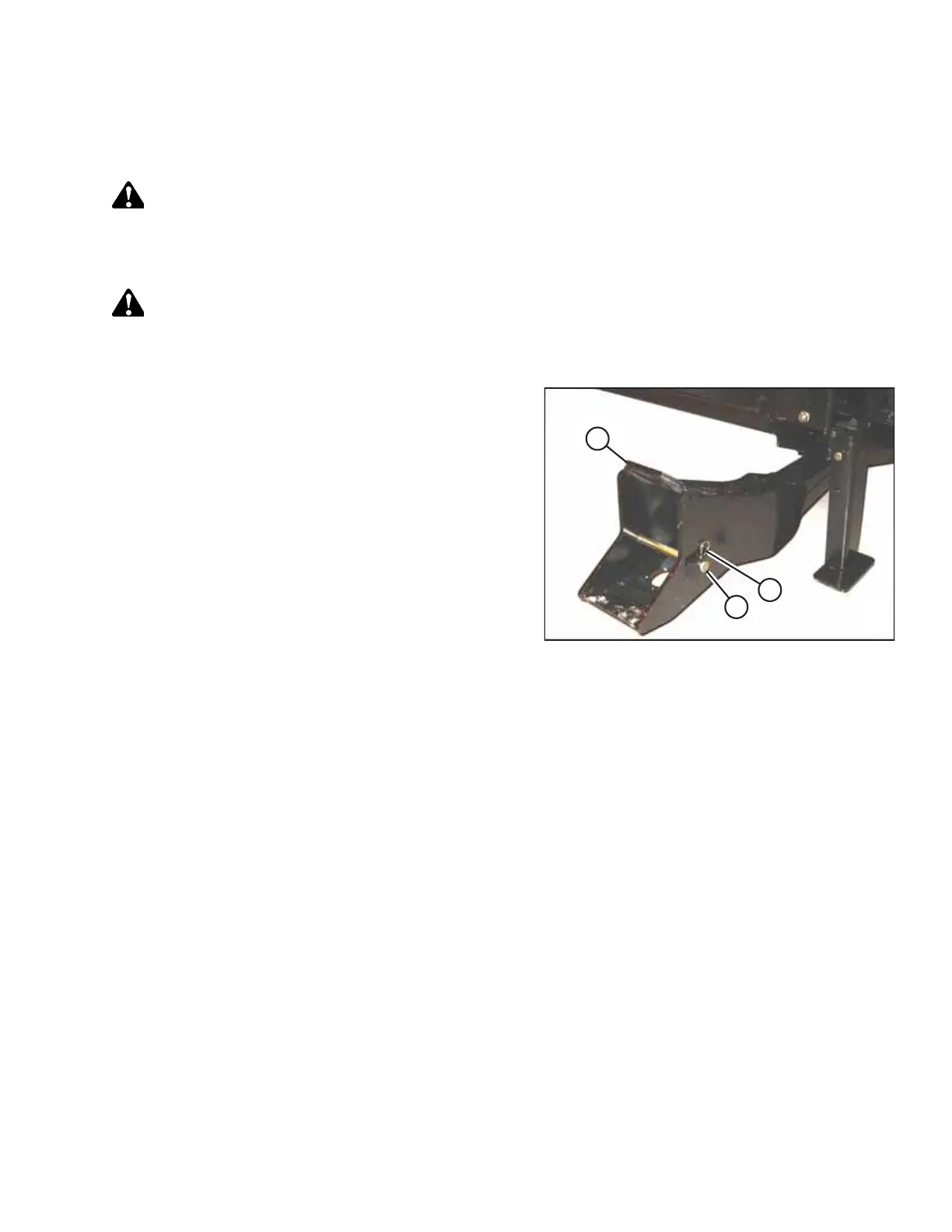

Figure 3.144: Header Support
2. Remove hairpin (A) from pin (B). Remove the pin from
header supports (C). Repeat this step at the opposite side
of the header.
3. Start the engine.
ASSEMBLING THE MACHINE
