262335 65 Revision A
3.14 Routing Reverser Manifold Jumper Hose – M Series Windrower

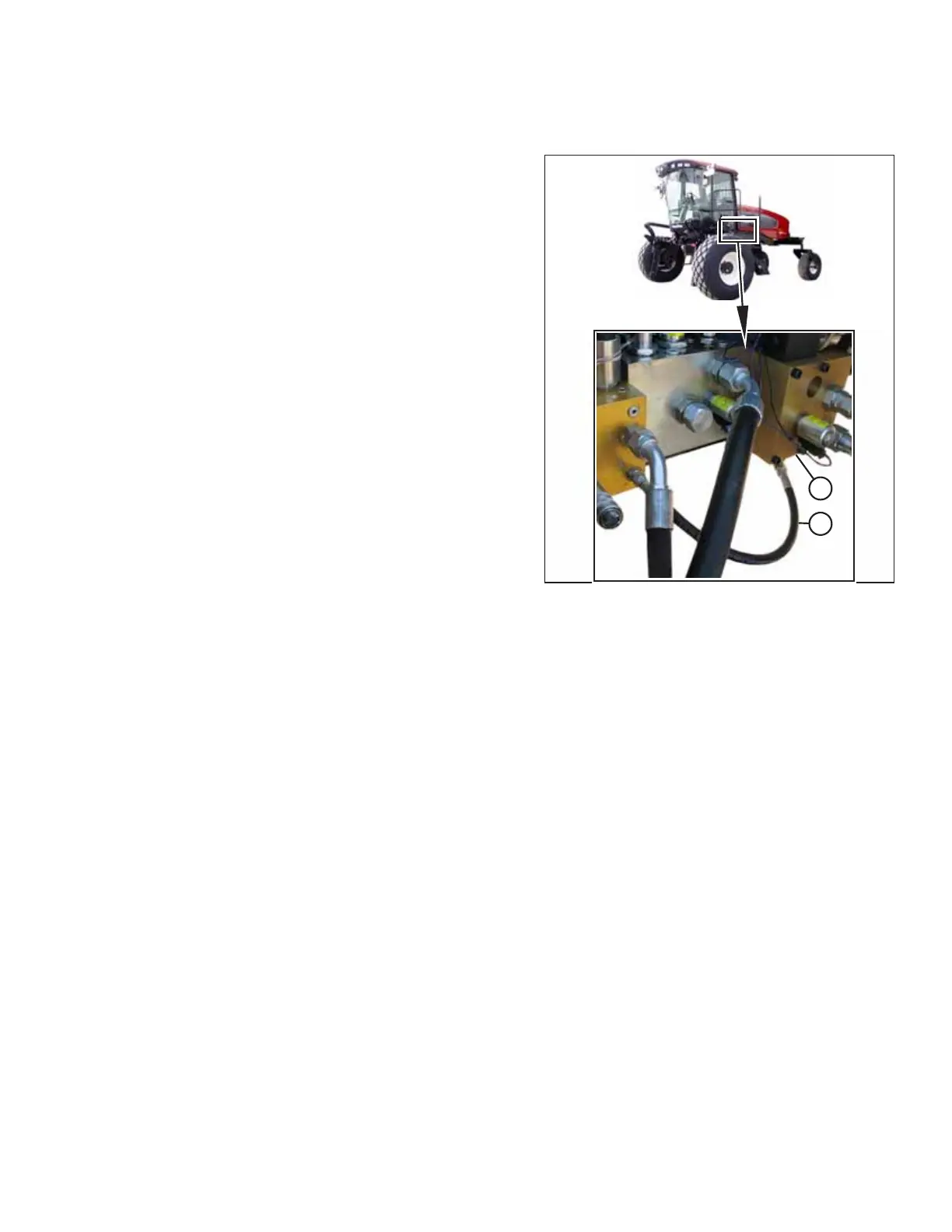

Figure 3.121: Reverser Manifold – A40D on M200
Shown (M150, M155, and M155E4 Similar)
An optional manifold (A) to reverse the header drive in the
event of plugging may have been installed on an M150, M155,
M155E4, or M200 windrower. If reverser manifold (A) is
installed, proceed as follows; otherwise, disregard this
procedure.
IMPORTANT:
Jumper hose routing (B) on the reverser manifold is specific for
each model of header. Do NOT operate the header unless the
jumper hose is routed correctly.
ASSEMBLING THE MACHINE
