262335 66 Revision A

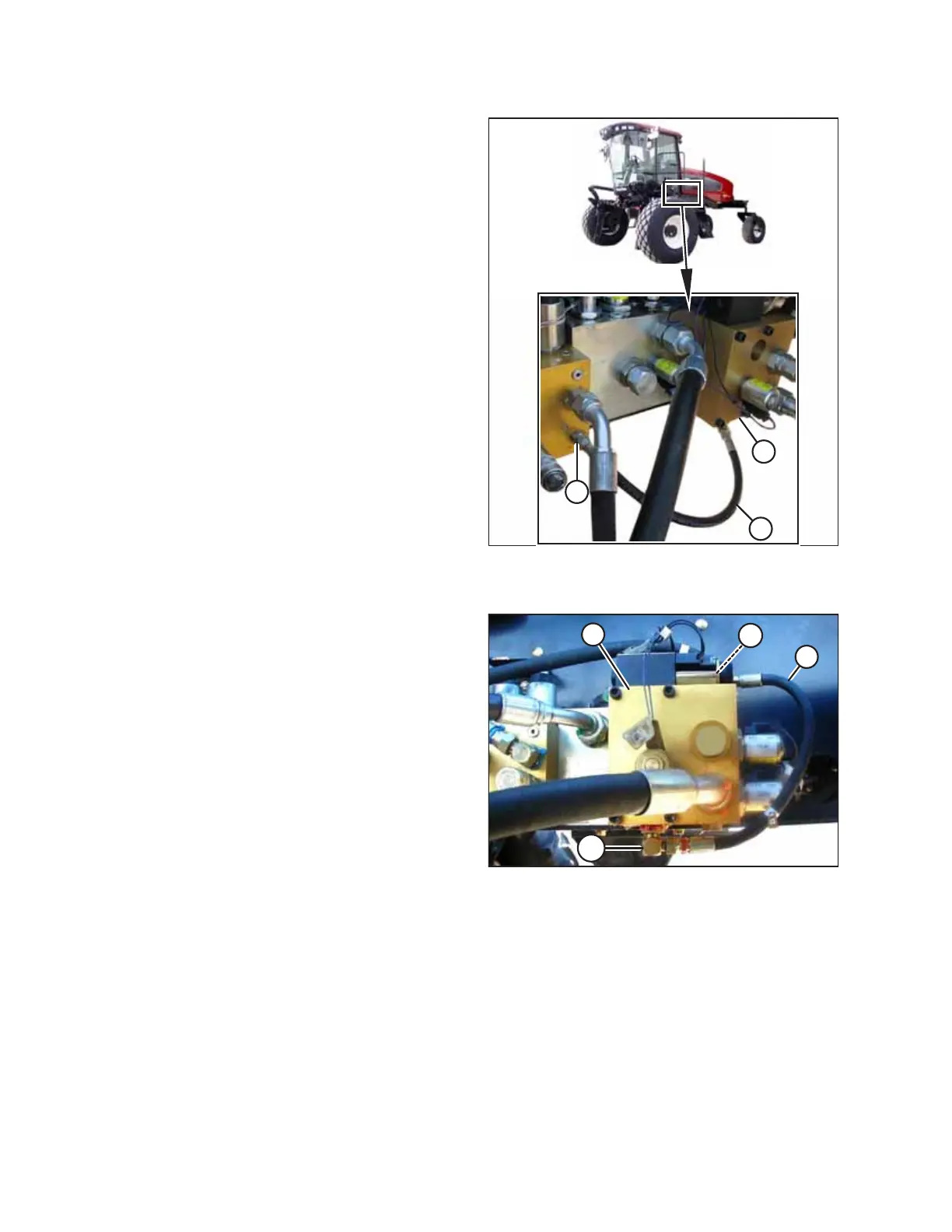

Figure 3.122: Jumper Hose Position – A40D on M200
Shown (M150, M155, and M155E4 Similar)
1. Move the left windrower platform to the open position to
expose the hydraulic manifolds.
2. Route jumper hose (B) from C2 conveyor circuit (C) to
port CR on reverser manifold (A) as shown.
Figure 3.123: Jumper Hose Position – Draper Header
on M150 Shown (M155, M155E4, and M200 Similar)
IMPORTANT:
For draper headers, port CR is routed to port R4 (as shown
in image at right) on reverser manifold. Reroute jumper
hose (B) when switching between draper and auger
headers. This prevents draper header reel damage and
improper operation, which occurs if reel runs backwards.
NOTE:
Jumper hose rerouting is unnecessary if hay conditioner is
NOT installed on draper header. The draper header reverser
function is suppressed unless hay conditioner is activated in
Windrower Setup using the cab display module (CDM).
3. Proceed to 3.20 Repositioning Knife Drive Box Breathers, page 88.
ASSEMBLING THE MACHINE
