3.11 Installing Forming Shield
Follow this procedure when installing the forming shield.
NOTE:
Forming shields are not compatible with narrow transport windrowers.
1009077

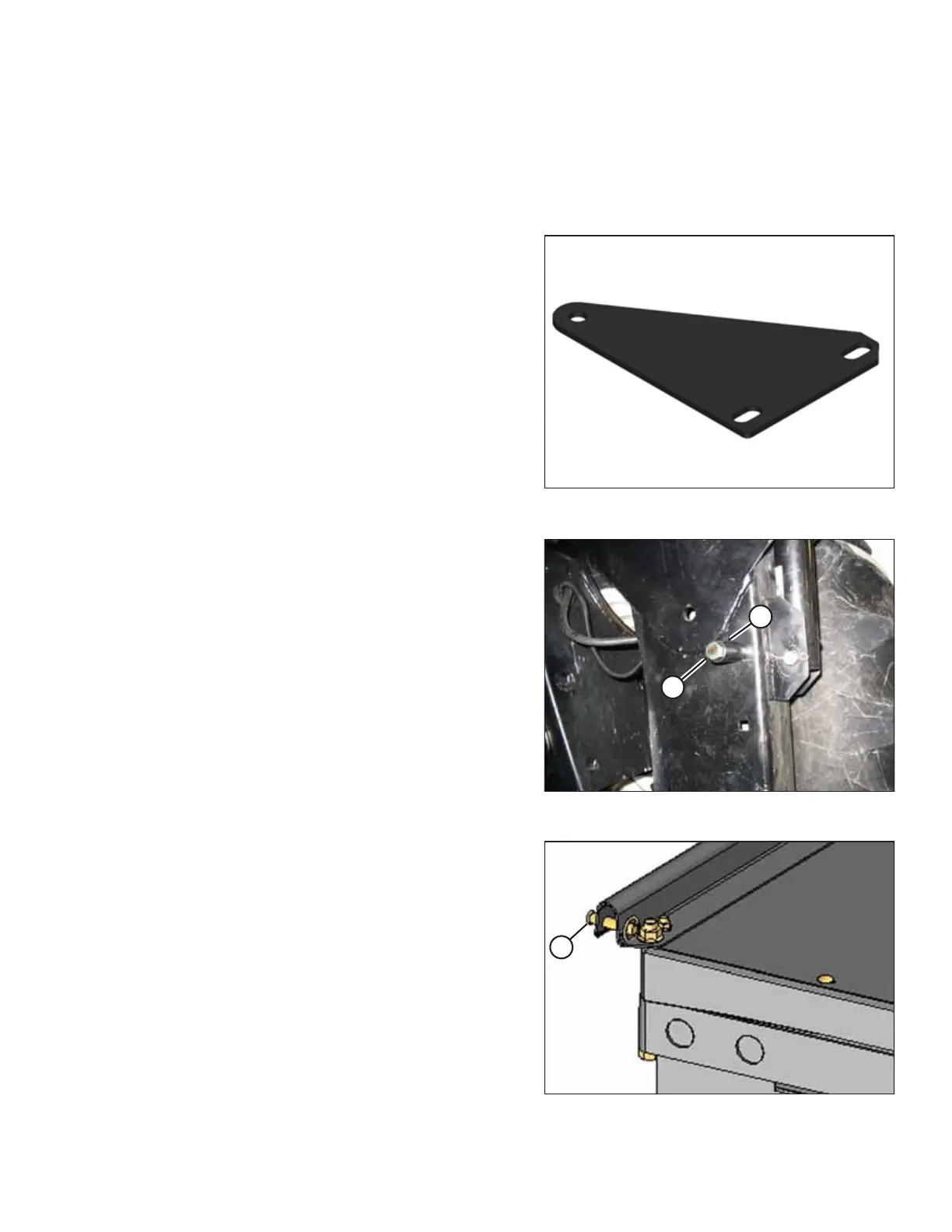

Figure 3.38: Triangular Plate
NOTE:
Do NOT install the two triangular-shaped plates from the forming
shield kit. The triangular plates are used with the rotary headers.
1009079
A
B
Figure 3.39: Windrower Leg
1. Install bolt (A) with spacer (B) and nut on each windrower
leg in the upper hole.
NOTE:
This hardware is supplied with the forming shield kit.
1005404
A
Figure 3.40: Forming Shield
2. Remove two clevis pins (A) from the forward end of the
forming shield.
