3.13.3 Modifying Hydraulics – M200 Windrower with Reverser Manifold
IMPORTANT:
For windrowers with Reverser kit (B4656) installed, to prevent draper header reel damage and improper operation, hose
plumbing to reverser manifold must be changed to suit the header type if switching between A40D Auger Header and
draper header. Refer to kit installation instruction for proper plumbing procedures for each header type.
1013760
A
B
R2
R2

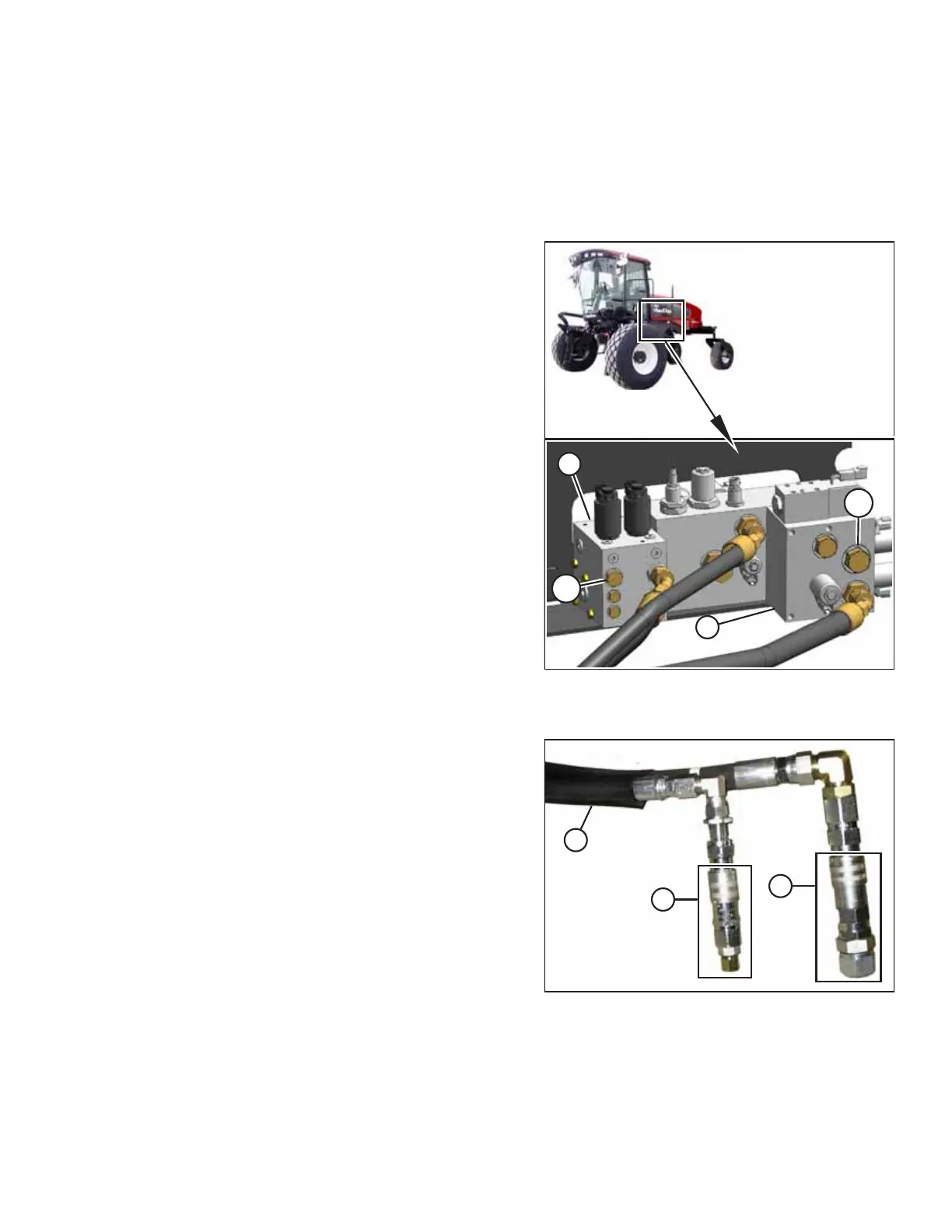

Figure 3.113: Manifolds with Reverser Manifold in
Factory Configuration
1. Open left maintenance platform on windrower.
2. Remove the plugs from ports R2 (R2) on manifolds (A)
and (B).
1009115
A
B
C
Figure 3.114: Header Hose Bundle
3. Remove female coupler assemblies (A) and (B) from hoses
in bundle (C) from header, and remove caps.
NOTE:
To avoid contact with platform support, the reel/auger
return hose uses a 45° fitting (MD #50098).
ASSEMBLING THE MACHINE
