MacDon A40D - Page 68

262335 60 Revision A
1009115
A
B
C

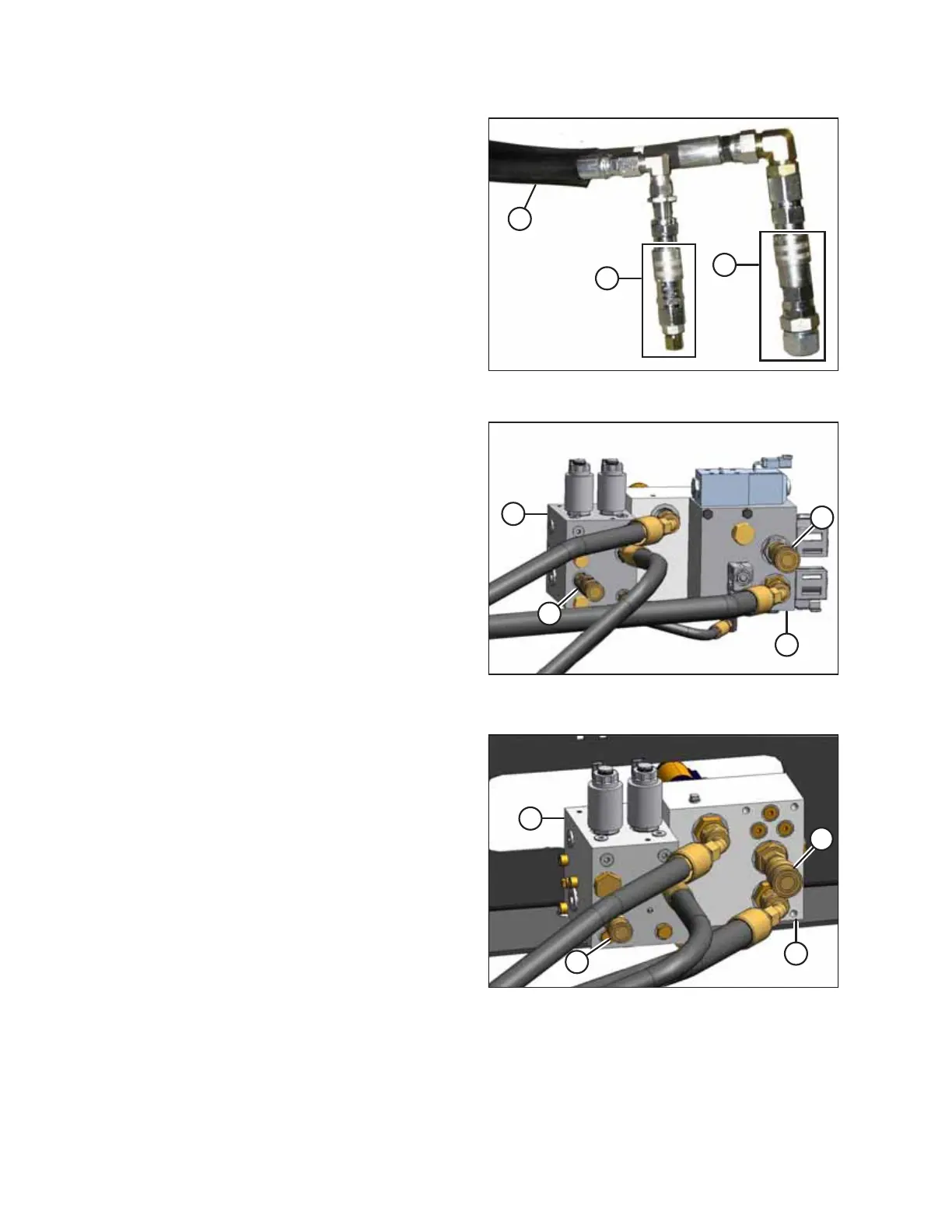

Figure 3.110: Header Hose Bundle
3. Remove female coupler assemblies (A) and (B) from hoses
in bundle (C) from header, and remove caps.
1009174
A
B
C
D
Figure 3.111: Manifolds with Reverser Valve
Configured for Auger Header
1009173
A
B
C
D
Figure 3.112: Manifolds without Reverser Valve
Configured for Auger Header
4. Install smaller coupler assembly (C) in port R2 on
manifold (A) and the larger coupler assembly (D) in port R2
on manifold (B).
5. Return to Step 18, page 45.
ASSEMBLING THE MACHINE
