3.7 Adjusting Lean Bar
The lean bar is fully retracted for shipping. Adjust as follows:
NOTE:
If optional tall crop divider kit is supplied, it can be installed prior to reinstalling the lean bar. Refer to 3.6 Installing Tall
Crop Divider Kit, page 23.

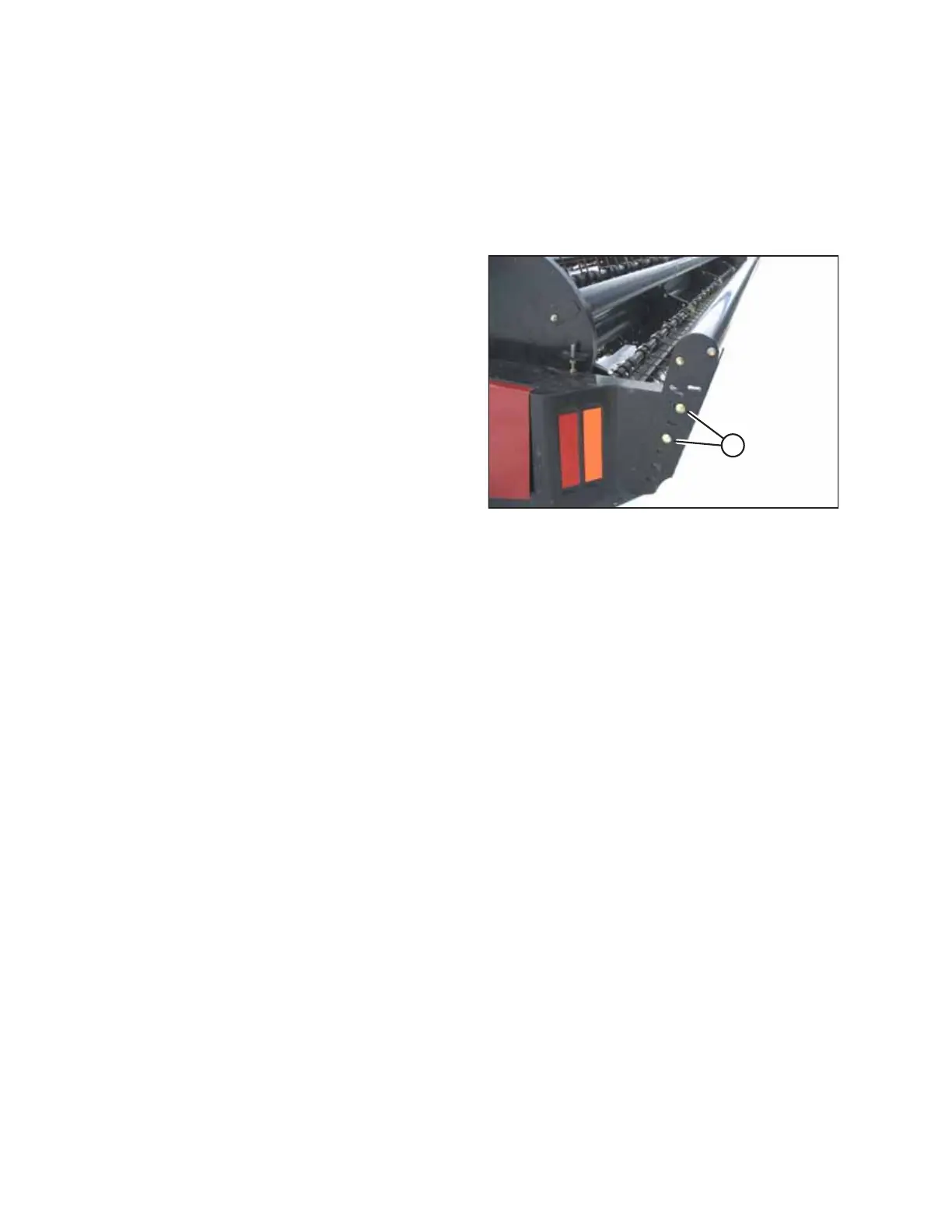

Figure 3.25: Lean Bar
1. Remove hardware (A) on both sides and install lean bar in
field position. Check that the field position is suitable for
the crop (normally 2/3 of crop height).
