3.12.2 Attaching A40D an to M150, M155, or M155E4 Windrower
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1000784
A
B

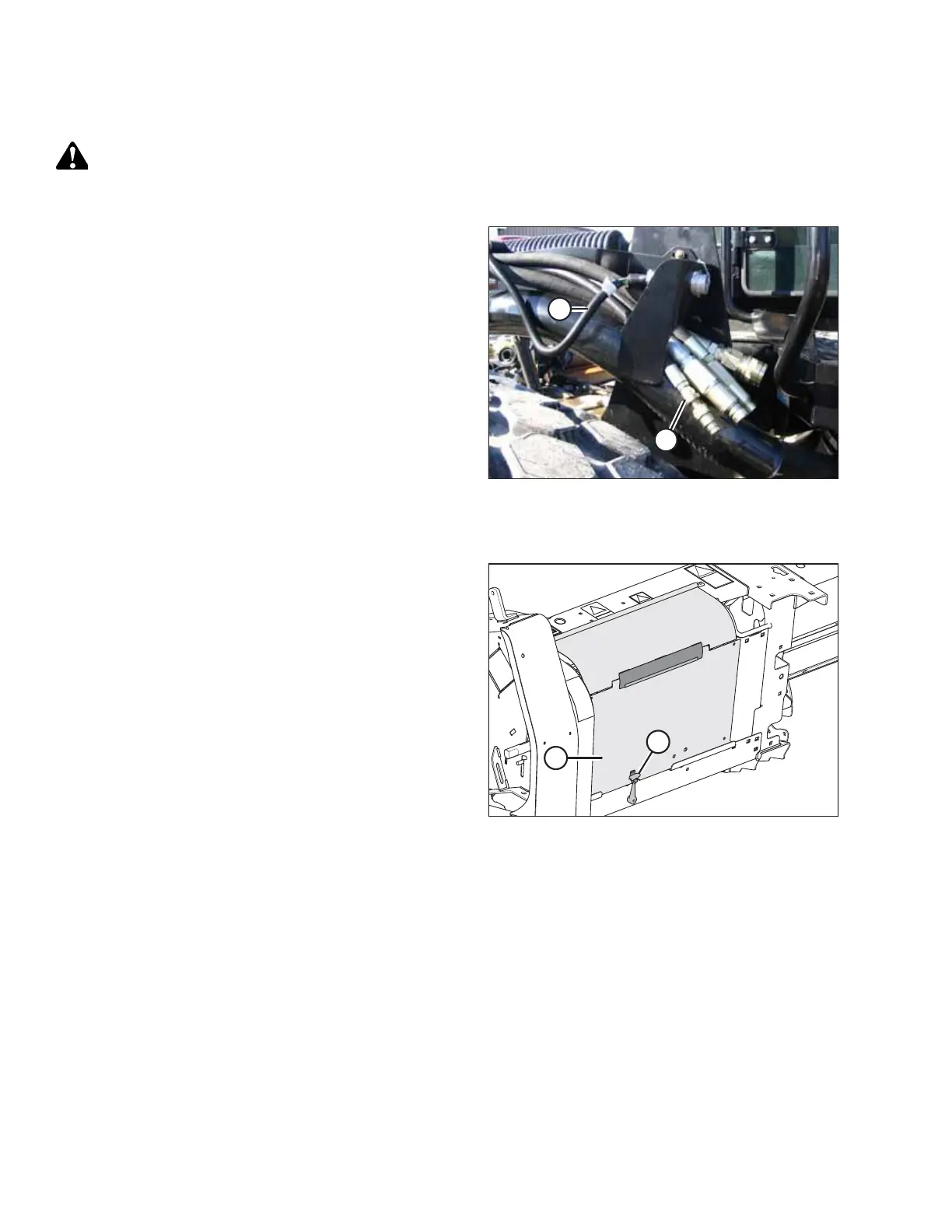

Figure 3.59: Header Drive Hoses
Four header drive hoses (A) and an electrical harness (B) are
located on the left side of the windrower.
1. Shut down the engine, and remove the key from the ignition.
1023840
A
B
Figure 3.60: Driveshield – Headers Sold in North
America
2. Headers sold in North America: Disengage rubber latch (A)
and open driveshield (B).
ASSEMBLING THE MACHINE
