3.13.5 Modifying Hydraulics – M205 Windrower
The M205 hydraulics need to be modified to accept an A40D Auger Header. Kits B5491, B5492, and B5497 should have
been supplied with your header.

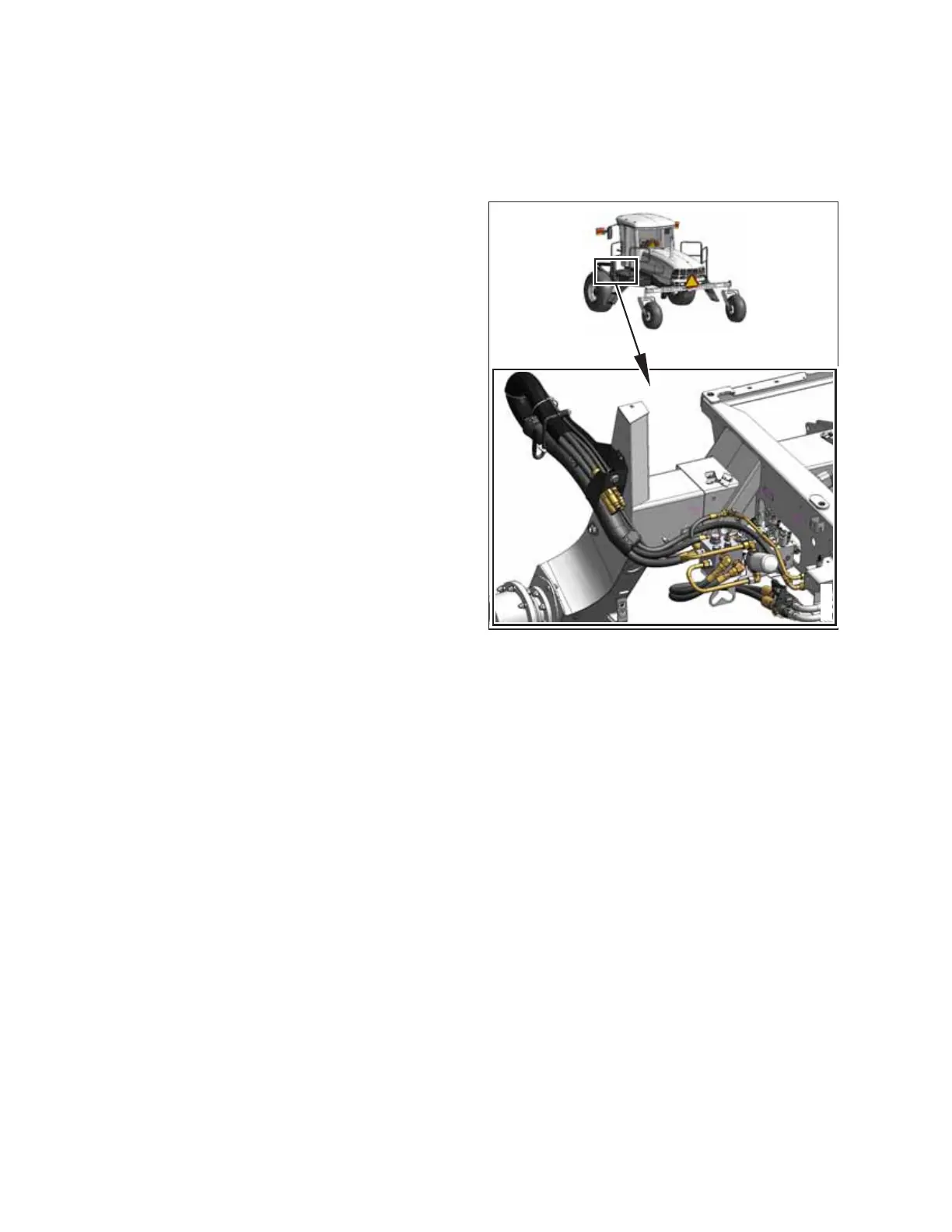

Figure 3.120: Auger Header Hydraulics
1. Install kits in accordance with the instructions that were
supplied with the kits to achieve the configuration shown
at right.
ASSEMBLING THE MACHINE
