262335 67 Revision A
3.15 Hydraulic Drive Hose Routing – M Series Windrowers
IMPORTANT:
Only A40D and A40D GSS Headers are factory-configured for operation with M Series Windrowers.
3.15.1 Hydraulic Drive Hose Routing – A40D Header and M100, M105, and M205
Windrowers
The A40D Auger Header hydraulic drive hose routing depends on the windrower model to which the header is being
attached.
A40D Headers are factory-configured for M150, M155, M155E4, and Self-Propelled M200 Windrowers as shown in
Figure 3.130, page 69.
To route hoses for M100, M105, and M205 Self-Propelled Windrowers, proceed as follows:
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.

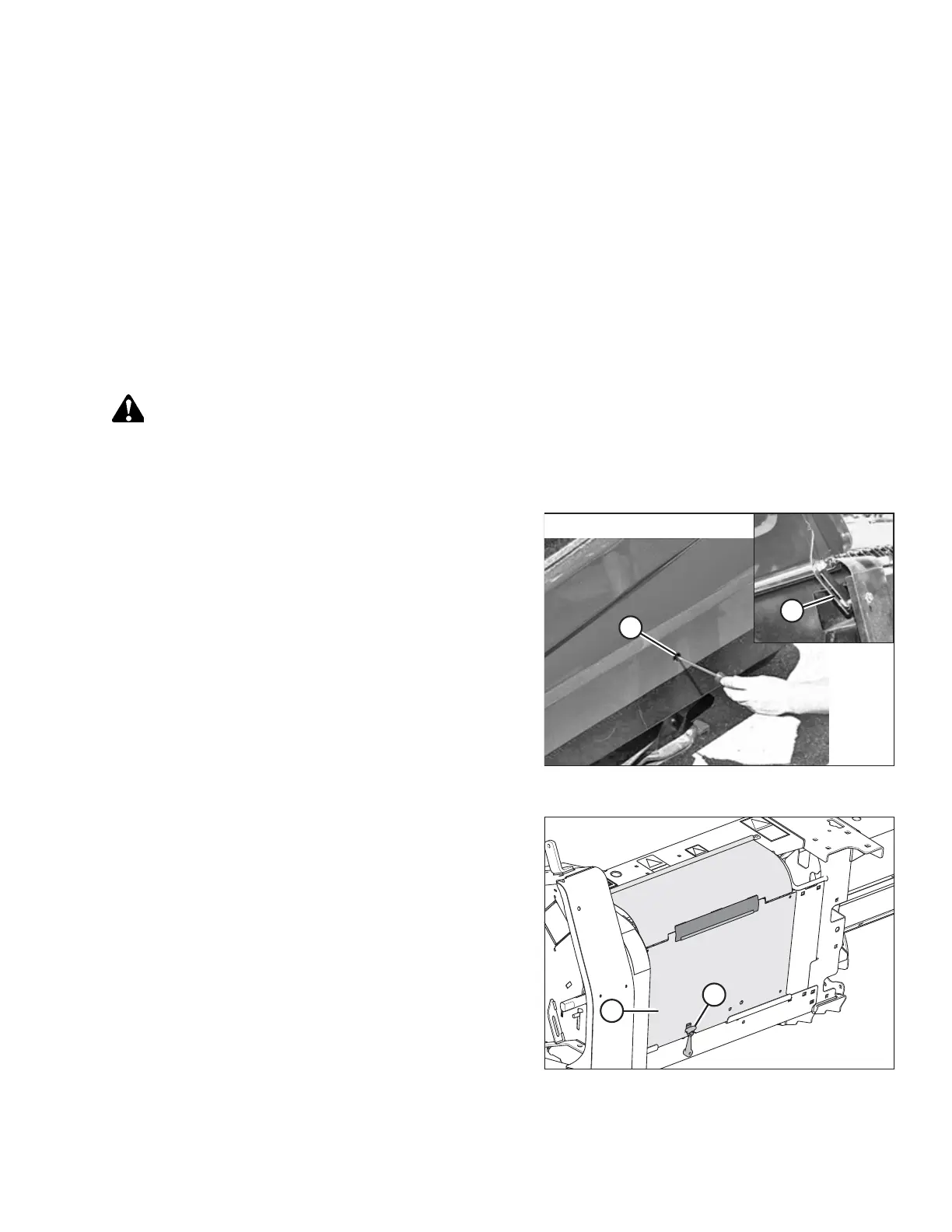

Figure 3.124: Left Endshield
2. Press a screwdriver against the latch in opening (A) and lift
it to open the header left endshield. The shield will latch at
location (B) to stay open.
Figure 3.125: Driveshield – Headers Sold in North
America
3. Headers sold in North America: Disengage rubber latch (A)
and open driveshield (B).
ASSEMBLING THE MACHINE
