MacDon A40D - Page 77

262335 69 Revision A
1010971
A
B
C

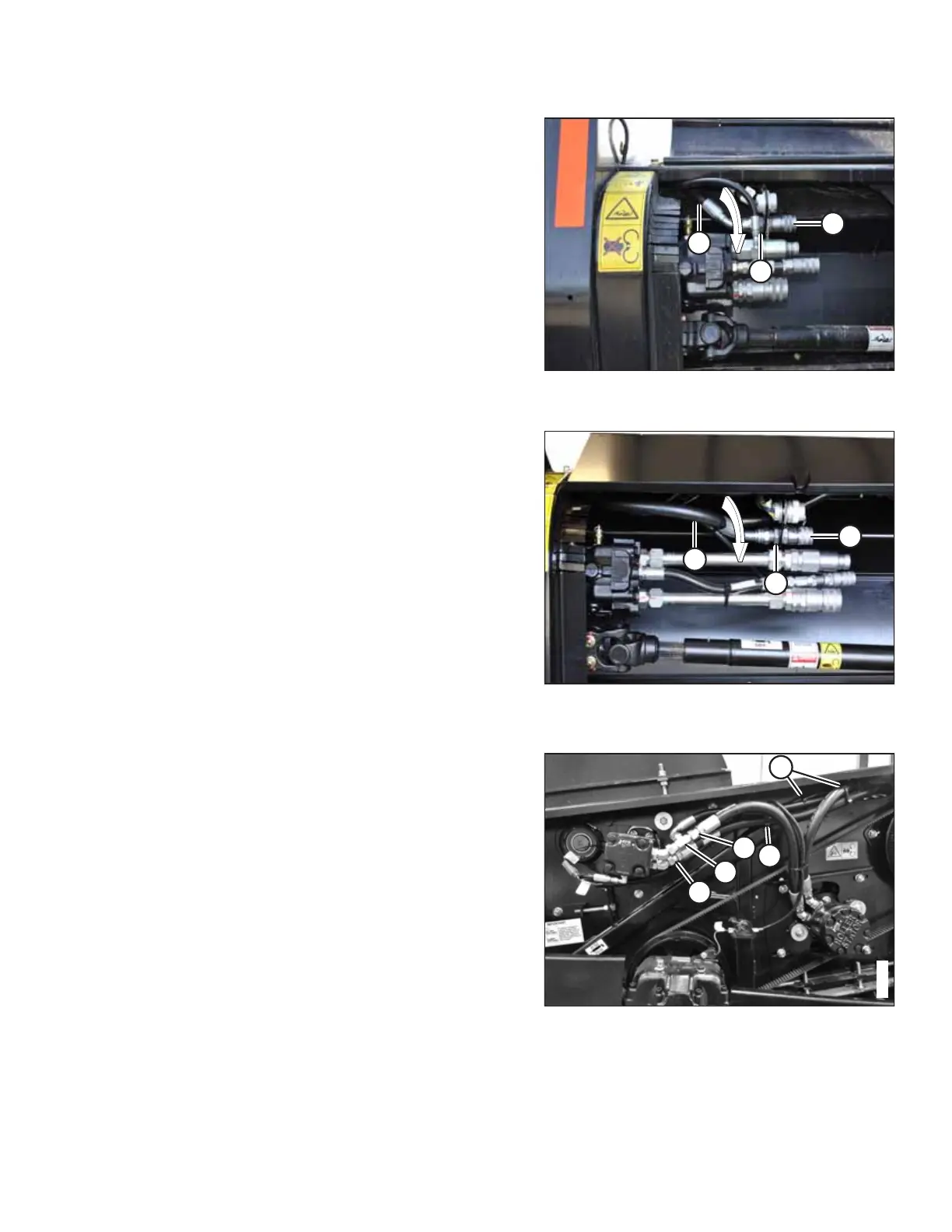

Figure 3.128: Auger and Reel Pressure Coupler and
Hose – 4.9 m (16 ft.) Header Shown
1010730
A
B
C
Figure 3.129: Auger and Reel Pressure Coupler and
Hose – 5.5 m (18 ft.) Header Shown
5. Loosen bulkhead nut (A) on auger and reel pressure
coupler (B). This allows auger and reel pressure hose (C) to
rotate freely.
1031336
A
B
C
D
DD
Figure 3.130: Factory Configuration – M150, M155,
M155E4, and M200
6. Disconnect the hoses as follows:
a. Disconnect hose (A) from tee (B).
b. Disconnect tee (B) from the reel motor upper port.
c. Disconnect hose (C) from the reel motor lower port.
7. Cut cable ties (D) at locations shown in the illustration.
ASSEMBLING THE MACHINE
