3.12 Attaching A40D Auger Headers to M Series Self-Propelled
Windrowers
The header drive hydraulic hoses and electrical harness are located on the left cab-forward side of the windrower.
IMPORTANT:
M150, M155, M155E4, and M200 Self-Propelled Windrowers with the M Series Reverser kit (B4656) installed need to have
the reverser valve hose plumbing changed if switching between a D Series Draper Header with a conditioner to an A40D
Auger Header. Changing this plumbing prevents improper operation and damage to the reel drive motor.
Refer to 3.14 Routing Reverser Manifold Jumper Hose – M Series Windrower, page 65 and (if necessary) to M Series
Reverser Kit Installation Instructions (MD #169213), available from our dealer-only site (https://portal.macdon.com) (login
required).
NOTE:
Header reel motor hose routing must be properly configured before attaching the header to a windrower. Hose routing on
the header is factory-configured for M150, M155, M155 E4 , and M200 Self-Propelled Windrowers. Header hose routing
must be reconfigured if the header is being used on M100, M105, or M205 Self-Propelled Windrowers.
Refer to the following procedures:
• 3.12.1 Attaching A40D Header to an M100 or M105 Windrower, page 34
• 3.12.2 Attaching A40D an to M150, M155, or M155E4 Windrower, page 40
• 3.12.3 Attaching A40D Header to an M200 Windrower, page 46
• 3.12.4 Attaching A40D Auger Header to an M205 Self-Propelled Windrower, page 52
Refer to your windrower operator’s manual for procedures to mechanically attach the auger header to the windrower, and
for modifications (if required) to the windrower hydraulic connections.
3.12.1 Attaching A40D Header to an M100 or M105 Windrower
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.

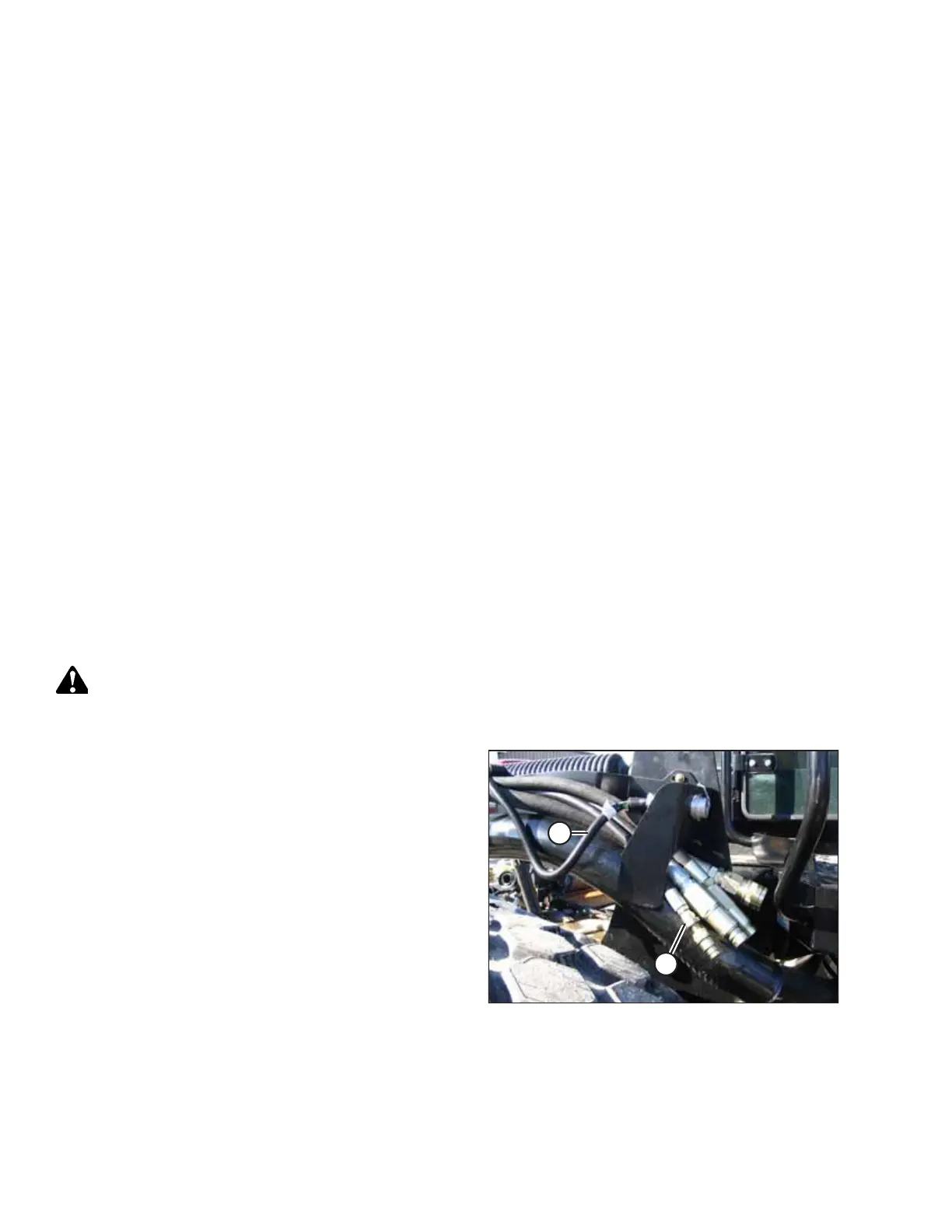

Figure 3.45: Header Drive Hoses
M100 and M105 Windrowers are factory-equipped with four
header drive hoses (A) and an electrical harness (B) on the
left side.
ASSEMBLING THE MACHINE
