4.2 Lubrication Points – Left Side of Header
NOTE:
Use high temperature extreme pressure (EP2) performance with 1% max molybdenum disulphide (NLGI Grade 2) lithium
base. To prevent binding and/or excessive wear caused by knife pressing on guards, do NOT over-grease. If more than 6 to
8 pumps of grease gun are required to fill the cavity, replace the seal in the knifehead.

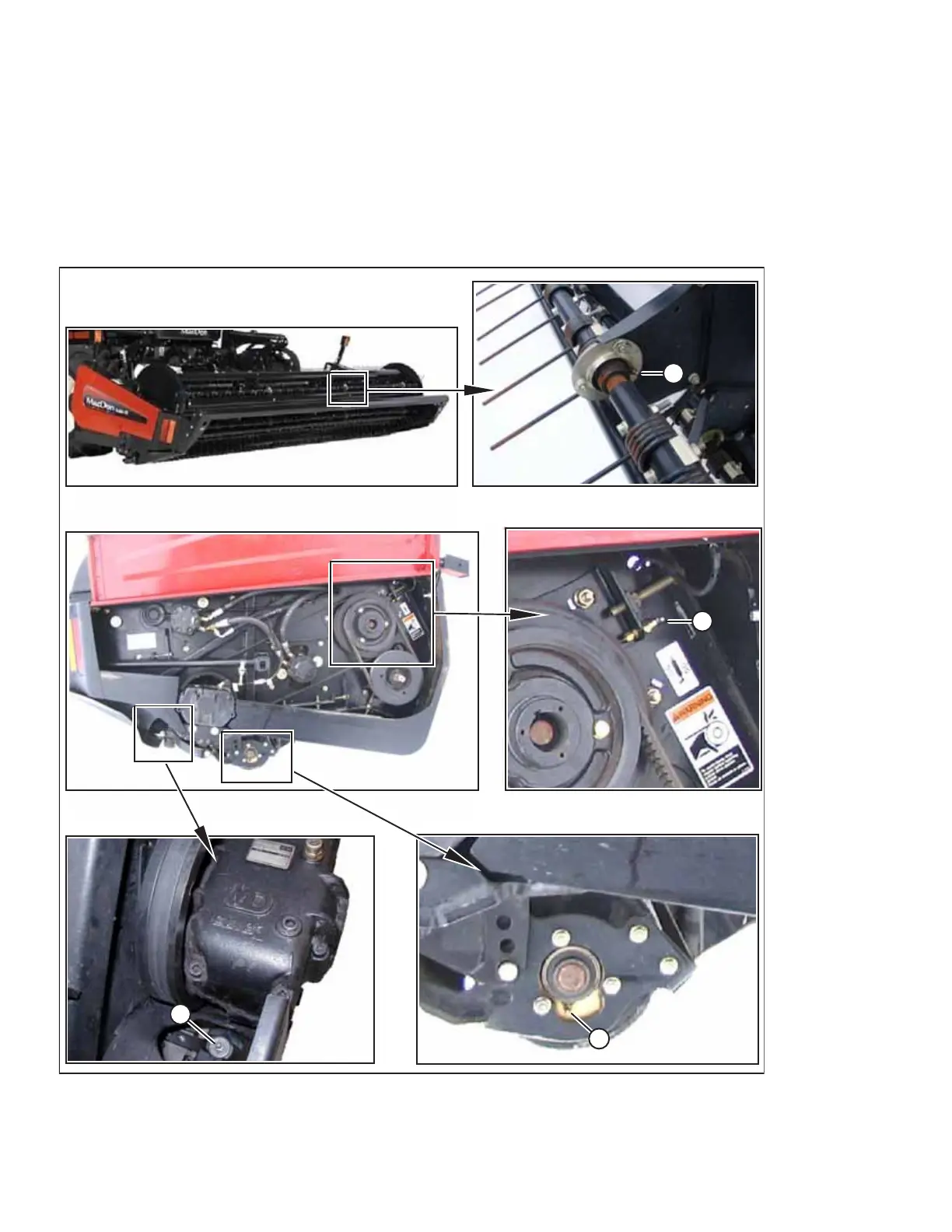

Figure 4.2: Header Left Side
1022212
A
B
C
D
A - Tine Bar Bearing (4 Places – Each Tine Bar) B - Knife Drive Bearing (1 Place)
C - Gauge Roller Bearing (2 Places) (Both Sides if Installed) D - Knifehead Bearing (1 Place)
