MacDon A40D - Page 40

262335 32 Revision A
1005181
A

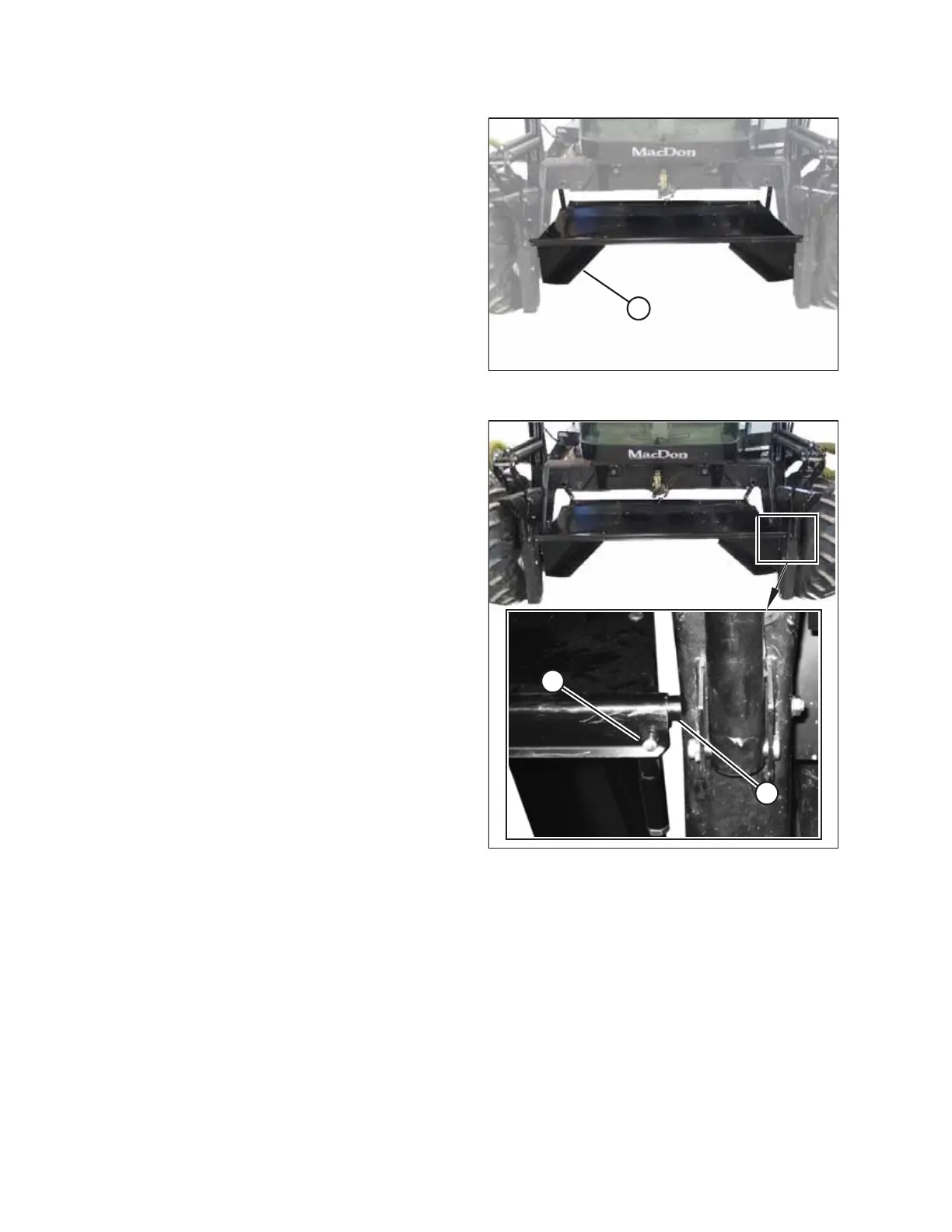

Figure 3.41: Forming Shield under the Windrower
3. Position forming shield (A) under the windrower frame.
1005806
B
A
Figure 3.42: Forming Shield Attached to the
Windrower Legs
4. Position the forming shield onto bolts (A) in the windrower
legs and secure the forming shield with clevis pins (B) and
hairpin.
ASSEMBLING THE MACHINE
