262335 51 Revision A
1005272
A
B

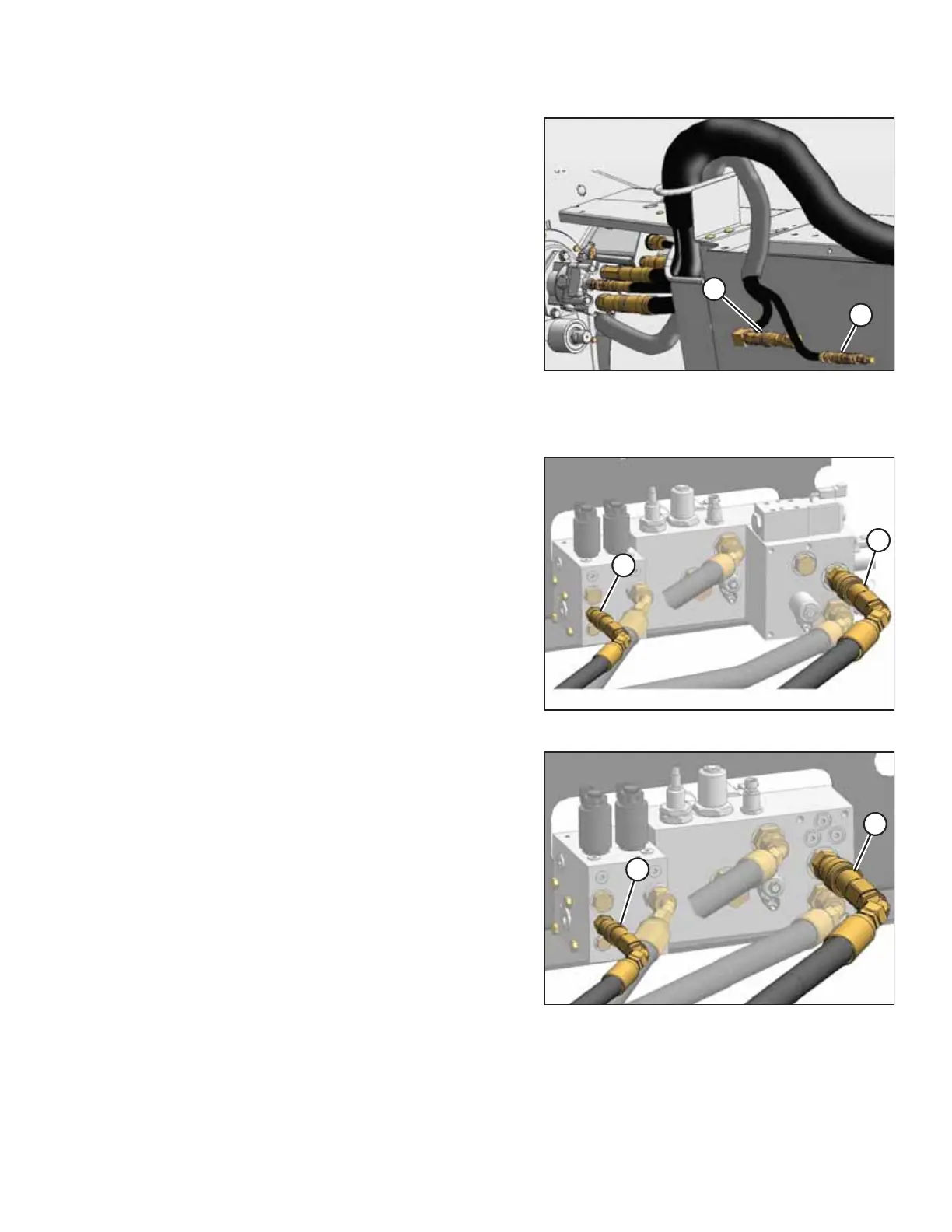

Figure 3.87: Auger Pressure and Auger/Reel Return
Hose Couplers – 4.9 m (16 ft.) Header Shown,
5.5 m (18 ft.) Header Similar
17. Locate auger pressure (A) and auger/reel return (B) hoses.
1005276
A
B
Figure 3.88: M200 with Reverser Valve
1005277
A
B
Figure 3.89: M200 without Reverser Valve
18. Push auger pressure (A) and auger/reel return (B) hose
couplers onto mating receptacles on manifolds until collar
on receptacle snaps into lock position.
19. Proceed to 3.14 Routing Reverser Manifold Jumper Hose –
M Series Windrower, page 65.
ASSEMBLING THE MACHINE
