262335 50 Revision A

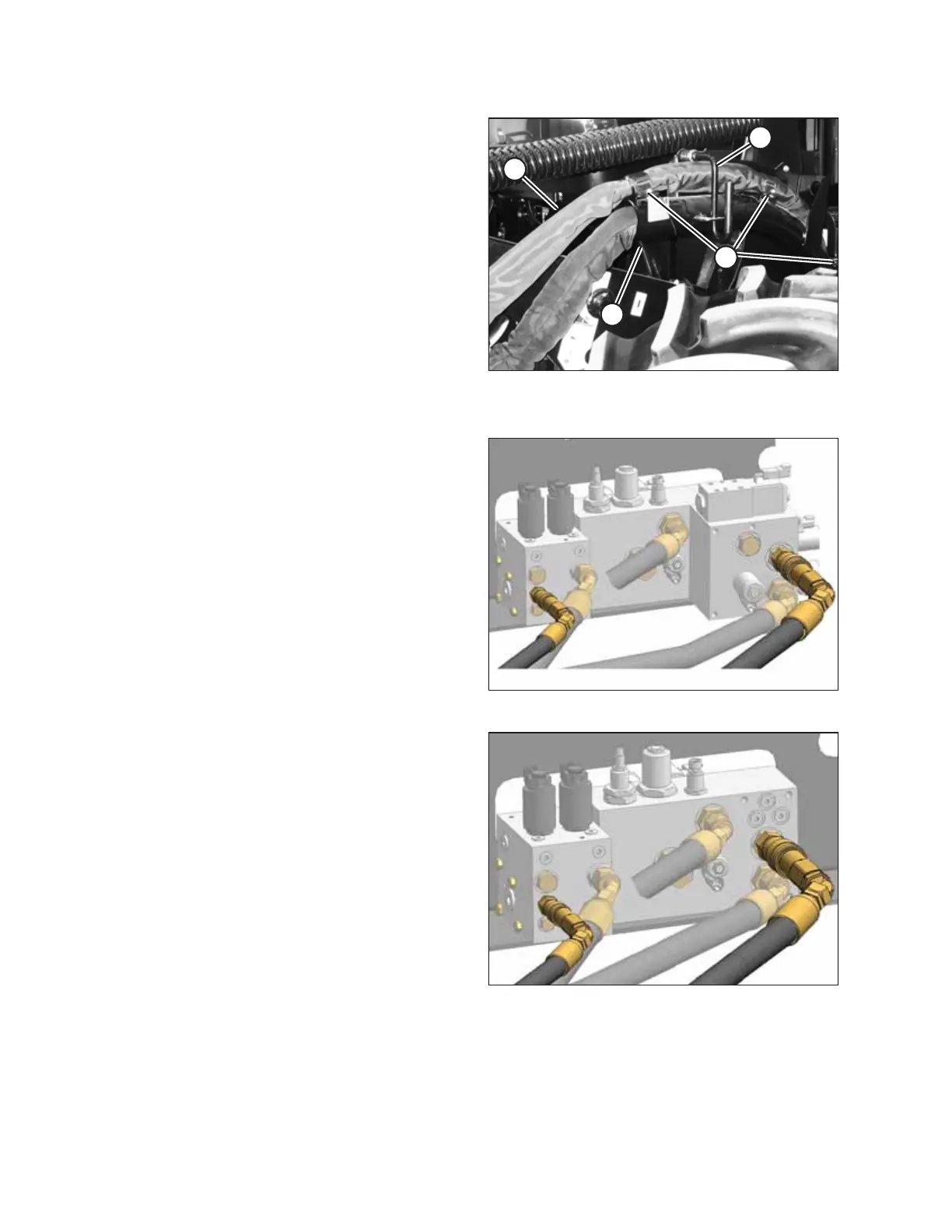

Figure 3.84: Auger Return and Reel Pressure
Hose Bundle
14. Route auger return/reel pressure hose bundle (A) from the
header to the windrower, and position the bundle above
existing hose support (C) as shown.
15. Secure the bundle with three straps (D), and lower
lever (B).
Figure 3.85: M200 With Reverser Valve
Figure 3.86: M200 without Reverser Valve
16. If manifolds are NOT configured as shown, refer to the
relevant procedure for your windrower:
• 3.13.3 Modifying Hydraulics – M200 Windrower with
Reverser Manifold, page 61
• 3.13.4 Modifying Hydraulics – M200 Windrower without
Reverser Manifold, page 62
ASSEMBLING THE MACHINE
