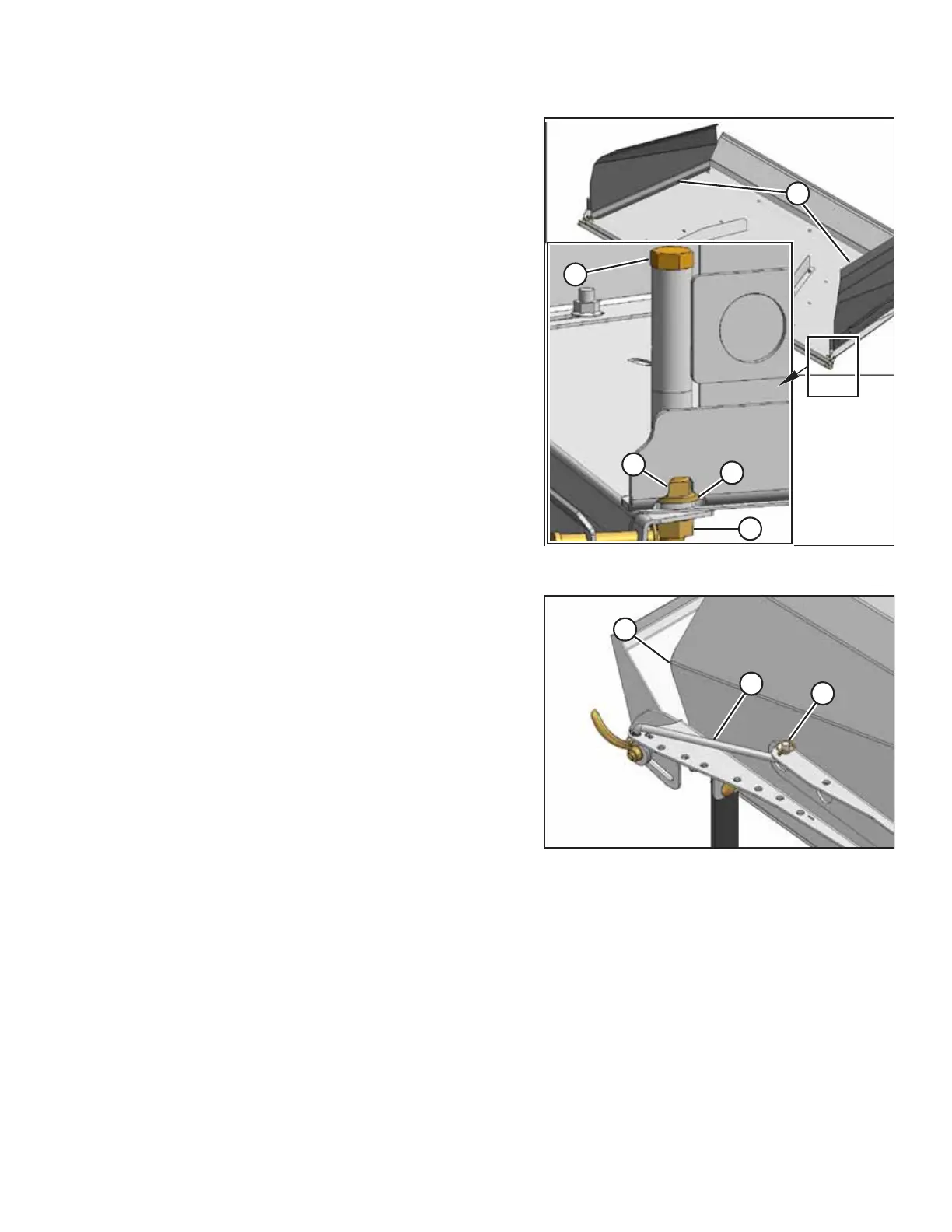

Figure 3.35: Side Deflectors
7. Assemble side deflectors (C) to cover with bolt (B), jam
nut (E), washer (D), and nut (A) from previous step.
8. Tighten flange nut (A) enough to hold deflectors (C) in
position, but still allow deflectors to move.
9. Tighten jam nut (E) against cover while holding bolt (B).
1005798
A
B
C
Figure 3.36: Adjuster Rod
10. Remove lynch pin (A) from adjuster rod (B) and locate rod
in hole in side deflector (C). Secure with lynch pin (A).
11. Repeat for the other deflector.
