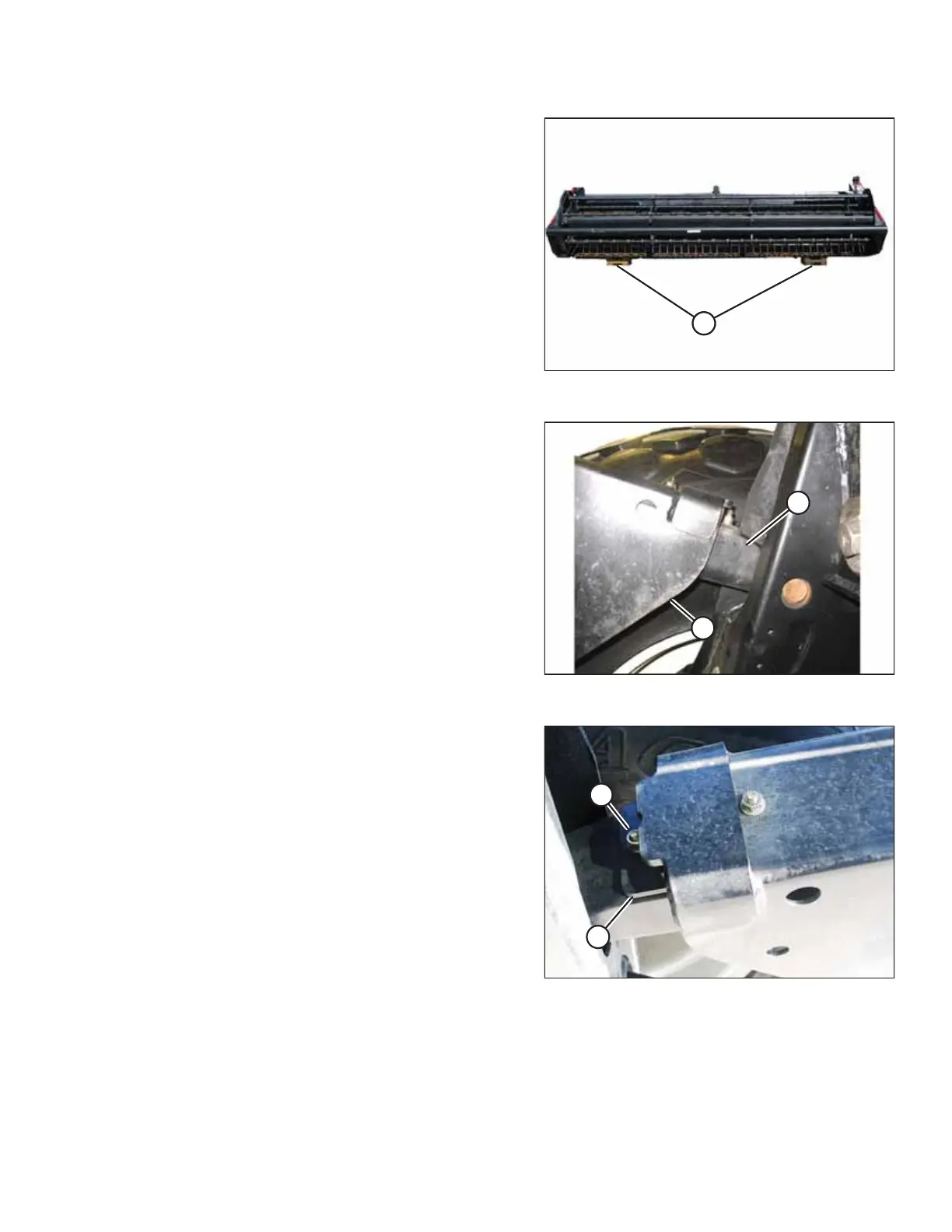

Figure 5.27: Header on Blocks
9. Place wooden blocks (A) under header cutterbar and legs.
1009268
A
B
Figure 5.28: Member and Link
10. Lower header onto blocks so that members (A) lift off of
links (B).
11. Shut down the engine, and remove the key from
the ignition.
1009270
A
B
Figure 5.29: Shims
12. Remove nut, washer, and bolt (A) that attach shims (B) to
link at the header high end.
13. Remove one or both shims (B) and reinstall the
hardware (A).
14. Start engine and raise header slightly. Check if the header
is level.
15. If additional levelling is required, install the removed shim
on the opposite linkage.
NOTE:
If required, additional shims (MD #110853) can be ordered
from your MacDon Dealer.
NOTE:
Float does NOT require adjustment after levelling header.
