If required, adjust the roll timing as follows:

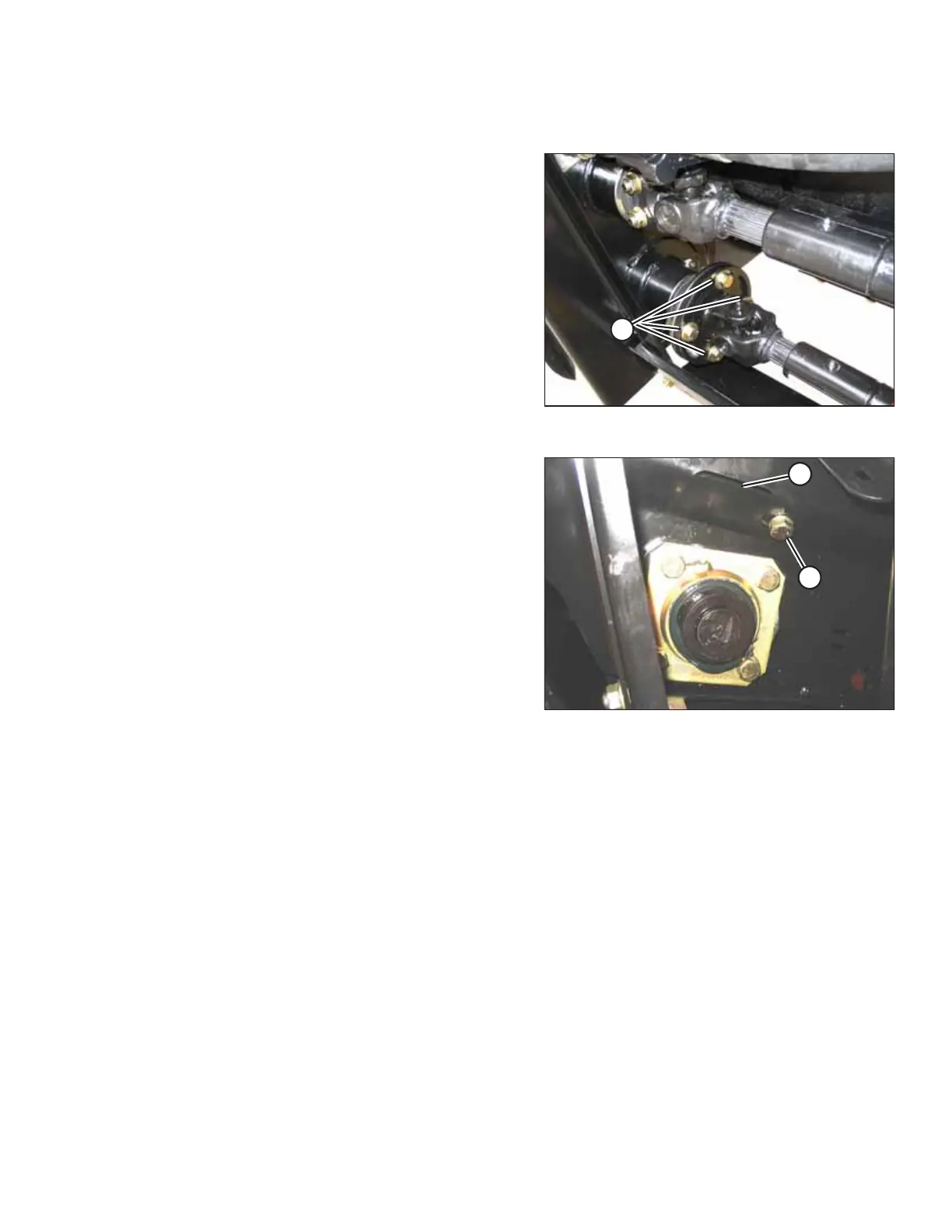

Figure 5.41: Roll Timing Adjustment Hardware
7. Loosen four bolts (A) in slots of yoke plate on lower roll
universal shaft.
8. Turn rolls to achieve best timing.
9. When roll timing is satisfactory, tighten bolts (A) to secure
the position.
Figure 5.42: Access Port – Covered
10. Reposition cover (A), and tighten bolt (B).
PERFORMING PREDELIVERY CHECKS
