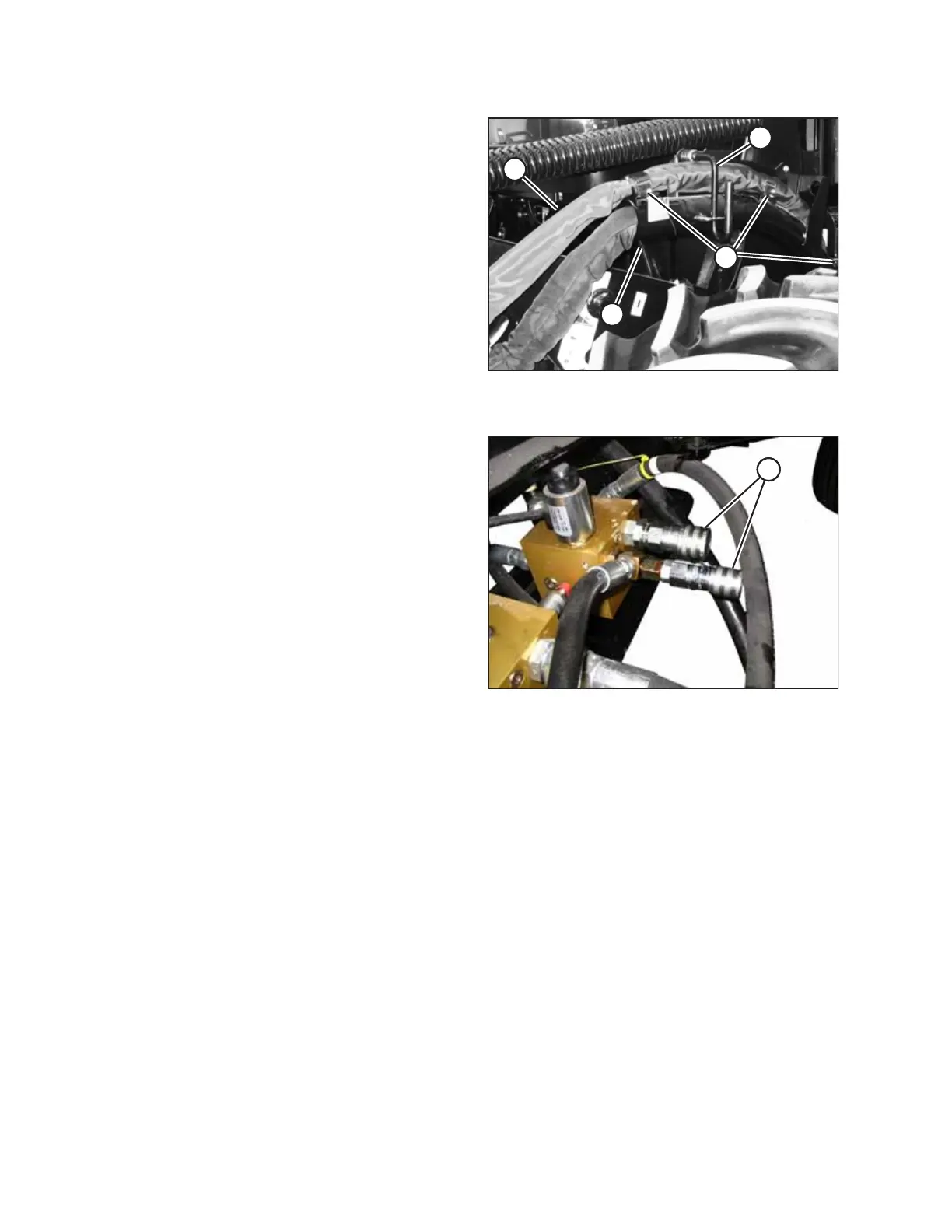

Figure 3.54: Auger Return and Reel Pressure
Hose Bundle
14. Route auger return/reel pressure hose bundle (A) from the
header to the windrower, and position the bundle above
existing hose support (C) as shown.
15. Secure the bundle with three straps (D), and lower
lever (B).
1013764
AA
Figure 3.55: Manifolds Configuration
16. If manifolds are NOT configured as shown (A), refer to
3.13.1 Modifying Hydraulics – M100, M105 Windrowers,
page 57.
