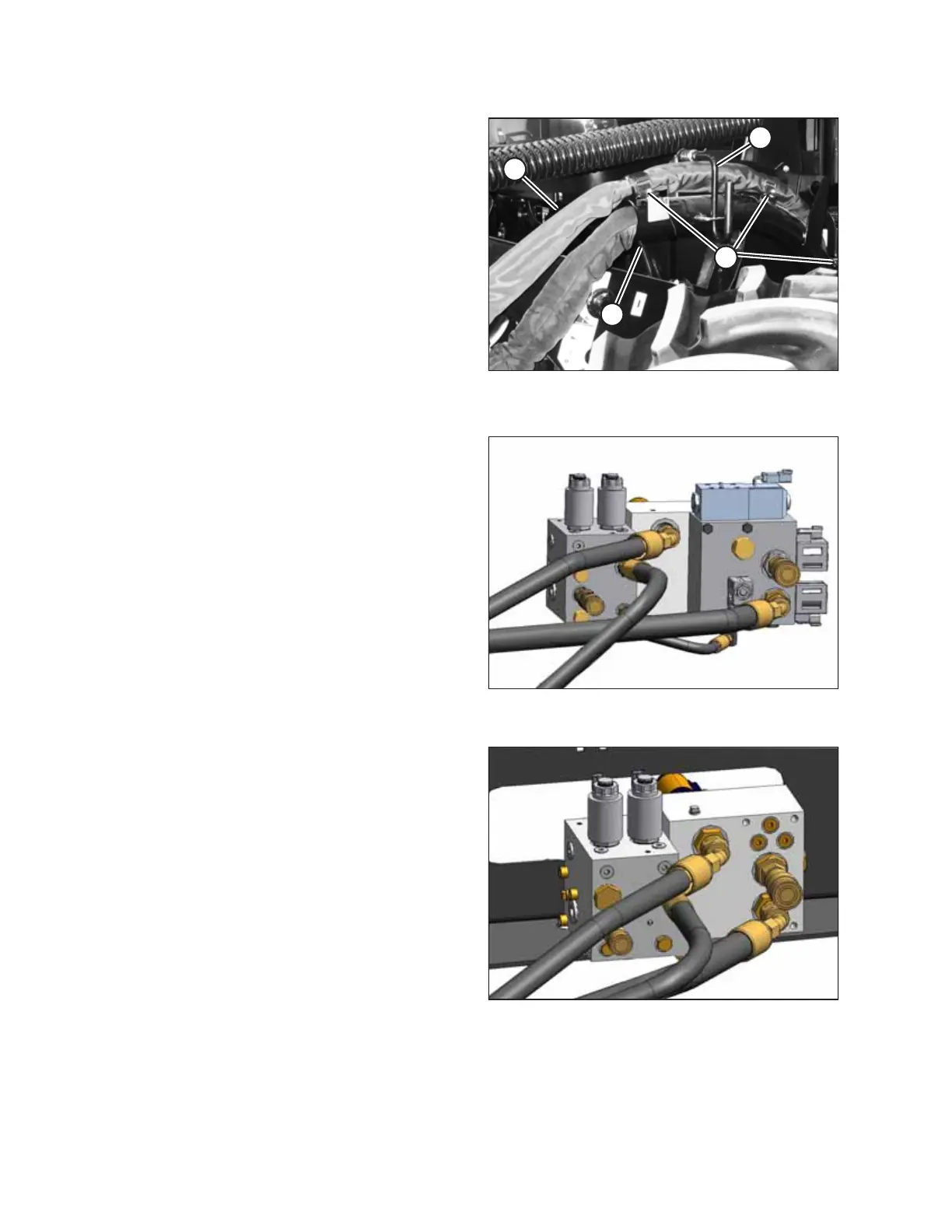

Figure 3.68: Auger Return and Reel Pressure
Hose Bundle
14. Route auger return/reel pressure hose bundle (A) from the
header to the windrower, and position the bundle above
existing hose support (C) as shown.
15. Secure the bundle with three straps (D), and lower
lever (B).
1013778
Figure 3.69: M150/M155/M155E4 with
Reverser Valve
1013779
Figure 3.70: M150/M155/M155E4 without
Reverser Valve
16. If manifolds are NOT configured as shown, refer to 3.13.2
Modifying Hydraulics – M150, M155, M155E4 Windrowers,
page 59.
ASSEMBLING THE MACHINE
