1. Shut down the engine, and remove the key from
the ignition.
1023840
A
B

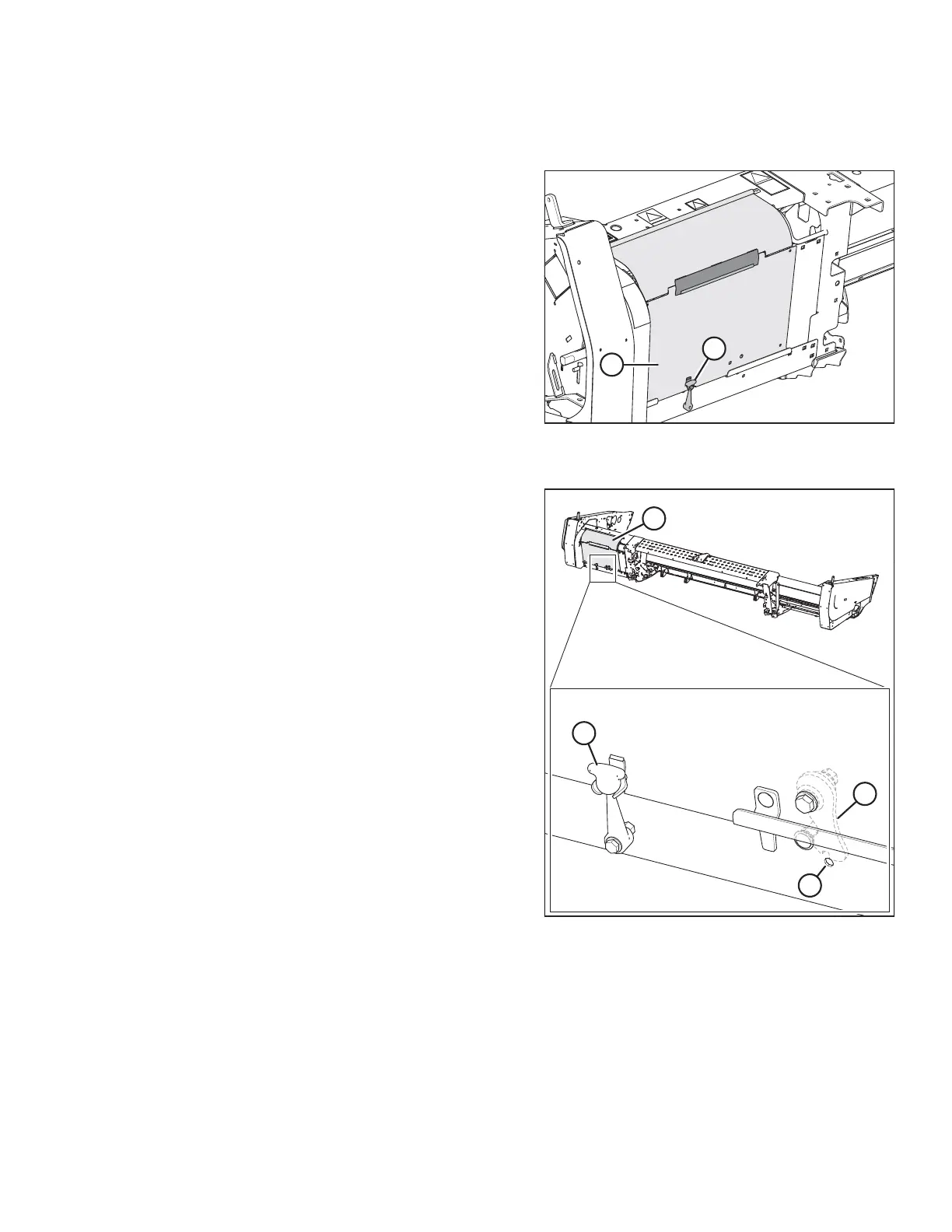

Figure 3.76: Driveshield – Headers Sold in North
America
2. Headers sold in North America: Disengage rubber latch (A)
and open driveshield (B).
1031267
A
B
C
D
Figure 3.77: Driveshield – Headers Sold outside North
America
3. Headers sold outside North America: Insert a tool into
hole (A) and pry to release latch (B). Disengage rubber
latch (C) and open driveshield (D).
