MacDon FlexDraper FD130 - Page 111

214683 87 Revision A
1024169
C
B
A

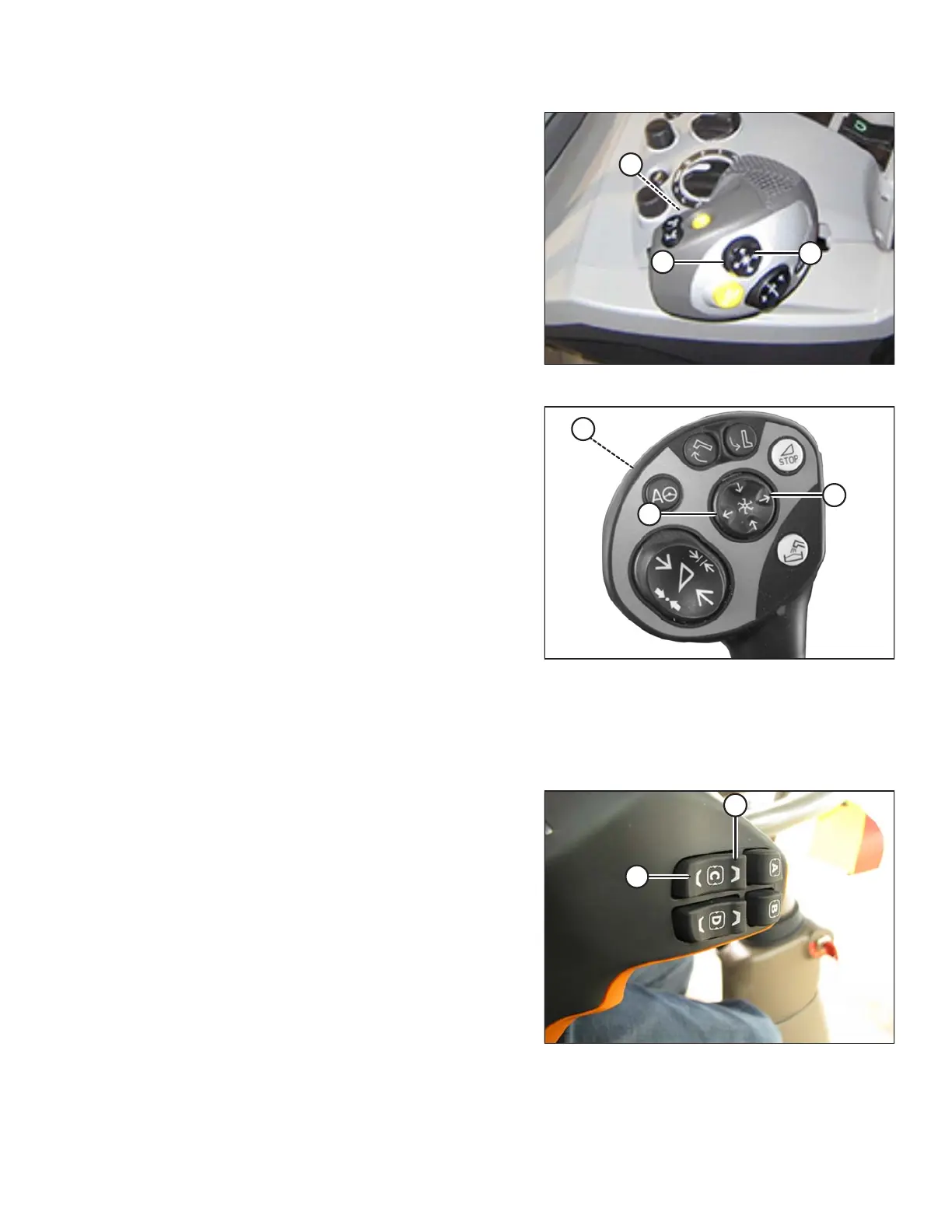

Figure 3.86: CLAAS 600/700 Control Handle
1024348
C
B
A
Figure 3.87: CLAAS 500 Control Handle
2. Press and hold switch (A) on rear of control handle.
3. Press switch (C) to tilt header forward (steeper angle)
or switch (B) to tilt header back (shallower angle).
John Deere combines:
John Deere S700: S700 Series combines use a feeder house deckplate tilting system for header fore-aft
adjustment, instead of using the MacDon center-link for header tilt.
1023956
A
B
Figure 3.88: John Deere 700 Control
1. Press switch (A) to tilt header forward (steeper angle) or
switch (B) to tilt header back (shallower angle).
OPERATION
