MacDon FlexDraper FD130 - Page 47

214683 23 Revision A

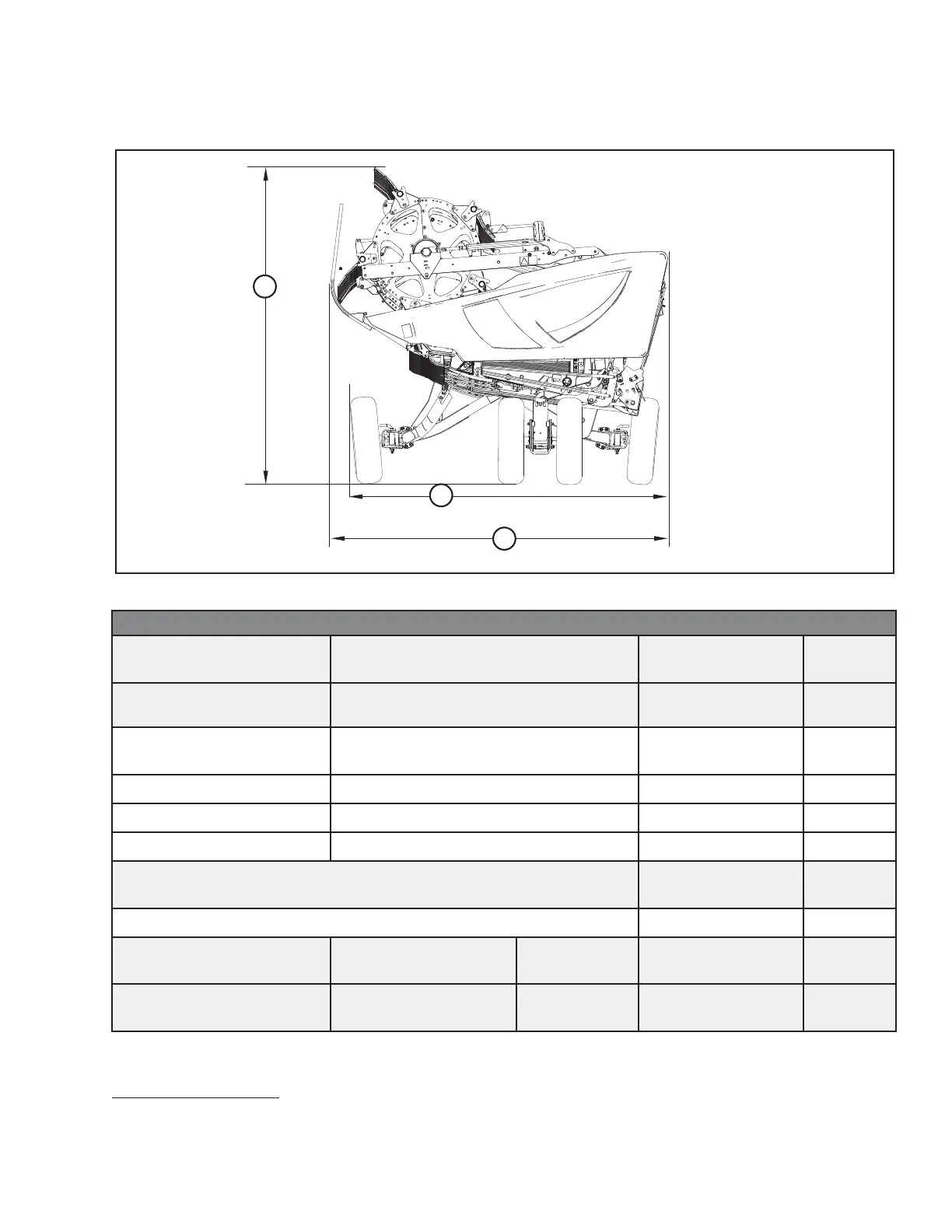

Figure 2.1: Header Dimensions
1025198
A
B
C
Table 2.2 Header Attachments
FM100 Float Module
Feed draper Width
2.000 m
(78-11/16 in.)
S
Feed draper
Speed
107–122 m/min
(350–400 fpm)
S
Feed auger Width
1.660 m
(65-5/16 in.)
S
Feed auger
Outside diameter 559 mm (22 in.) S
Feed auger Tube diameter
356 mm (14 in.) S
Feed auger
Speed (varies with combine model)
190 rpm
S
Oil reservoir capacity
75 liters
(20 US gallons)
S
Oil type
DURATRAN
™
—
Driveline overall length
2
Case, New Holland
Maximum
(extended)
1.230 m (48-7/16 in.) O
F
Driveline overall length
2
Case, New Holland
Minimum
(compressed)
603 mm
(23-3/4 in.)
O
F
PRODUCT OVERVIEW
2. Subtract 265 mm (10-7/16 in.) for length between yoke pins.
