Manitowoc 16000 Operator's Manual

Reference Only
OPERATING CONTROLS AND PROCEDURES 16000 OPERATOR MANUAL
3-24
Published 05-09-17, Control # 011-29
l
A02452

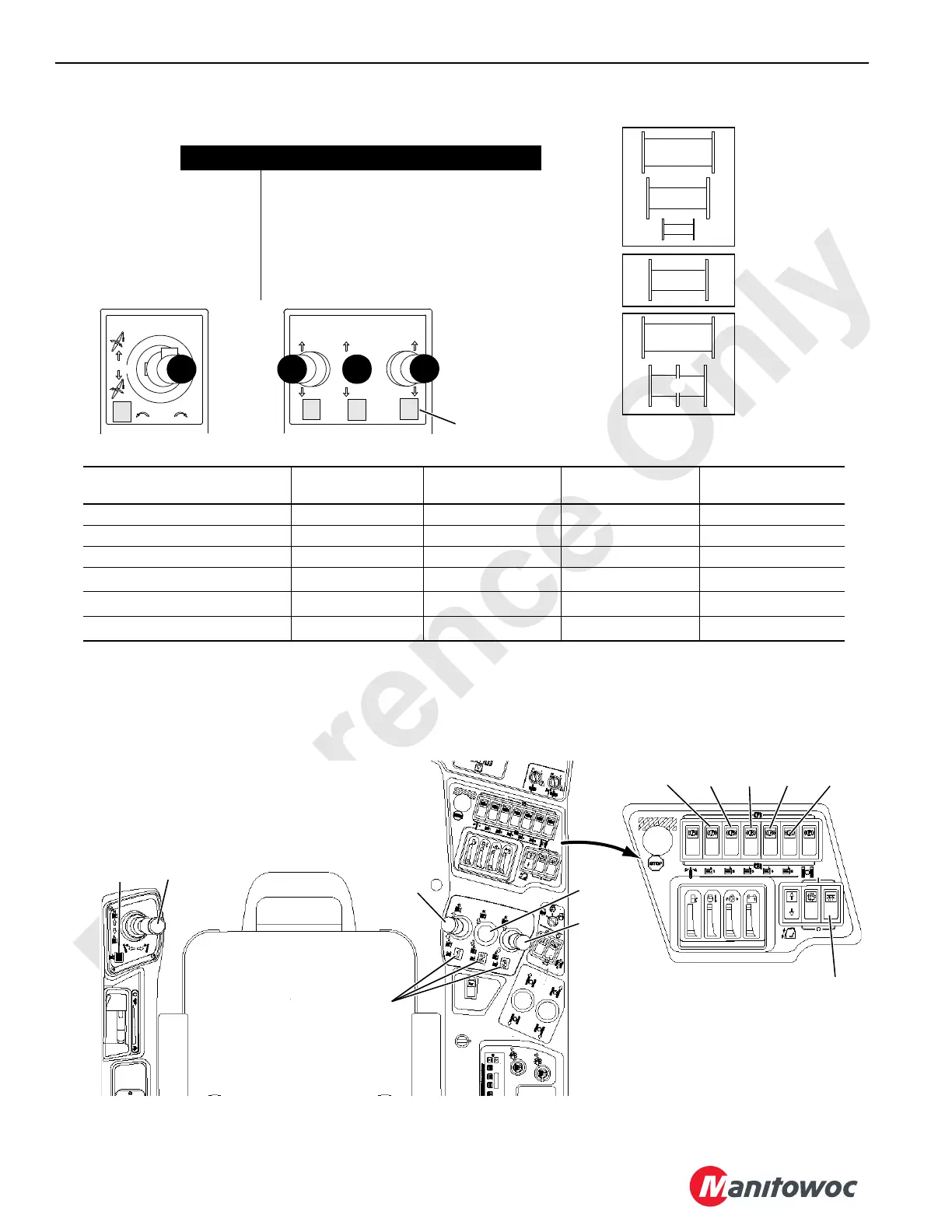

DRUM AND HANDLE IDENTIFICATION
Left Console
B
C
D
Handle Options (Note 1)
HANDLE A
Controls Drum
HANDLE B
Controls Drum
HANDLE C
Controls Drum
HANDLE D
Controls Drum
Standard 4 - Boom Hoist 1 - Load Hoist 2 - Load Hoist 3 - Load Hoist
Rigging Winch 0 - Rigging Winch 1 - Load Hoist 2 - Load Hoist 3 - Load Hoist
Luffing Jib (Note 2) 3 - Luffing Hoist 1 - Load Hoist 2 - Load Hoist 4 - Boom Hoist
MAX-ER
®
Setup
4 - Mast Hoist 1 - Load Hoist 2 - Load Hoist 5 - Boom Hoist
MAX-ER
®
(Note 3)
5 - Boom Hoist 1 - Load Hoist 2 - Load Hoist 3 - Load Hoist
MAX-ER
®
w/Luffing Jib (Note 3)
3 - Luffing Hoist 1 - Load Hoist 2 - Load Hoist
5 - Boom
Hoist
NOTE 1: Handle display lights show which drums are controlled by corresponding handles.
NOTE 2: Load/Luffing hoist (drum 3) and left travel are both controlled by the same pump. Only one system can be operated at
a time.
NOTE 3: In MAX-ER
®
configuration, boom hoist (drum 5) is operable and mast hoist (drum 4) is inoperable.
1
2
3
Handle Display Lights (4)
Right Console
Drum No.
Description
0 Rigging Winch (in boom butt)
1 Load Drum (in boom butt)
2 Load Drum
3 Load/Luffing Drum (in boom butt)
4 Boom/Mast Hoist
5
Boom Hoist - with MAX-ER
®
(in mast butt)
2
0
3
1
5
Boom Butt
Mast
with MAX-ER
®
only
Crane
FIGURE 3-14
4
E3
D5
Under Seat
F7
F4
F5
F6
E4
E1
F1
F2
F3
E2
D4
A
4
