Echo™ Software – Main Screen
F6 SMART™ – Volumetric Handheld Camera – User Guide
Chapter 7 Echo™ Software – Main Screen
Double clicking on the Echo™ icon, available on the workstation’s desktop (or its Quick
Launch Bar, pending parameters selected during installation; see page 29 above), will
launch the Echo™ software application.

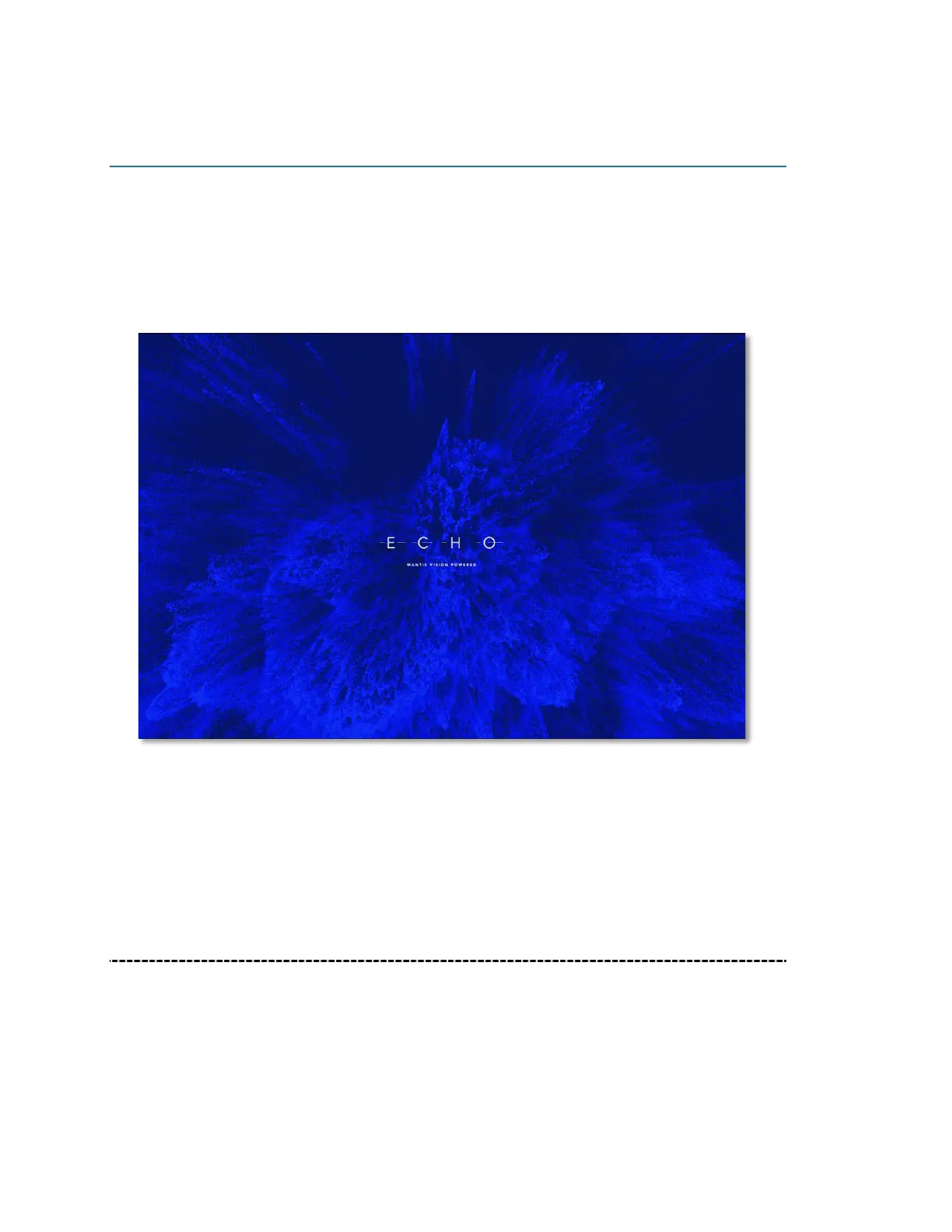

The Echo™ is always launched with the Splash Screen presented in Figure 31 below:
Figure 31 – The Echo™ “Cover Page” Screen
The Splash Screen will be automatically followed by the Echo™ Main Screen which will
open, by default, in the Gallery View mode (see paragraph “Main Screen – Gallery View”
on page 46 below).
Foreword
The Echo™ Main Screen is the focal point for all scanning and editing operation of the
whole system. The Echo™ software’s navigation is performed by selecting one of the
three menu items (Command-Buttons) available in the Main Menu Bar:
● The Main Menu, ● The Scan View, ● The Gallery View
