By suitable choice of the length and shape of this wedge, the overall curvature of the exiting wavefront is accurately and
specifically optimised to meet our new wavefront curvature criteria – neither flat nor excessively curved.
* Patent Application WO2007054709
FIR Crossovers
Like all three-way systems, MLA’s low, mid and high frequency sections are combined by a crossover. Up to now, Linkwitz-Riley,
4th order filters have been the industry standard. With traditional filters like these, overlap at crossover can result in a non-
symmetrical horizontal polar pattern if the devices being crossed-over are side by side.
In the theoretical opposite extreme, a brick-wall filter would completely eliminate overlap, and the polar pattern would be
unaffected and symmetrical.

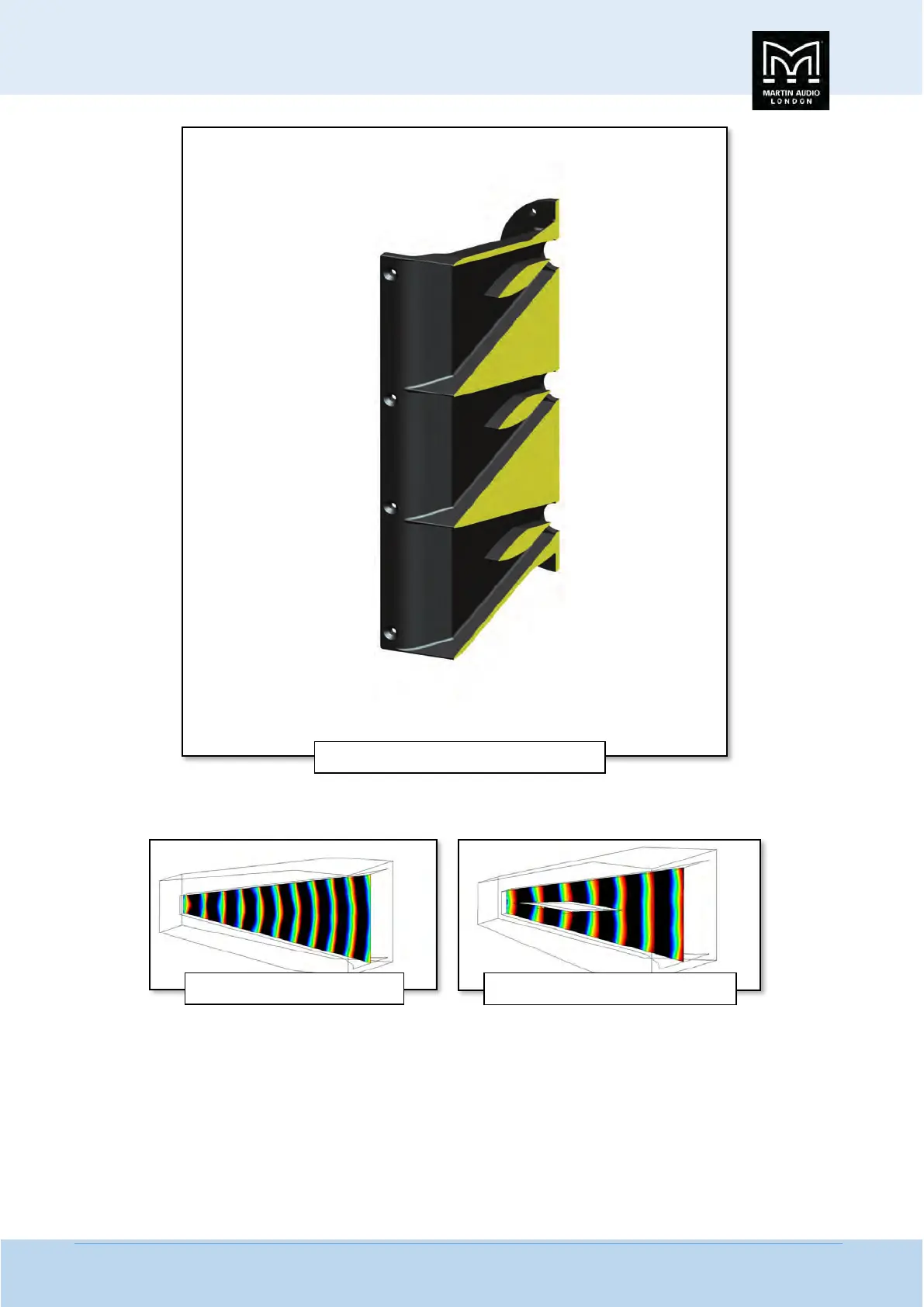

HF array cutaway showing “wedge"waveguide
Conventional horn, curved wavefront
MLA horn with wedge, optimised curvature
