MLA System USER GUIDE
MLA System User Guide V2.1 248
Device Discovery MLA Mini
Device Discovery for MLA Mini is a little more involved as it is necessary to determine the deployment to ensure that the amplifier
module is correctly configured, particularly between ground stacked and flown options as the software compensates for the fact
that the cabling is done in different directions; for flown systems the cables attach from above so the longest NL4 on the Speaker
cable loom going to the lowest cabinet, the opposite is true for ground stacked systems where the speaker loom comes from
below with the longest NL4 reaching the upper-most cabinet.
Here is a small MLA Mini system with a pair of MSX Subs and 8 MLA Mini. We have connected via the USB connection on one of
the MSX and the two are linked together with U-Net cables;-

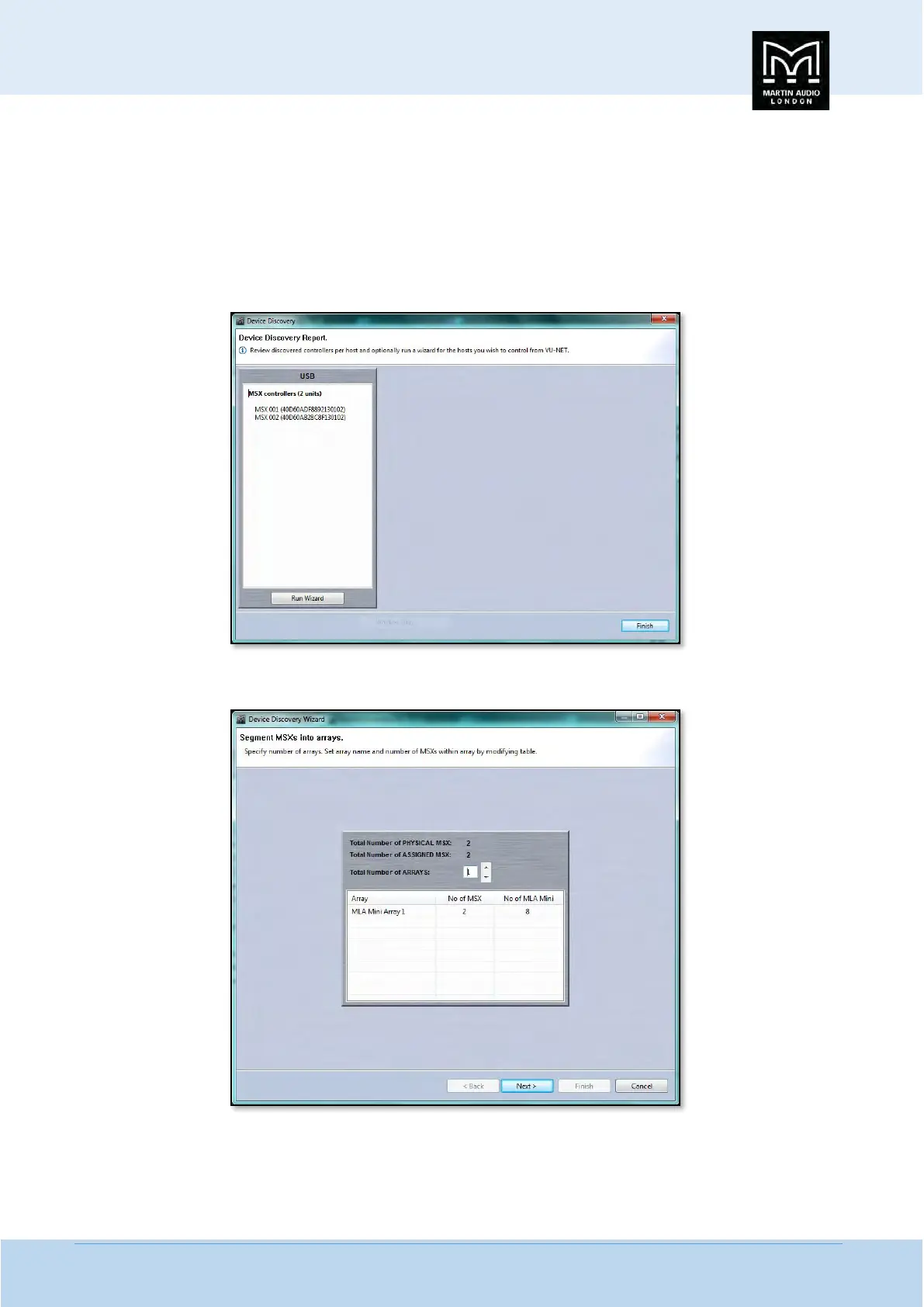

If we click on 'Run Wizard' we see the following Window;-
The first task is to determine how many arrays are deployed. By default Display assumes a single array comprising all of the MSX
discovered, if the system is actually stereo for example we need to select 2 in the 'Number of ARRAYS' box;-
