MLA System USER GUIDE
MLA System User Guide V2.1 286

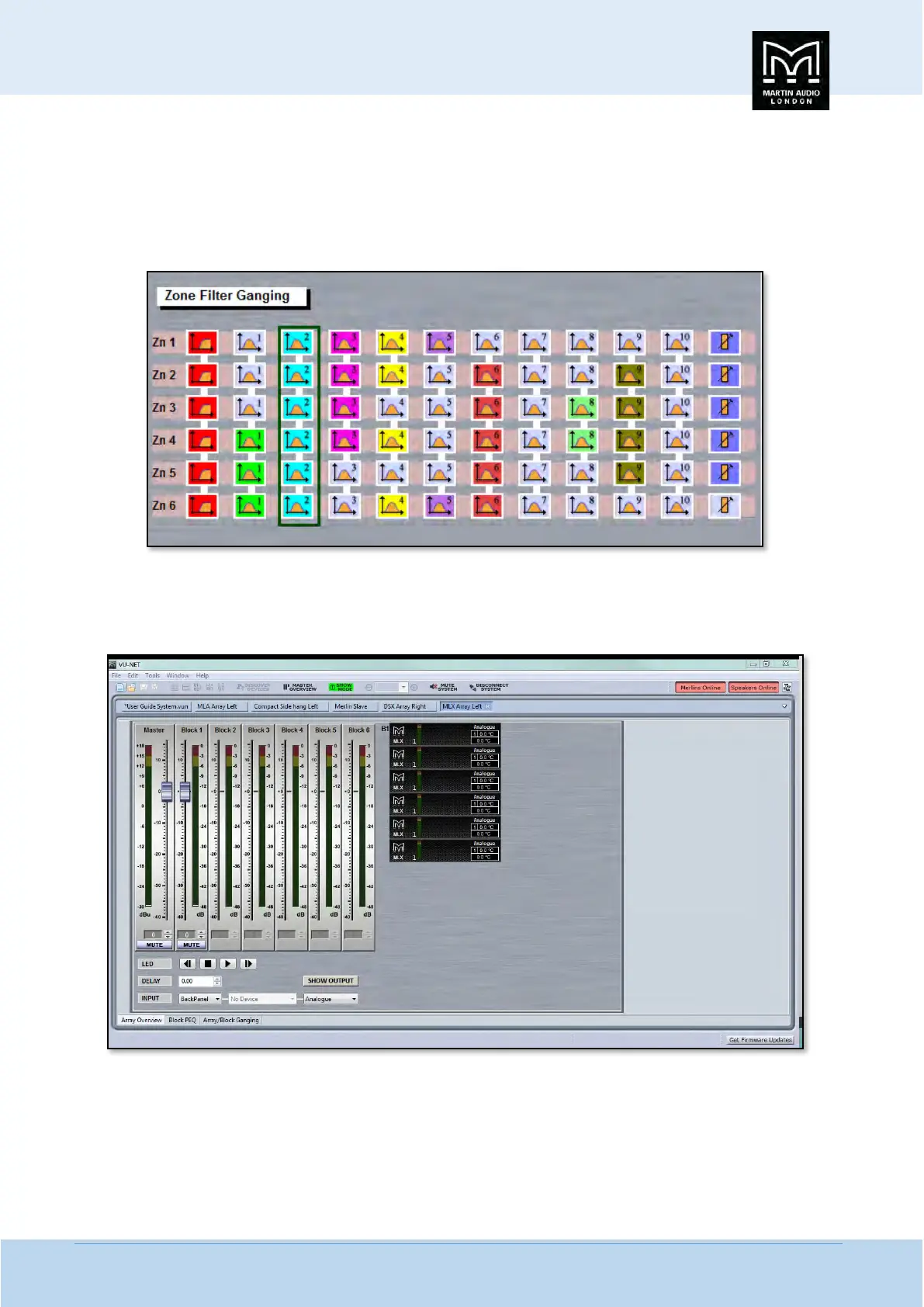

Zone Filter Ganging
The final ganging option is Zone Filter ganging. Unlike all other ganging options, this only affects parameters in a single array. It
cannot therefore be used if any of the other higher-level gangs across several arrays have already been used although it can be
if X-Array Filter Ganging has been used but not on any of the parameters that are already in an X-Array group. Once again you
have ten independent gangs to choose from, completely unaffected by any of the groups used to gang other arrays or zones. As
few as two zones or all six if that is how many zones are present. Note that this example is VERY extreme!
MLX & DSX Arrays
MLX and DSX share many similar features to MLA, MLD and MLA Compact and are virtually identical to each other with regards
to Vu-Net operation. Double clicking on a six box MLX array brings up this window;-
And DSX looks like this;-
