MLA System USER GUIDE
MLA System User Guide V2.1 344
The delay on Output one will always match what is entered, the other three outputs will always match output one plus their
individual delay. Linking works in identical fashion to output channels.
Ganging

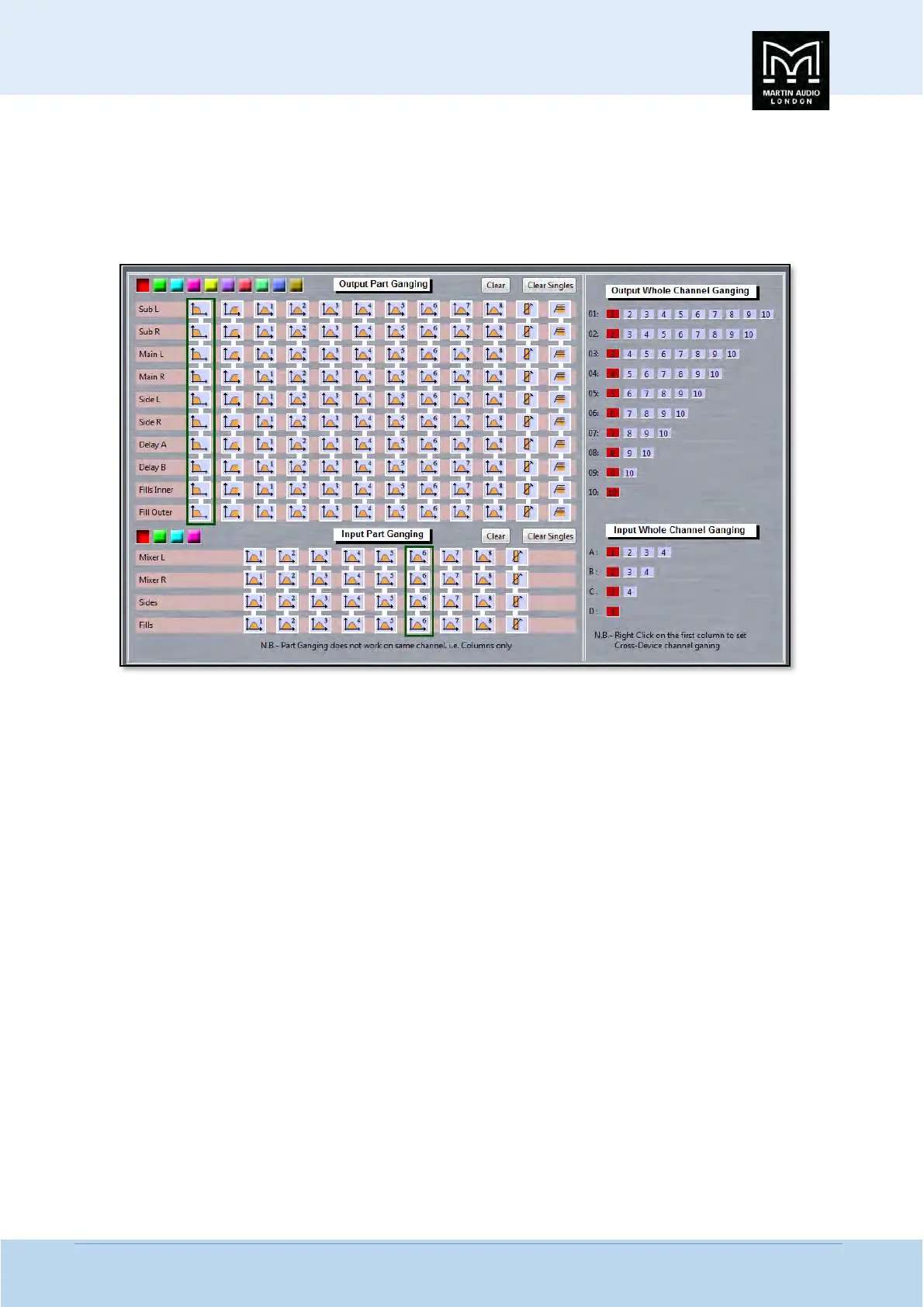

The Merlin has an extremely comprehensive ganging capability accessed from the Ganging tab. The Ganging window appears
like this;
There are three types of ganging available, whole input and output ganging, Part input and output ganging and cross device
ganging which enables you to mirror the parameters programmed into one Merlin across one or more other Merlins on the same
U-Net network. Ganging duplicates the settings on ganged channels or parameters. There is no “Master"and “Slave"system
parameters can be adjusted on any channel, parameter or device and any ganged channel will match the setting.
Whole Input / Output Ganging
This is dealt with by using the panel on the right hand side of the window;-
