MLA System USER GUIDE
MLA System User Guide V2.1 388

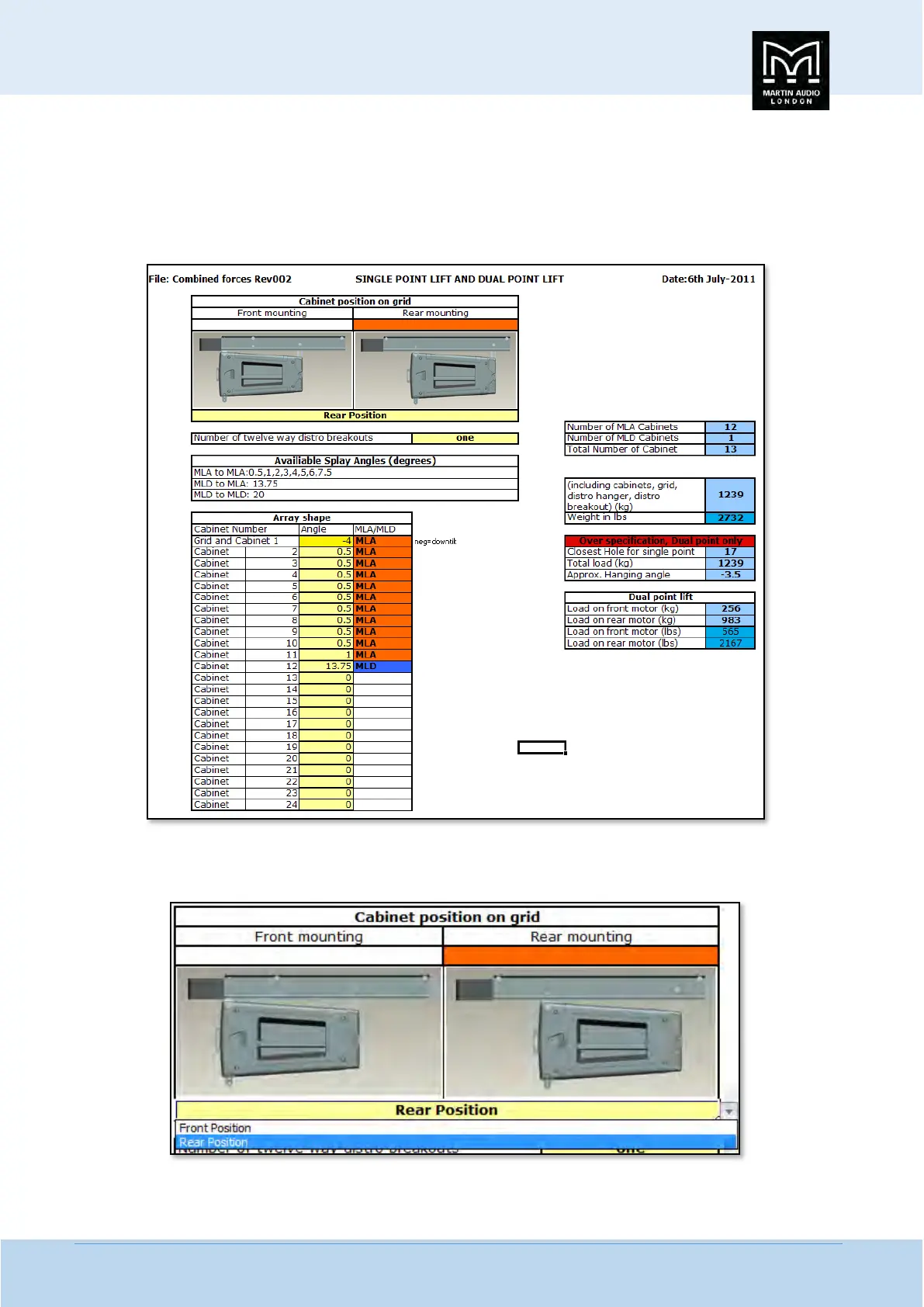

MLA Pick Load spreadsheet
As Display 2.1 does not yet offer rigging information, a simple spreadsheet rigging calculator is available to predict loading for
single and tow point hanging of an array. The mechanical deployment of the system is entered and detailed information for the
loading on each point is displayed. There is also a guide to ground stacking.
The Input tab is where all details are entered. Opening the spreadsheet looks like this;-
The first option is to choose front or rear mounting on the MLA Flying Grid. All data entry is done on the cells coloured light
yellow. Click on the “Position"cell and a drop-down is available to select Front or Rear;-
