MLA System USER GUIDE
MLA System User Guide V2.1 340

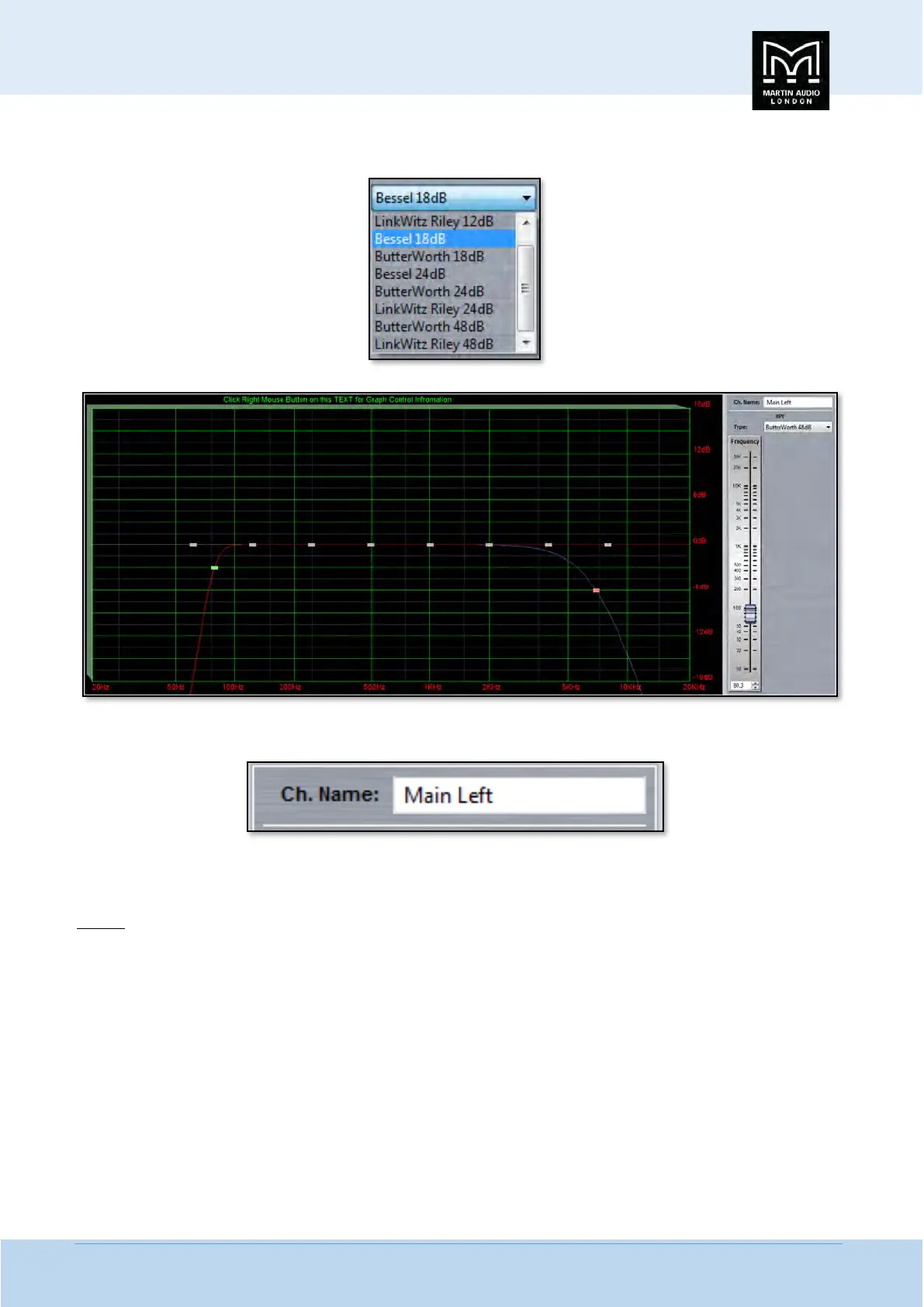

The High and lowpass filters can be configured as either Bessel, Butterworth or Linkwitz Riley types with slopes of either 12, 18,
24 or 48dB per octave (48dB/oct is only available on Butterworth or Linkwitz Riley);-
As with the input channels, the output channel name can be edited on the Channel pages;-
Delay
The delay window offers a sophisticated system for controlling time alignment if all systems routed via the Merlin. The maximum
through delay from input to output is 1 second so for example you can add 999.99ms to an output but then you will not be able
to add any delay to the input and vice versa, or you could have up to 500ms on the input and the same on the output.
It is important to note that if you make any changes to routing after you have set delays, all delays on a re-routed channel will
be reset to zero.
This is how the routing window appears;-
