MLA System USER GUIDE
MLA System User Guide V2.1 48
Connections

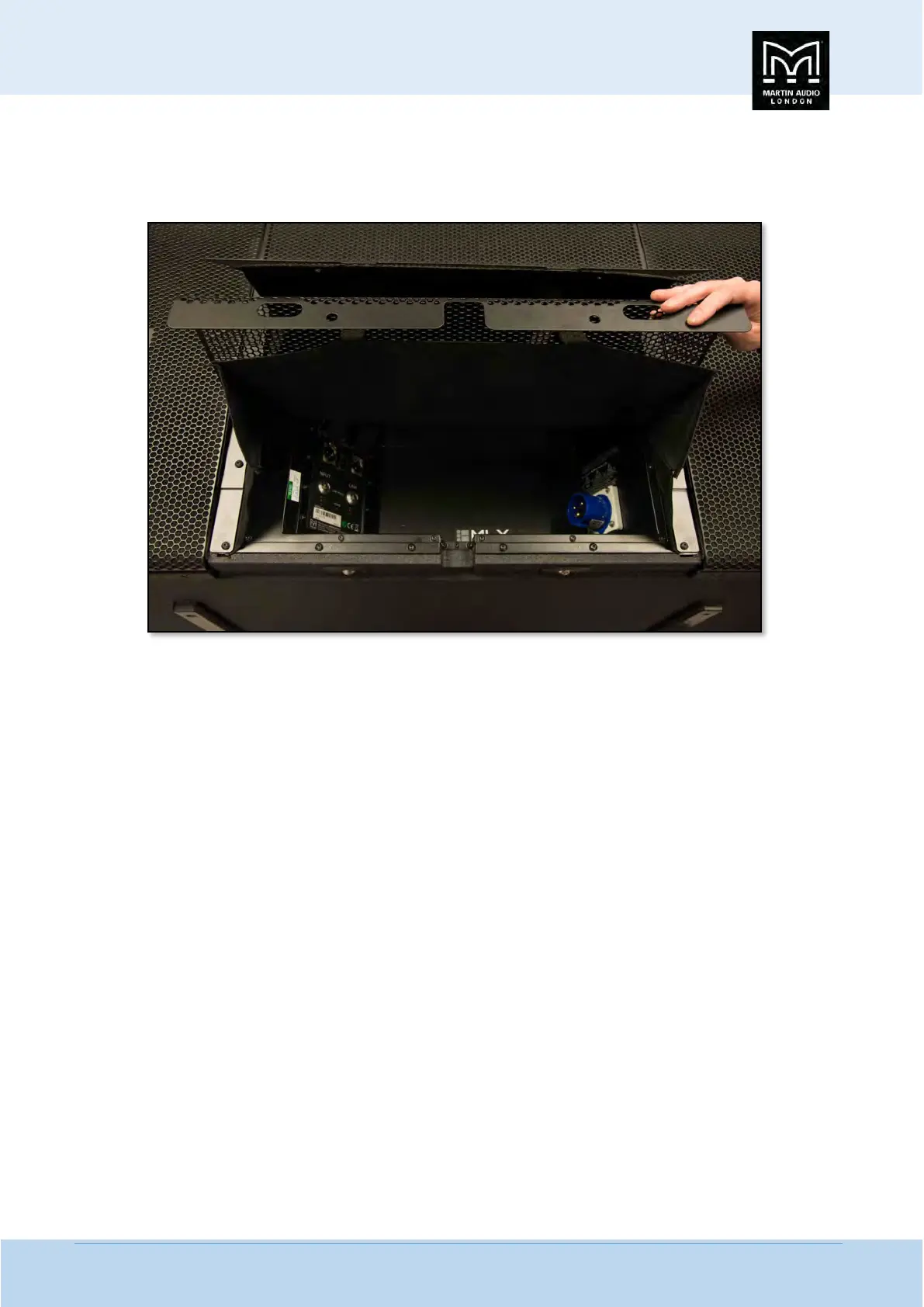

All connections to the MLX are on the amplifier module and are accessed behind the connection cover which hinges upwards to
facilitate connecting all cables. There is an exit space in the middle of the cabinet at the bottom to allow the cables to be neatly
run into the cabinet with the cover closed.
Mains
The MLX mains inlet is located on the right of the amplifier module a standard 16A Male 230V single phase IP44 rated Ceeform
inlet connector. A comprehensive mains distribution system is supplied with the MLA systems which features female outlets
rated at IP67.
